Product Model

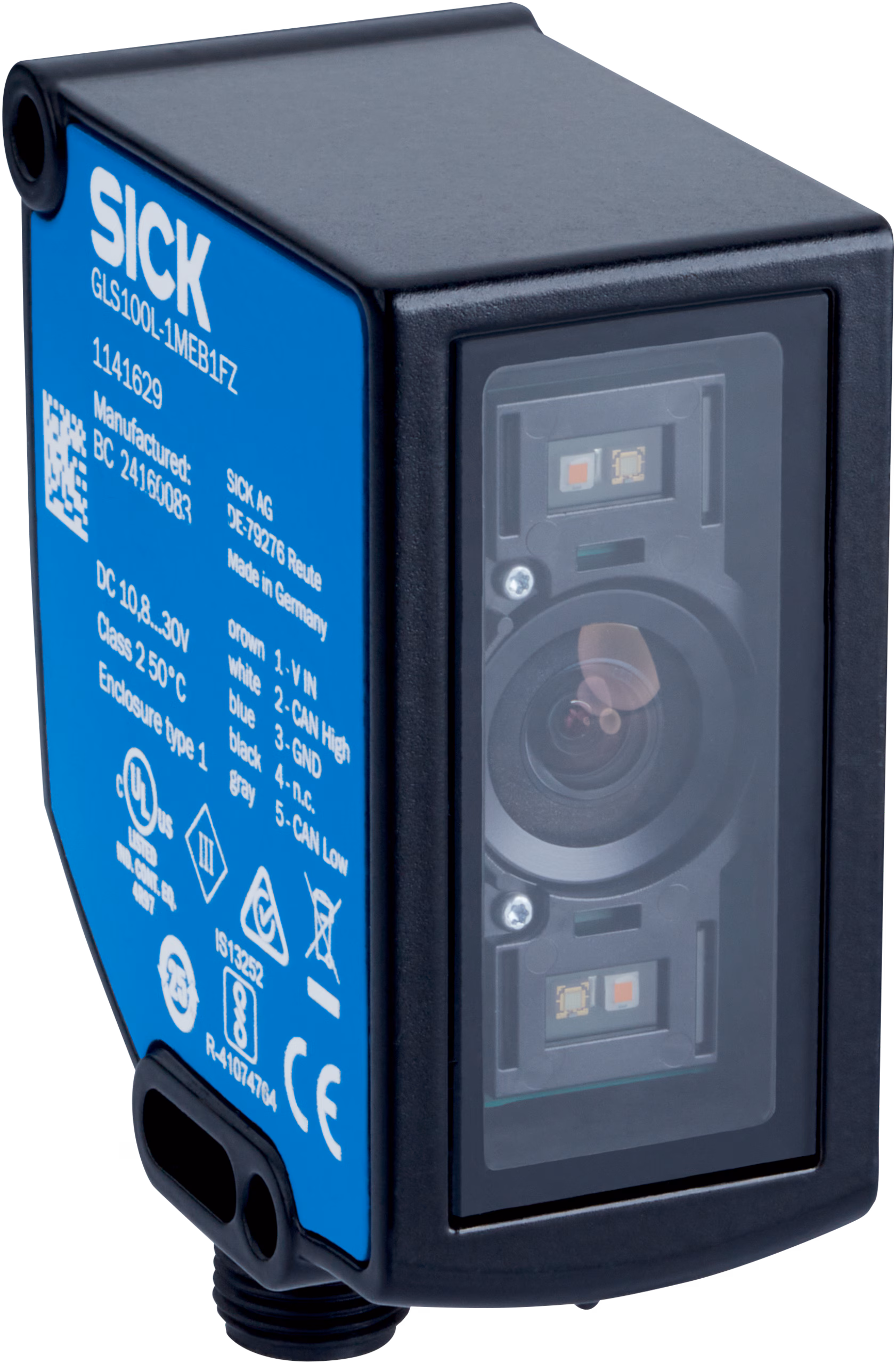

GLS100L-1MEB1FZ
Selling Points
- 1± 0.1 mm repeatability and ± 0.1° angular accuracy for precise code reading.
- 2Supports Data Matrix ECC200 and other 2D code types.
- 3IP65-rated enclosure for durability in harsh environments.
- 4Overrun speed of ≤ 3.5 m/s for efficient scanning.
- 5Dimensions (L x W x H) 31 mm x 62 mm x 31 mm, weighing 250 g.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Optical focus | 100 mm fixed focus | LED class | Free group (IEC 62471:2006-07, EN 62471:2008-09) |
Light source | Internal lighting, 2 x LED, Visible, Amber, 590 nm, ± 80 nm#!#Internal lighting, 2 x LED, Visible, cyan, 500 nm, ± 40 nm | Reading distance | 100 mm |
Overrun speed | ≤ 3.5 m/s | Repeatability (position) | ± 0.1 mm |
Angular accuracy (azimuth) | ± 0.1° | Connection type | 1 x M12, 5-pin male connector |
Supply voltage | 10.8 V ... 30 V | Power consumption | < 3 W |
Housing material | Zinc diecast | Housing color | Light blue (RAL 5012) |
Enclosure rating | IP65 (EN 60529, EN 60529/A2) | Protection class | III |
Weight | 250 g | Dimensions (L x W x H) | 31 mm x 62 mm x 52.5 mm |
Readable code structures | 2D | 2D code types | Data Matrix ECC200, QR code |
Code qualification | On the basis of ISO/IEC 16022, ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 18004 | CANopen_Data transmission rate | 50/125/250/500/1,000 kbit/s |
Optical indicators | 2 LEDs (1 x voltage supply, 1 x code read) | Connection type | Connector M12, 5-pin, A-coded |
Pinouts_BN 1 | V IN | Pinouts_WH 2 | CAN HIGH |
Pinouts_BU 3 | GND | Pinouts_BK 4 | n.c. |
Pinouts_GY 5 | CAN LOW |
Specifications may be subject to change without notice
