Product Model

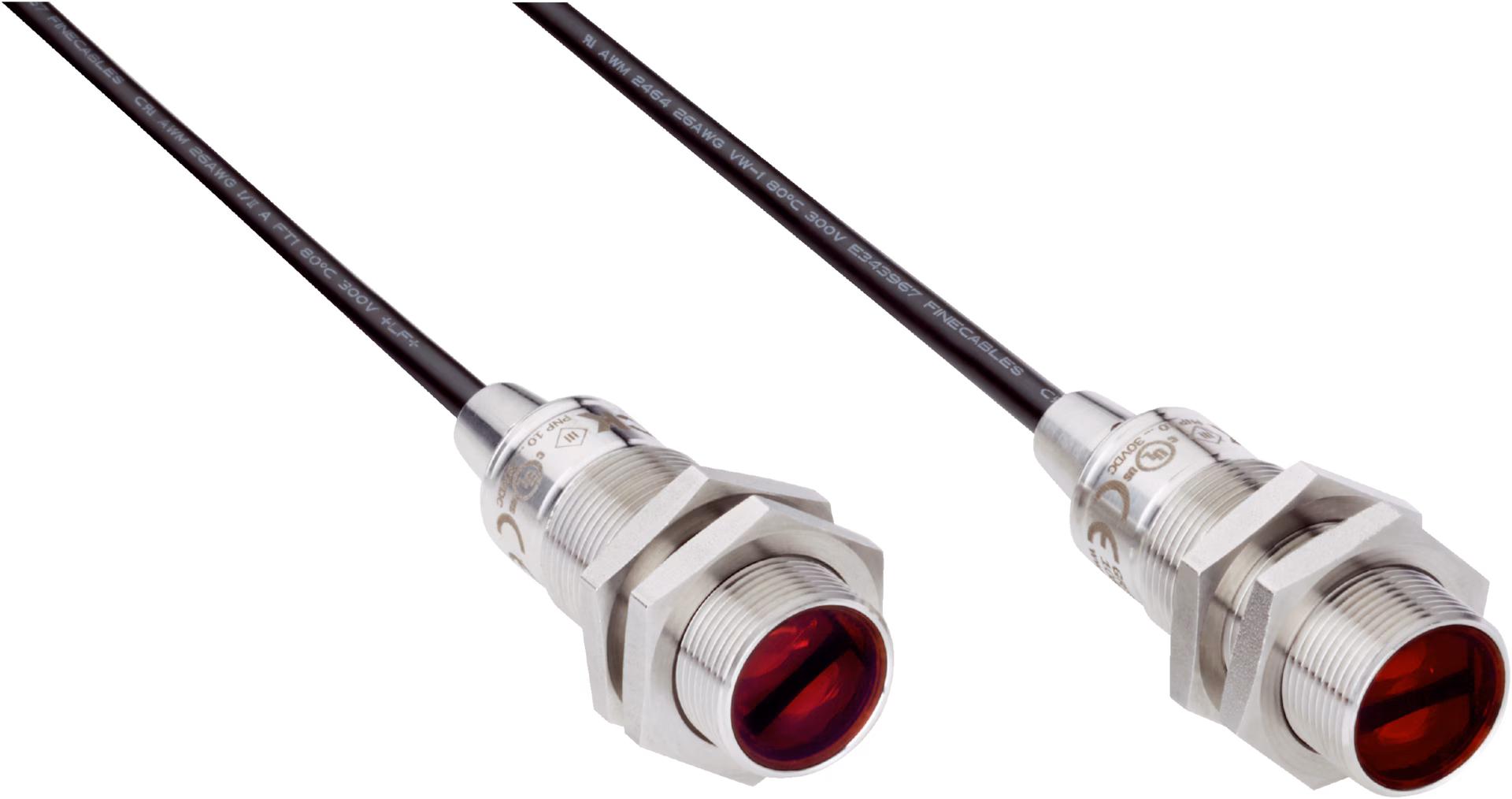

GRSE18S-N1121V
Selling Points
- 1High-performance through-beam photoelectric sensor with infrared light.
- 2NPN switching output for reliable signal transmission.
- 3Sensing range up to 15 meters for versatile industrial applications.
- 4Fast response time of less than 500 µs for quick detection.
- 5Durable construction with stainless steel housing and plastic cable.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Functional principle | Through-beam photoelectric sensor | Dimensions (W x H x D) | 18 mm x 18 mm x 55.9 mm |
Housing design (light emission) | Cylindrical | Housing length | 55.9 mm |
Thread length | 31.7 mm | Thread diameter (housing) | M18 x 1 |
Optical axis | Axial | Sensing range max. | 0 m ... 15 m |
Sensing range | 0 m ... 10 m | Type of light | Infrared light |
Light source | LED | Light spot size (distance) | Ø 420 mm (10 m) |
Wave length | 850 nm | Adjustment | None |
Indication_LED green | Operating indicatorStatic on: power on | Indication_LED yellow | Status of received light beamStatic on: object not presentStatic off: object present |
Special applications | Hygienic and washdown zones | Supply voltage UB | 10 V DC ... 30 V DC |
Ripple | < 5 V | Current consumption | 30 mA |
Switching output | NPN | Output function | Complementary |
Switching mode | Light/dark switching | Signal voltage NPN HIGH/LOW | Approx. V#!#/ ≤ 3 V |
Output current Imax. | ≤ 100 mA | Response time | < 500 µs |
Switching frequency | 1,000 Hz | Connection type | Cable, 4-wire, 2 m |
Cable material | Plastic, PVC | Conductor cross section | 0.14 mm² |
Cable diameter | Ø 4.8 mm | Circuit protection | A8)#!#B9)#!#D10) |
Protection class | III | Weight | 190 g |
Housing material | Stainless steel, Stainless steel V4A (1.4404, 316L) | Optics material | Plastic, PMMA |
Tightening torque, max. | 90 Nm | Enclosure rating | IP67#!#IP6811)#!#IP69K12) |
Items supplied | Fastening nuts (4 x) | Electromagnetic compatibility (EMC) | EN 60947-5-2 |
Test input | Sender OFF at "Test" 0 V | Ambient operating temperature | –25 °C ... +55 °C |
Ambient temperature, storage | –30 °C ... +75 °C | UL File No. | NRKH.E348498 & NRKH7.E348498 |
Part number of individual components | 2091201 GRS18S-D1121V 2091358 GRE18S-N1111V |
Specifications may be subject to change without notice
