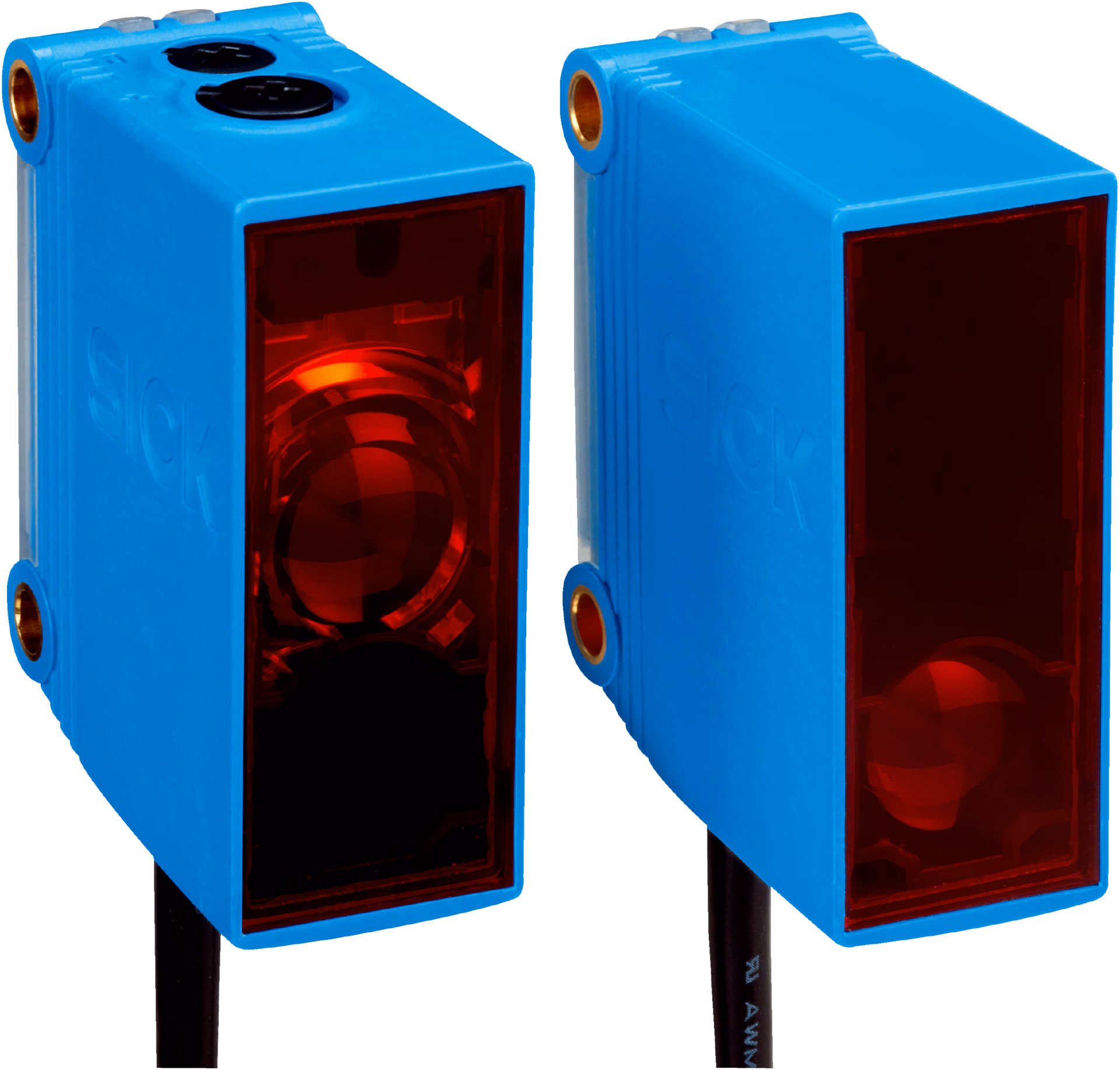

Product Model
GSE10-N1221
Selling Points
- 1Up to 2,000 mm for maximum operating reserves.
- 2Powerful background suppression ensures reliable detection of reflective surfaces and objects.
- 3Quick and flexible sensor installation with the Q-Lock assembly system.
- 4Supports DC or AC/DC power supplies (10 V DC – 30 V DC or 24 V AC/DC – 240 V AC/DC).
- 5Durable design with metal-reinforced holes and a service life of 100,000 hours at +25°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Functional principle | Through-beam photoelectric sensor | Dimensions (W x H x D) | 20 mm x 50 mm x 39 mm |
Housing design (light emission) | Rectangular | Sensing range max. | 0 m ... 40 m |
Sensing range | 0 m ... 35 m | Type of light | Infrared light |
Light source | LED | Light spot size (distance) | Ø 433 mm (15 m) |
Wave length | 850 nm | Adjustment | Potentiometer, 270° |
Supply voltage UB | 10 V DC ... 30 V DC | Ripple | < 5 V |
Power consumption, sender | ≤ 15 mA | Power consumption, receiver | ≤ 20 mA |
Switching output | NPN | Switching mode | Light/dark switching |
Switching mode selector | Selectable via light/dark selector | Output current Imax. | ≤ 100 mA |
Response time | ≤ 500 µs | Switching frequency | 1,000 Hz |
Connection type | Cable, 3-wire, 2 m | Cable material | Plastic, PVC |
Conductor cross section | 0.14 mm² | Circuit protection | A6)#!#B7)#!#C8)#!#D9) |
Protection class | III | Weight | 180 g |
Housing material | Plastic, ABS/PMMA | Enclosure rating | IP67 |
Electromagnetic compatibility (EMC) | EN 60947-5-2 | Test input | Sender OFF at "Test" 0 V |
Ambient operating temperature | –30 °C ... +60 °C | Ambient temperature, storage | –40 °C ... +70 °C |
UL File No. | NRKH.E348498 & NRKH7.E348498 | More standards | UL325 |
Specifications may be subject to change without notice
