Product Model

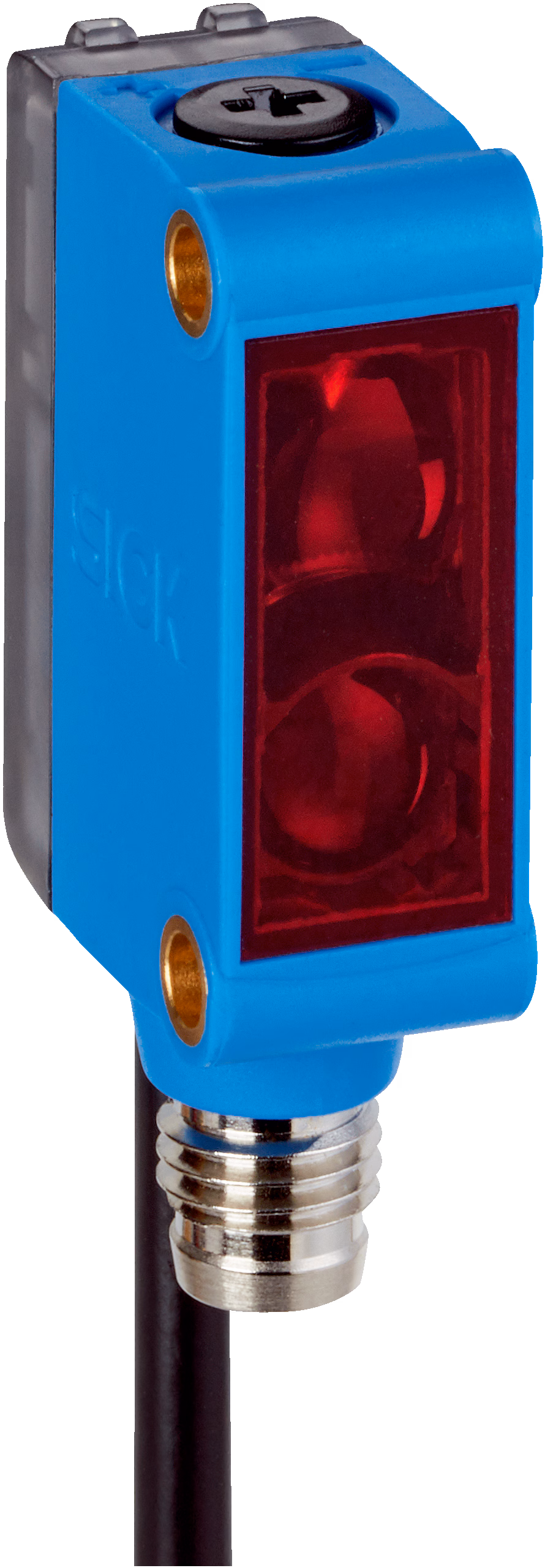

GTB6-CA011K00
Selling Points
- 1High precision photoelectric sensor with adjustable sensitivity via potentiometer.
- 2Robust IP65/67 protection against dust and water.
- 3Light spot size Ø 6 mm (100 mm) with a wavelength of 650 nm.
- 4Supply voltage via FlexChain (host) at 12 V.
- 5Compact dimensions (12 mm x 31.5 mm x 21 mm) for easy integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Device version | FlexChain Guest | Sensor principle | Photoelectric proximity sensor#!#Light grid system |
Light source | PinPoint LED, visible red light | Light spot size (distance) | Ø 6 mm (100 mm) |
Wave length | 650 nm | Supply voltage Vs | 12 V, via FlexChain (host) |
Adjustment | Potentiometer (Sensitivity) | Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
Connection type | Male connector M8, 4-pin, Cable with female connector, M8, 4-pin, 0.5 m | Housing material | Plastic (ABS) |
Enclosure rating | IP65, IP67 | Protection class | III |
Weight | Approx. 23 g | Operating range | 0.25 m |
Specifications may be subject to change without notice
