Product Model

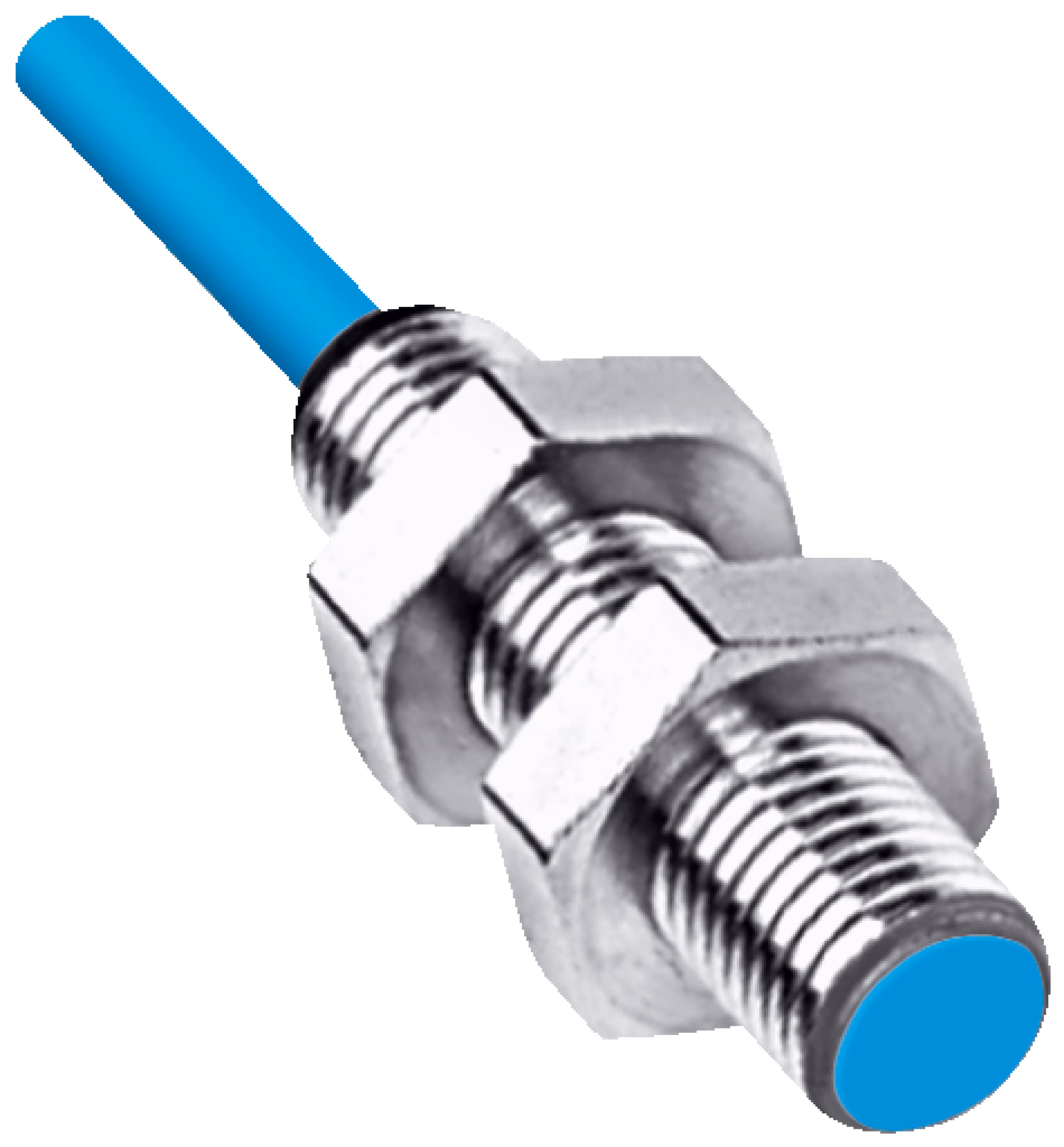

IM08-01B-N-ZW0
Selling Points
- 1Exceptional Protection in Explosive Areas: Designed for zones 0 and 1, providing Category 1G and 2G protection.
- 2High Precision Detection: Sensing range of 1 mm with a safe sensing range of 0.81 mm.
- 3Long Service Life: Robust construction with a switching frequency of 2,000 Hz.
- 4ATEX Certification: Compliant with PTB 03 ATEX 2037 for hazardous area applications.
- 5Durable Design: IP67 enclosure rating and shock/vibration resistance up to 30 g.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Housing | Metric | Thread size | M8 x 1 |
Diameter | Ø 8 mm | Sensing range Sn | 1 mm |
Safe sensing range Sa | 0.81 mm | Installation type | Flush |
Switching frequency | 2,000 Hz | Connection type | Cable, 2-wire, 2 m |
Switching output | NAMUR | Output function | NC |
Enclosure rating | IP67 | Special applications | Explosive areas |
Items supplied | Mounting nut, brass, nickel-plated (2x) | Supply voltage | 7.5 V DC ... 25 V DC |
Hysteresis | 1 % ... 15 % | Temperature drift (of Sr) | ± 10 % |
EMC | According to EN 60947-5-6 | Current consumption, sensor is activated | ≤ 1 mA |
Current consumption, sensor is not activated | ≥ 2.2 mA | Cable material | PVC |
Conductor size | 0.14 mm² | Cable diameter | Ø 3.5 mm |
Cable resistance | 50 Ω | Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
Ambient operating temperature | –20 °C ... +70 °C | Housing material | Brass, nickel-plated |
Sensing face material | Plastic, PTB | Housing length | 30 mm |
Thread length | 29 mm | Tightening torque, max. | ≤ 2.5 Nm |
Weight | + 94 g | Type approval certificate | PTB 03 ATEX 2037 |
Ex area category | 1G | Input voltage Uimax. | 15 V |
Input power Pimax. | 120 mW | Input current Iimax. | 50 mA |
Internal capacitance Cimax. | 80 nF | Internal inductance Limax. | 70 µH |
Nominal voltage | 8.2 V DC | Device labeling | II 1G Ex ia IIC T6 Ga Ta –20 °C ... +70 °C |
Note | The values are reference values which may vary | Stainless steel (V2A, 304) | Approx. 0.7 |
Aluminum (Al) | Approx. 0.4 | Copper (Cu) | Approx. 0.3 |
Brass (Br) | Approx. 0.5 | Remark | Associated graphic see "Installation" |
B | 8 mm | C | 8 mm |
D | 3 mm | F | 8 mm |
Specifications may be subject to change without notice
