Product Model

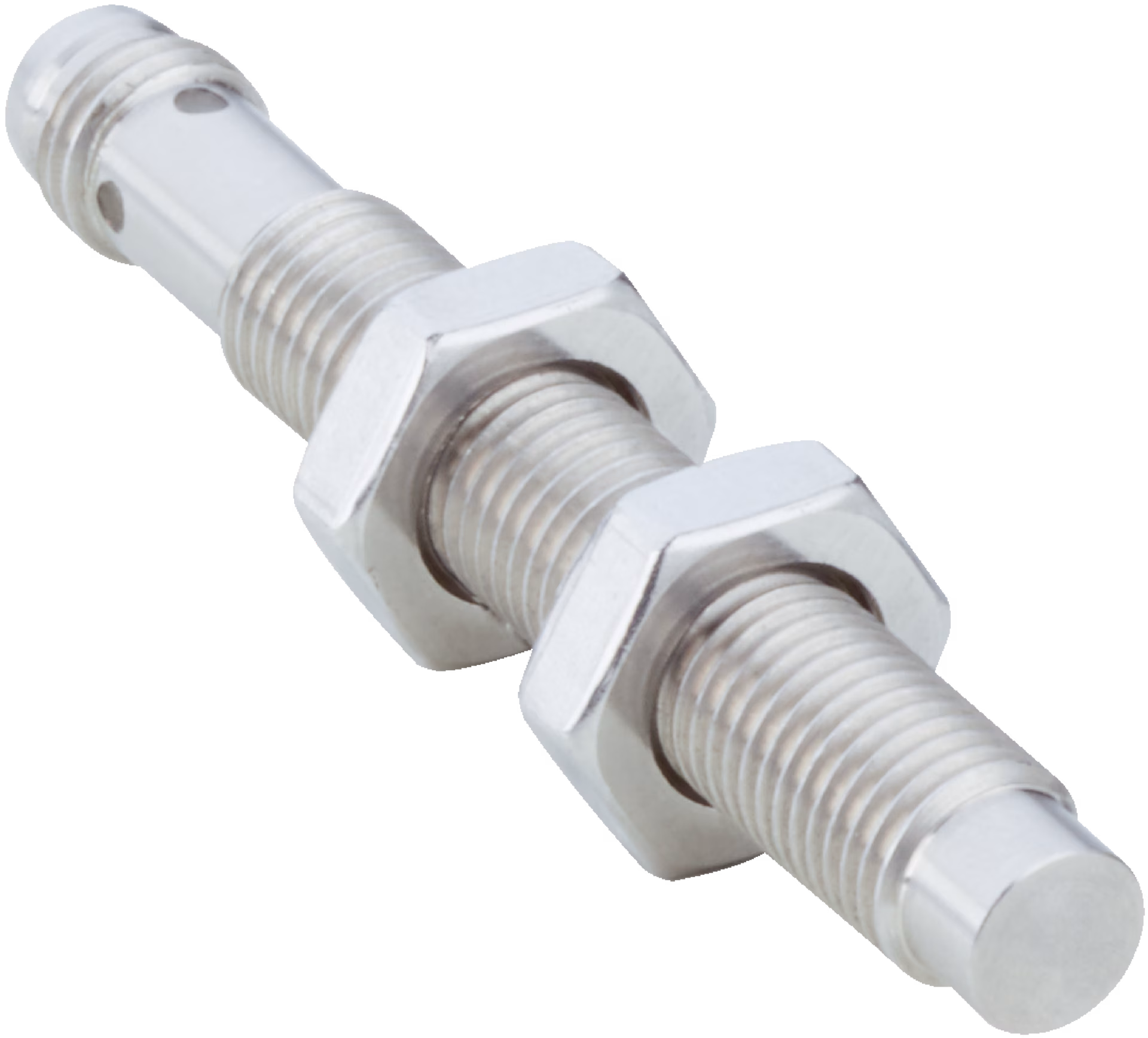

IM08-06NPS-VT1
Selling Points
- 1The SICK IM08-06NPS-VT1 ensures consistent and accurate detection in various industrial applications.
- 2It provides precise distance measurement, enhancing the accuracy of your automation systems.
- 3Designed for versatile installation, this sensor can be easily integrated into different automation setups.
- 4Built with durable components, it offers long-lasting performance in demanding industrial environments.
- 5Simple to install and configure, the IM08-06NPS-VT1 streamlines your automation processes for optimal efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Housing | Metric | Thread size | M8 x 1 |
Diameter | Ø 8 mm | Pressure resistance | ≤ 100 bar |
Sensing range Sn | 6 mm | Safe sensing range Sa | 4.86 mm |
Installation type | Non-flush | Switching frequency | 700 Hz |
Connection type | Connector M8, 3-pin | Switching output | PNP |
Output function | NO | Electrical wiring | DC 3-wire |
Enclosure rating | IP68, IP69K | Special features | Sensing face made of stainless steel V2A, Resistant against coolant lubricants, triple sensing range, Visual adjustment indicator, IO-Link |
Special applications | Zones with coolants and lubricants, Difficult application conditions | Items supplied | Mounting nut, V2A stainless steel (2x)#!#Washer, V2A stainless steel, with locking teeth (2x) |
Supply voltage | 10 V DC ... 30 V DC | Ripple | ≤ 20 % |
Voltage drop | ≤ 2 V | Time delay before availability | ≤ 10 ms |
Hysteresis | 1 % ... 20 % | Reproducibility | ≤ 5 % |
Temperature drift (of Sr) | ≤ 10 % | EMC | According to EN 60947-5-2 |
Continuous current Ia | ≤ 200 mA | Short-circuit protection | ✔ |
Power-up pulse protection | ✔ | Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
Ambient operating temperature | –25 °C ... +85 °C | Housing material | Stainless steel V2A, DIN 1.4305 / AISI 303 |
Sensing face material | Stainless steel V2A, DIN 1.4305 / AISI 303 | Housing length | 60 mm |
Thread length | 45.5 mm | Tightening torque, max. | ≤ 8 Nm |
Protection class | III | UL File No. | E191603 |
Communication interface | IO-Link V1.0 | Communication Interface detail | COM2 (38,4 kBaud) |
Process data length | 1 Byte | Process data structure | Bit 0 = Sr reached |
Process data structure A | Bit 1 = Sa reached | Note | The values are reference values which may vary |
St37 steel (Fe) | Approx. 1 | Stainless steel (V4A, 316L) | Approx. 0.3 |
Aluminum (Al) | Approx. 1 | Copper (Cu) | Approx. 0.8 |
Brass (Br) | Approx. 1.35 | Remark | Associated graphic see "Installation" |
A | 14 mm | B | 52 mm |
C | 8 mm | D | 18 mm |
E | Aluminum: 9 mm, Steel: 14 mm, Brass: 10 mm, Stainless steel: 13 mm | F | 80 mm |
Specifications may be subject to change without notice
