Product Model

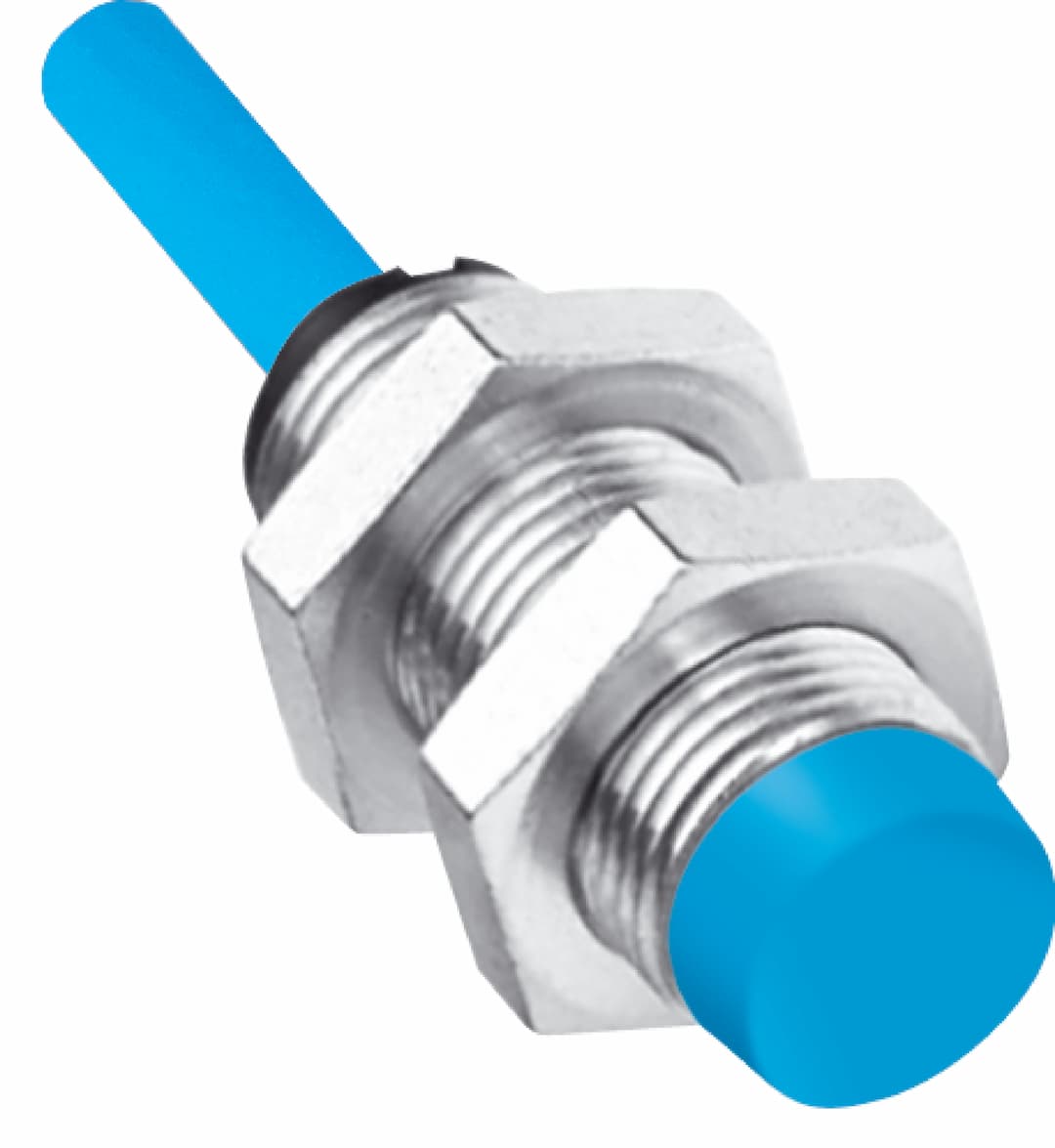

IM12-04N-N-ZW0
Selling Points
- 1High Precision Detection: Detects objects with utmost precision, ensuring reliable switching behavior.
- 2Robust Design: Built with stainless steel and LCP materials, resistant to high-pressure cleaning and extreme temperatures.
- 3Versatile Applications: Suitable for harsh environment applications, including hygienic and washdown zones, explosion-hazardous areas, and level measurement.
- 4IO-Link Compatibility: Enables advanced configuration and diagnostics through IO-Link communication.
- 5IP68 and IP69K Rating: Extremely watertight with enclosure ratings IP68 and IP69K, ensuring durability in demanding conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Housing | Metric | Thread size | M12 x 1 |
Diameter | Ø 12 mm | Sensing range Sn | 4 mm |
Safe sensing range Sa | 3.24 mm | Installation type | Non-flush |
Switching frequency | 1,500 Hz | Connection type | Cable, 2-wire, 2 m |
Switching output | NAMUR | Output function | NC |
Enclosure rating | IP67 | Special applications | Explosive areas |
Items supplied | Mounting nut, brass, nickel-plated (2x) | Supply voltage | 7.5 V DC ... 25 V DC |
Hysteresis | 1 % ... 15 % | Temperature drift (of Sr) | ± 10 % |
EMC | According to EN 60947-5-6 | Current consumption, sensor is activated | ≤ 1 mA |
Current consumption, sensor is not activated | ≥ 2.2 mA | Cable material | PVC |
Conductor size | 0.34 mm² | Cable diameter | Ø 4.9 mm |
Cable resistance | 50 Ω | Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
Ambient operating temperature | –20 °C ... +70 °C | Housing material | Brass, nickel-plated |
Sensing face material | Plastic, PTB | Housing length | 30 mm |
Thread length | 25 mm | Tightening torque, max. | 7 Nm |
Weight | + 127 g | Type approval certificate | PTB 03 ATEX 2037 |
Ex area category | 1G | Input voltage Uimax. | 15 V |
Input power Pimax. | 120 mW | Input current Iimax. | 50 mA |
Internal capacitance Cimax. | 140 nF | Internal inductance Limax. | 130 µH |
Nominal voltage | 8.2 V DC | Device labeling | II 1G Ex ia IIC T6 Ga Ta –20 °C ... +70 °C |
Note | The values are reference values which may vary | Stainless steel (V2A, 304) | Approx. 0.7 |
Aluminum (Al) | Approx. 0.4 | Copper (Cu) | Approx. 0.3 |
Brass (Br) | Approx. 0.5 | Remark | Associated graphic see "Installation" |
A | 12 mm | B | 24 mm |
C | 12 mm | D | 12 mm |
E | 8 mm | F | 32 mm |
Specifications may be subject to change without notice
