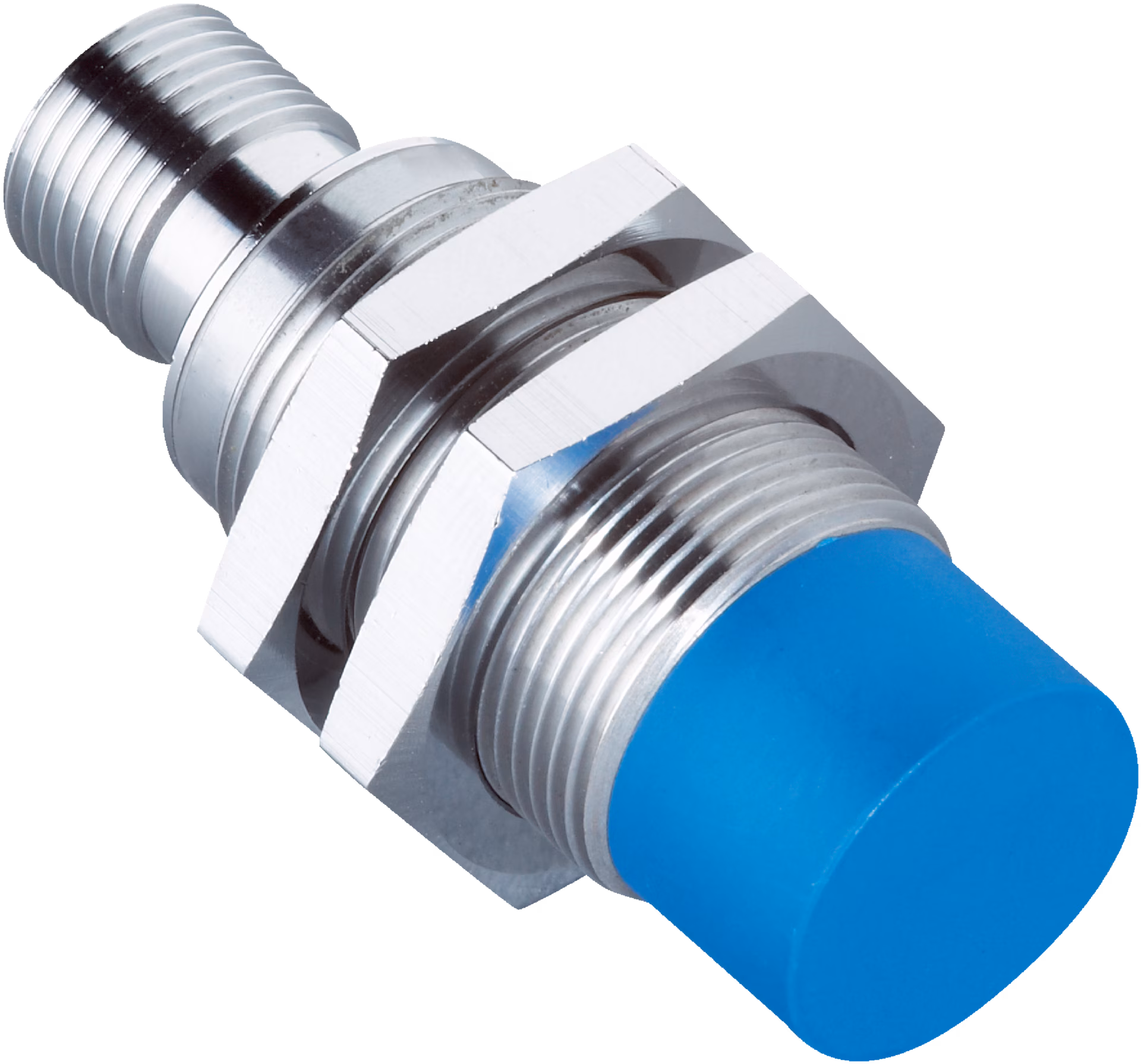

Product Model
IMA18-20NE1ZC0K
Selling Points
- 1±0.05 mm repeatability ensures precise positioning.
- 2Detects objects from 0 to 20mm with triple operating distance.
- 3Provides a 0-10V output signal proportional to distance.
- 4Metal housing with IP67 rating for harsh environments.
- 5Non-flush installation type with M12 connector for straightforward setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Housing | Metric | Thread size | M18 x 1 |
Diameter | Ø 18 mm | Sensing range Sn | 0 mm ... 20 mm |
Installation type | Non-flush | Connection type | Male connector M12, 4-pin |
Output function | Analog | Repeatability (Tanot constant) | 0.3 mm |
Repeatability (Taconstant) | ± 0.05 mm | Resolution | ≤ 5 µm |
Enclosure rating | IP67 | Special features | Analog output, triple sensing range |
Items supplied | Mounting nut, brass, chromium-plated (2x)#!#Toothed washer, stainless steel (2 x) | Supply voltage | 15 V DC ... 30 V DC |
Ripple | ≤ 20 % | Time delay before availability | ≤ 60 ms |
Temperature drift (of Sr) | ≤ 10 % | No load current | ≤ 12 mA |
Load current | ± 10 mA | Max. load resistance | ≤ 400 Ω Ub = 15 V#!#≤ 1,000 Ω Ub = 30 V |
Output voltage QA1 | s = 0 mm: 0 V/-0 +0,4 V (23 °C)#!#s = 10 mm: +5,2 V/ +-0,4 V (23 °C)#!#s = 20 mm: +10 V/ +-0,4 V (23 °C) | Output current QA2 | s = 0 mm: 4 mA/ +-0,8 mA (23 °C)#!#s = 20 mm: 20 mA +/-0,8 mA (23 °C) |
Output voltage | 0 V ... 10 V | Bandwidth | 250 Hz |
Short-circuit protection | ✔ | Ambient operating temperature | –25 °C ... +70 °C |
Housing material | Brass, chromium-plated | Sensing face material | Plastic, PTB |
Housing length | 48.5 mm | Thread length | 22 mm |
Note | The values are reference values which may vary | Stainless steel (V2A, 304) | Approx. 0.69 |
Aluminum (Al) | Approx. 0.38 | Copper (Cu) | Approx. 0.36 |
Brass (Br) | Approx. 0.46 | Remark | Associated graphic see "Installation" |
A | 21 mm | B | 60 mm |
C | 18 mm | D | 60 mm |
E | 20 mm | F | 200 mm |
Specifications may be subject to change without notice
