Product Model

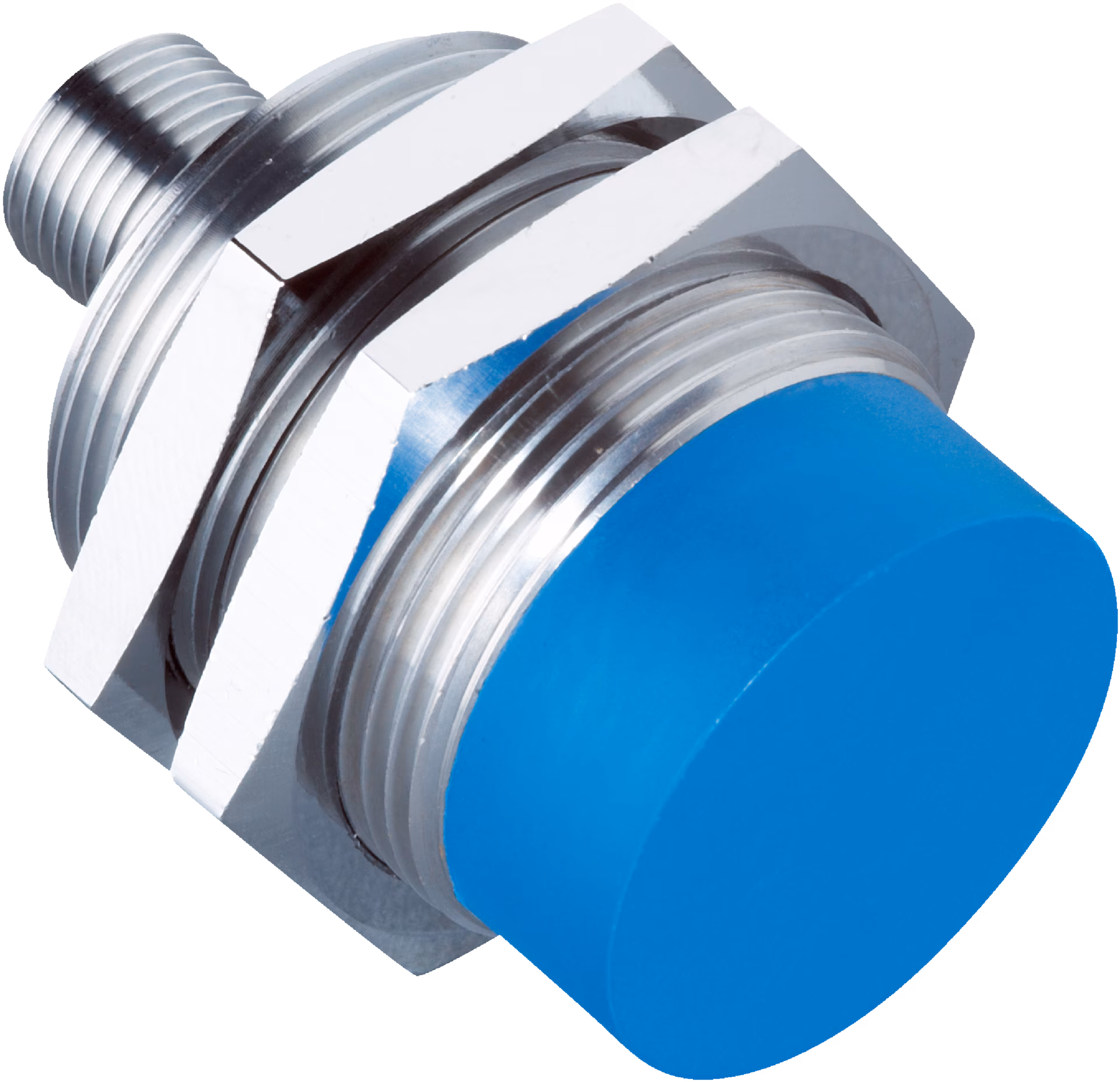

IMA30-40NE1ZC0K
Selling Points
- 1Accurately detects objects with utmost precision, unaffected by material type.
- 2Sturdy construction with short-circuit and reverse polarity protection for reliable operation.
- 3Suitable for industrial applications, including zones with coolants and lubricants, hygienic zones, and harsh environments.
- 4Detects objects within a range of 0 to 40 mm, ensuring reliable switching behavior across various conditions.
- 5Withstands harsh environments, featuring an IP67 enclosure rating for dust and water resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Housing | Metric | Thread size | M30 x 1.5 |
Diameter | Ø 30 mm | Sensing range Sn | 0 mm ... 40 mm |
Installation type | Non-flush | Connection type | Male connector M12, 4-pin |
Output function | Analog | Repeatability (Tanot constant) | 0.6 mm |
Repeatability (Taconstant) | ± 0.1 mm | Resolution | ≤ 10 µm |
Enclosure rating | IP67 | Special features | Analog output, triple sensing range |
Items supplied | Mounting nut, brass, chromium-plated (2x)#!#Toothed washer, stainless steel (2 x) | Supply voltage | 15 V DC ... 30 V DC |
Ripple | ≤ 20 % | Time delay before availability | ≤ 50 ms |
Temperature drift (of Sr) | ≤ 10 % | No load current | ≤ 12 mA |
Load current | ± 10 mA | Max. load resistance | ≤ 400 Ω Ub = 15 V#!#≤ 1,000 Ω Ub = 30 V |
Output voltage QA1 | s = 0 mm: 0 V/-0 +0,4 V (23 °C)#!#s = 20 mm: +5,2 V/ +-0,4 V (23 °C)#!#s = 40 mm: +10 V/ +-0,4 V (23 °C) | Output current QA2 | s = 0 mm: 4 mA/ +-0,8 mA (23 °C)#!#s = 40 mm: 20 mA/ +-0,8 mA (23 °C) |
Output voltage | 0 V ... 10 V | Bandwidth | 100 Hz |
Short-circuit protection | ✔ | Ambient operating temperature | –25 °C ... +70 °C |
Housing material | Brass, chromium-plated | Sensing face material | Plastic, PTB |
Housing length | 48.5 mm | Thread length | 25 mm |
Note | The values are reference values which may vary | Stainless steel (V2A, 304) | Approx. 0.8 |
Aluminum (Al) | Approx. 0.4 | Copper (Cu) | Approx. 0.4 |
Brass (Br) | Approx. 0.5 | Remark | Associated graphic see "Installation" |
A | 40 mm | B | 120 mm |
C | 30 mm | D | 120 mm |
E | Aluminium: 25 mm, Steel: 35 mm, Brass: 25 mm, Stainless steel: 20 mm | F | 400 mm |
Specifications may be subject to change without notice
