Product Model

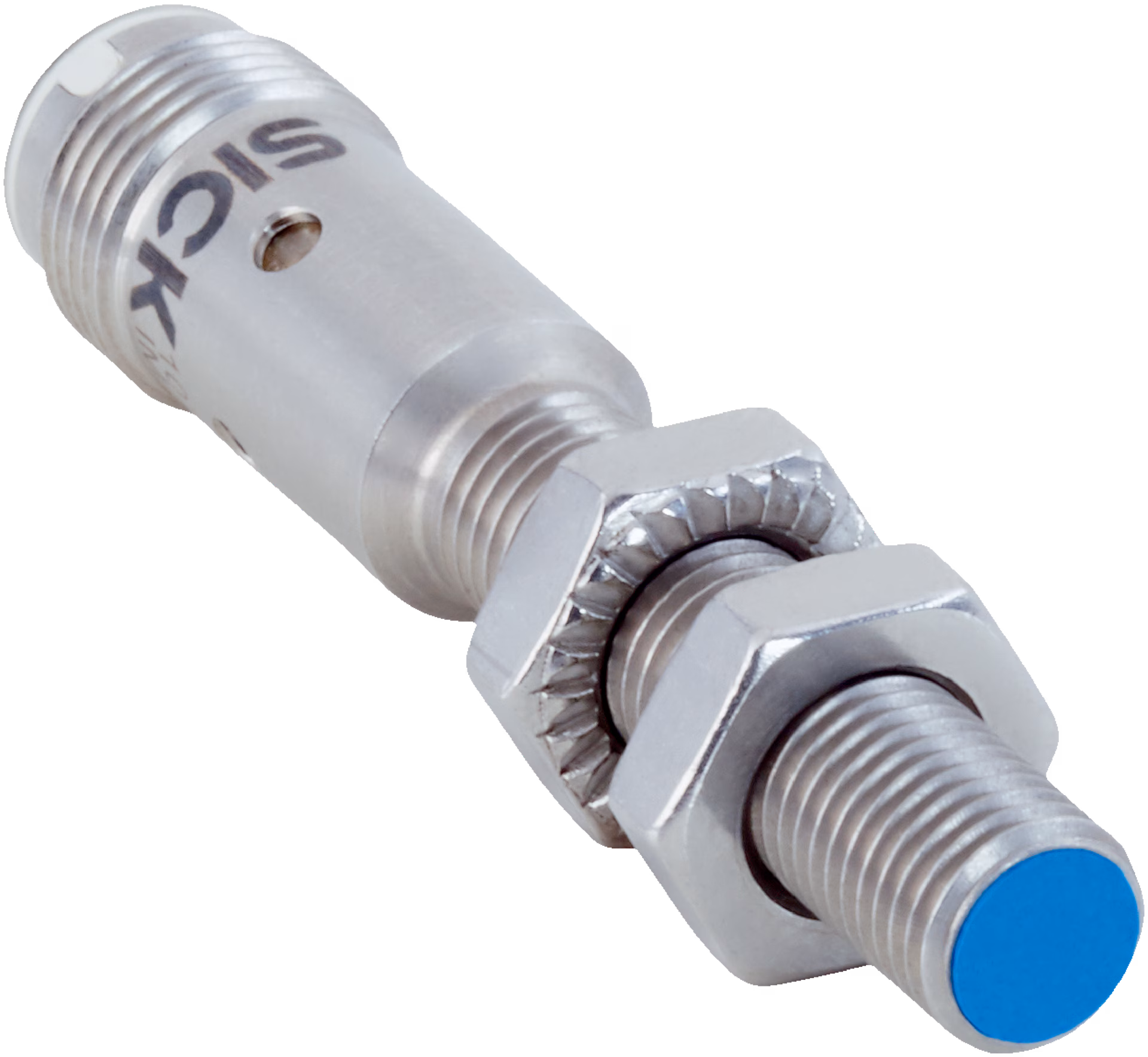

IMB08-02BPOVC0S
Selling Points
- 1Detect objects with precision up to 4 mm.
- 2Utilizes SICK ASIC technology for stable processes.
- 3Rugged stainless steel housing with LCP sensing face.
- 4Enhance flexibility and communication options.
- 5Quick setup with visual installation aid and self-locking nuts.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Housing | Metric | Housing | Standard design |
Thread size | M8 x 1 | Diameter | Ø 8 mm |
Sensing range Sn | 2 mm | Safe sensing range Sa | 1.62 mm |
Installation type | Flush | Switching frequency | 4,000 Hz |
Connection type | Male connector M12, 4-pin | Switching output | PNP |
Output function | NC | Electrical wiring | DC 3-wire |
Enclosure rating | IP682)#!#IP69K3) | Special features | Resistant against coolant lubricants, Visual adjustment indicator, Temperature resistance |
Special applications | Zones with coolants and lubricants, Mobile machines, Difficult application conditions | Items supplied | Mounting nut, V2A stainless steel, with locking teeth (2x) |
Supply voltage | 10 V DC ... 30 V DC | Ripple | ≤ 10 % |
Voltage drop | ≤ 2 V | Hysteresis | 3 % ... 20 % |
Reproducibility | ≤ 2 % | Temperature drift (of Sr) | ± 10 % |
EMC | According to EN 60947-5-2 | Continuous current Ia | ≤ 200 mA |
No load current | ≤ 10 mA | Short-circuit protection | ✔ |
Power-up pulse protection | ✔ | Shock and vibration resistance | 100 g / 11 ms / 1000 cycles; 150 g / 1 Mio cycles; 10 Hz ... 55 Hz, 1 mm / 55 Hz ... 500 Hz / 15 g |
Ambient operating temperature | –40 °C ... +100 °C | Housing material | Stainless steel V2A, DIN 1.4305 / AISI 303 |
Sensing face material | Plastic, LCP | Housing length | 60 mm |
Thread length | 32 mm | Tightening torque, max. | Typ. 7 Nm4)#!#Typ. 14 Nm5) |
Protection class | III | UL File No. | E181493 |
Note | The values are reference values which may vary | St37 steel (Fe) | 1 |
Stainless steel (V2A, 304) | Approx. 0.74 | Aluminum (Al) | Approx. 0.43 |
Copper (Cu) | Approx. 0.33 | Brass (Br) | Approx. 0.46 |
Remark | Associated graphic see "Installation" | B | 6.5 mm |
C | 8 mm | D | 6 mm |
F | 16 mm |
Specifications may be subject to change without notice
