Product Model

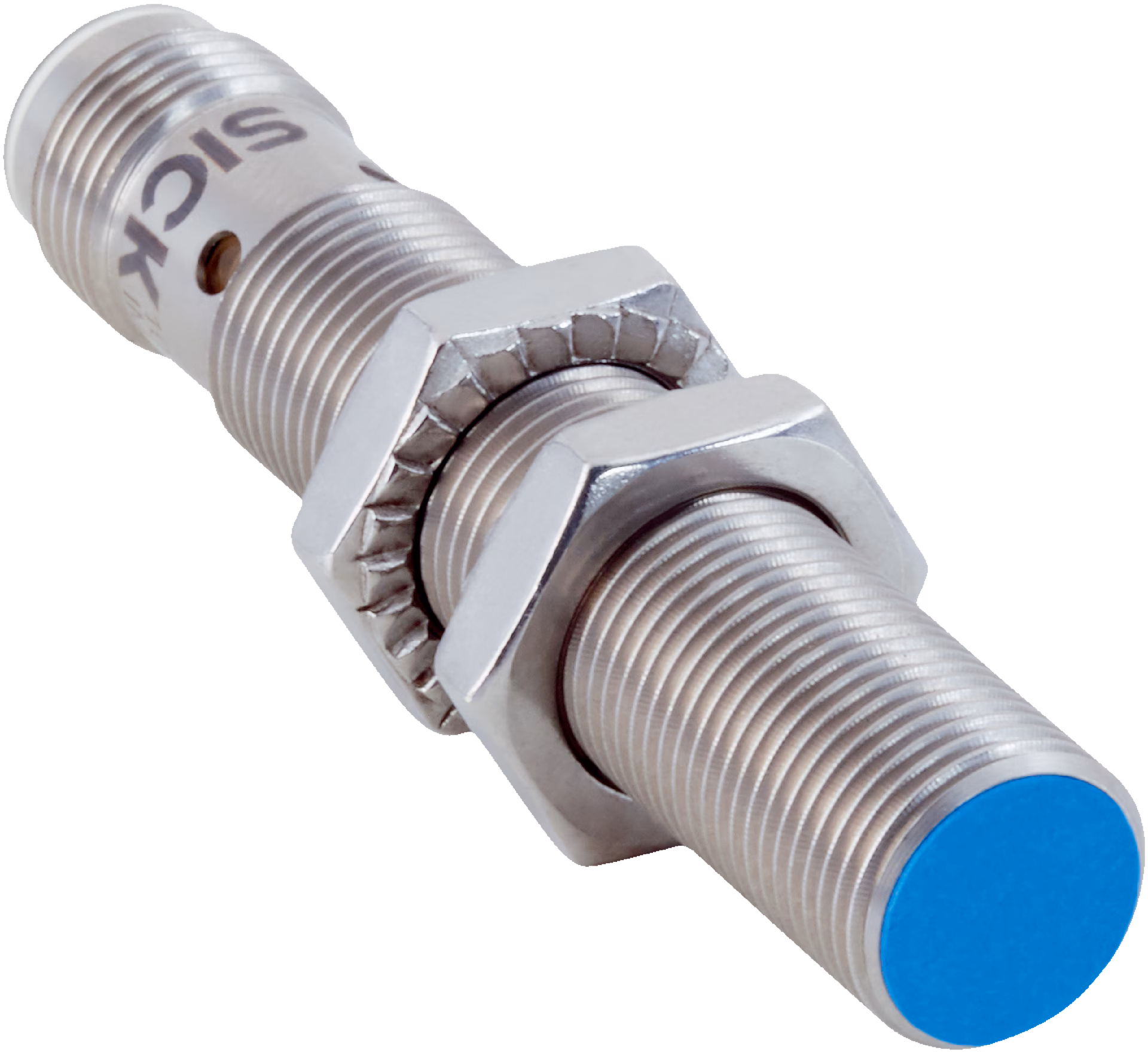

IMB12-04BPSVC0S
Selling Points
- 1The IMB12-04BPSVC0S is designed to withstand exposure to coolant lubricants, ensuring reliable operation in challenging environments.
- 2The sensor includes a visual adjustment indicator for quick and easy setup, simplifying installation processes.
- 3Equipped with IO-Link, this sensor offers advanced communication options for configuration and diagnostics.
- 4Operating from -40°C to +100°C, this sensor is highly resistant to temperature fluctuations, ensuring consistent performance.
- 5The sensor is housed in an IP68 and IP69K rated enclosure, providing excellent protection against water and dust, making it suitable for harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Housing | Metric | Housing | Standard design |
Thread size | M12 x 1 | Diameter | Ø 12 mm |
Sensing range Sn | 4 mm | Safe sensing range Sa | 3.24 mm |
Installation type | Flush | Switching frequency | 2,000 Hz |
Connection type | Male connector M12, 4-pin | Switching output | PNP |
Output function | NO | Electrical wiring | DC 3-wire |
Enclosure rating | IP682)#!#IP69K3) | Special features | Resistant against coolant lubricants, Visual adjustment indicator, IO-Link, Temperature resistance |
Special applications | Zones with coolants and lubricants, Mobile machines, Difficult application conditions | Items supplied | Mounting nut, V2A stainless steel, with locking teeth (2x) |
Supply voltage | 10 V DC ... 30 V DC | Ripple | ≤ 10 % |
Voltage drop | ≤ 2 V | Hysteresis | 3 % ... 20 % |
Reproducibility | ≤ 2 % | Temperature drift (of Sr) | ± 10 % |
EMC | According to EN 60947-5-2 | Continuous current Ia | ≤ 200 mA |
No load current | ≤ 10 mA | Short-circuit protection | ✔ |
Power-up pulse protection | ✔ | Shock and vibration resistance | 100 g / 2 ms / 500 cycles; 150 g / 1 Mio cycles; 10 Hz ... 55 Hz / 1 mm; 55 Hz ... 500 Hz / 60 g |
Ambient operating temperature | –40 °C ... +100 °C | Housing material | Stainless steel V2A, DIN 1.4305 / AISI 303 |
Sensing face material | Plastic, LCP | Housing length | 65 mm |
Thread length | 48 mm | Tightening torque, max. | Typ. 20 Nm4)#!#Typ. 32 Nm5) |
Protection class | III | UL File No. | E181493 |
Communication interface | IO-Link V1.0 | Communication Interface detail | COM2 (38,4 kBaud) |
Process data length | 1 Byte | Process data structure | Bit 0 = Sr reached#!#Bit 1 = Sa reached |
Note | The values are reference values which may vary | St37 steel (Fe) | 1 |
Stainless steel (V2A, 304) | Approx. 0.65 | Aluminum (Al) | Approx. 0.35 |
Copper (Cu) | Approx. 0.24 | Brass (Br) | Approx. 0.38 |
Remark | Associated graphic see "Installation" | B | 12 mm |
C | 12 mm | D | 12 mm |
F | 32 mm |
Specifications may be subject to change without notice
