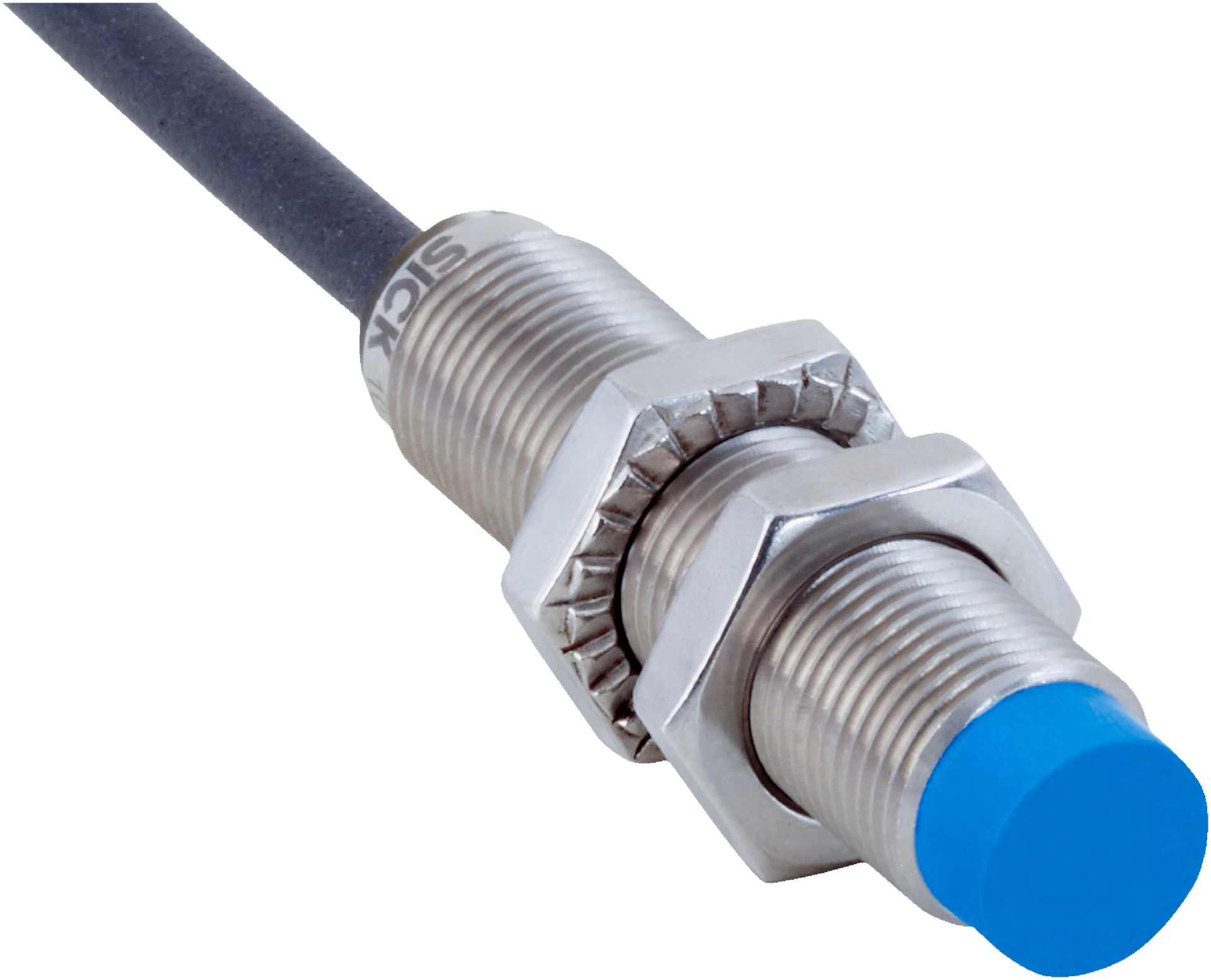

Product Model
IMB12-08NNSVU2S
Selling Points
- 1Detects objects with utmost precision, ensuring stable processes.
- 2IP 68 and IP 69K rated, resistant to oils and cooling lubricants, suitable for outdoor use.
- 3Quick and easy installation thanks to visual installation aid and self-locking nuts.
- 4Compatible with IO-Link for high flexibility and communication options.
- 5Extended sensor service life reduces machine downtimes in harsh working conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Housing | Metric | Housing | Standard design |
Thread size | M12 x 1 | Diameter | Ø 12 mm |
Sensing range Sn | 8 mm | Safe sensing range Sa | 6.48 mm |
Installation type | Non-flush | Switching frequency | 2,000 Hz |
Connection type | Cable, 3-wire, 2 m | Switching output | NPN |
Output function | NO | Electrical wiring | DC 3-wire |
Enclosure rating | IP681)#!#IP69K2) | Special features | Resistant against coolant lubricants, Visual adjustment indicator, Temperature resistance |
Special applications | Zones with coolants and lubricants, Mobile machines, Difficult application conditions | Items supplied | Mounting nut, V2A stainless steel, with locking teeth (2x) |
Supply voltage | 10 V DC ... 30 V DC | Ripple | ≤ 10 % |
Voltage drop | ≤ 2 V | Hysteresis | 3 % ... 20 % |
Reproducibility | ≤ 2 % | Temperature drift (of Sr) | ± 10 % |
EMC | According to EN 60947-5-2 | Continuous current Ia | ≤ 200 mA |
No load current | ≤ 10 mA | Cable material | PUR |
Conductor size | 0.34 mm² | Cable diameter | Ø 4.5 mm |
Short-circuit protection | ✔ | Power-up pulse protection | ✔ |
Shock and vibration resistance | 100 g / 2 ms / 500 cycles; 150 g / 1 Mio cycles; 10 Hz ... 55 Hz / 1 mm; 55 Hz ... 500 Hz / 60 g | Ambient operating temperature | –40 °C ... +100 °C |
Housing material | Stainless steel V2A, DIN 1.4305 / AISI 303 | Sensing face material | Plastic, LCP |
Housing length | 50 mm | Thread length | 41 mm |
Tightening torque, max. | Typ. 20 Nm4)#!#Typ. 32 Nm5) | Protection class | III |
UL File No. | E181493 | Note | The values are reference values which may vary |
St37 steel (Fe) | 1 | Stainless steel (V2A, 304) | Approx. 0.67 |
Aluminum (Al) | Approx. 0.42 | Copper (Cu) | Approx. 0.35 |
Brass (Br) | Approx. 0.42 | Remark | Associated graphic see "Installation" |
A | 12 mm | B | 24 mm |
C | 12 mm | D | 24 mm |
E | 16 mm | F | 64 mm |
Specifications may be subject to change without notice
