Product Model

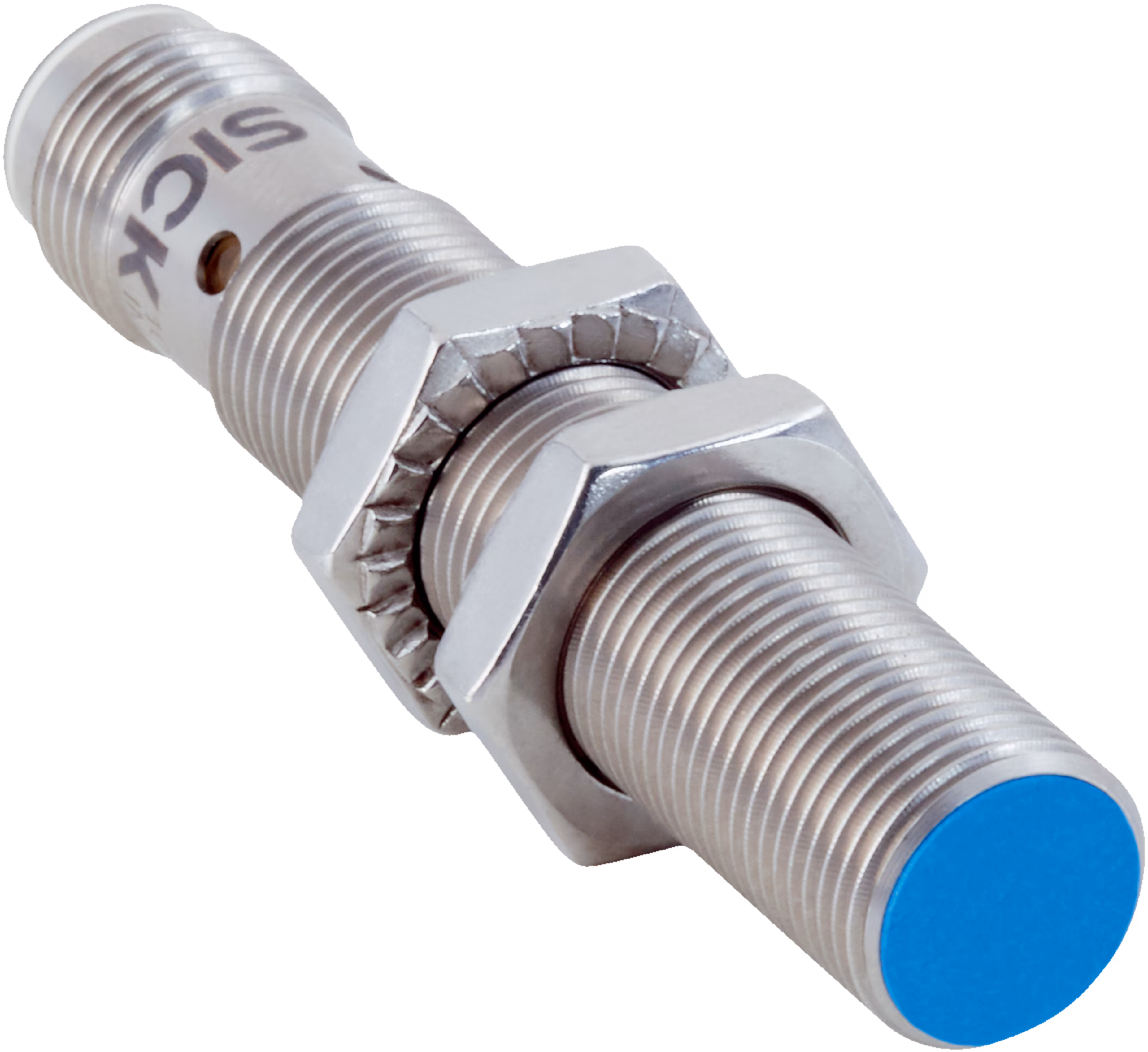

IMC12-04BPPVC0SC05
Selling Points
- 1Withstands 100 g / 2 ms / 500 cycles and 150 g / 1 Mio cycles.
- 2Resistant to coolant lubricants, lactic acid, and hydrogen peroxide (H2O2).
- 3Ensures operation in harsh environments with high protection against solid particles and water.
- 4Provides a normally open contact output for reliable switching.
- 5Operates from 10 V DC to 30 V DC with a ripple of ≤ 10%.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Housing | Metric | Thread size | M12 x 1 |
Diameter | Ø 12 mm | Sensing range Sn | 0 mm ... 4 mm |
Installation type | Flush | Switching frequency | 1,000 Hz |
Connection type | Male connector M12, 4-pin | Function | Q1: Two films |
Switching output | PNP | Output function | NO |
Electrical wiring | DC 4-wire | Enclosure rating | IP683)#!#IP69K4) |
Special features | Double film sensor, Resistant against coolant lubricants | Special applications | Zones with coolants and lubricants, Difficult application conditions |
Items supplied | Mounting nut, V2A stainless steel, with locking teeth (2x) | Supply voltage | 10 V DC ... 30 V DC |
Ripple | ≤ 10 % | Voltage drop | ≤ 2 V |
Hysteresis | 3 % ... 20 % | Reproducibility | — |
Temperature drift (of Sr) | ± 10 % | EMC | According to EN 60947-5-2 |
Continuous current Ia | ≤ 200 mA | Short-circuit protection | ✔ |
Power-up pulse protection | ✔ | Shock and vibration resistance | 100 g / 2 ms / 500 cycles; 150 g / 1 Mio cycles; 10 Hz ... 55 Hz / 1 mm; 55 Hz ... 500 Hz / 60 g |
Ambient operating temperature | –25 °C ... +75 °C | Housing material | Stainless steel V2A, DIN 1.4305 / AISI 303 |
Sensing face material | Plastic, LCP | Housing length | 65 mm |
Thread length | 48 mm | Tightening torque, max. | Typ. 32 Nm |
UL File No. | E181493 | Note | The values are reference values which may vary |
St37 steel (Fe) | 1 | Stainless steel (V2A, 304) | Approx. 0.8 |
Aluminum (Al) | Approx. 0.45 | Copper (Cu) | Approx. 0.4 |
Remark | Associated graphic see "Installation" | B | 12 mm |
C | 12 mm | D | 12 mm |
F | 32 mm | Smart Task name | Base logics |
Specifications may be subject to change without notice
