Product Model

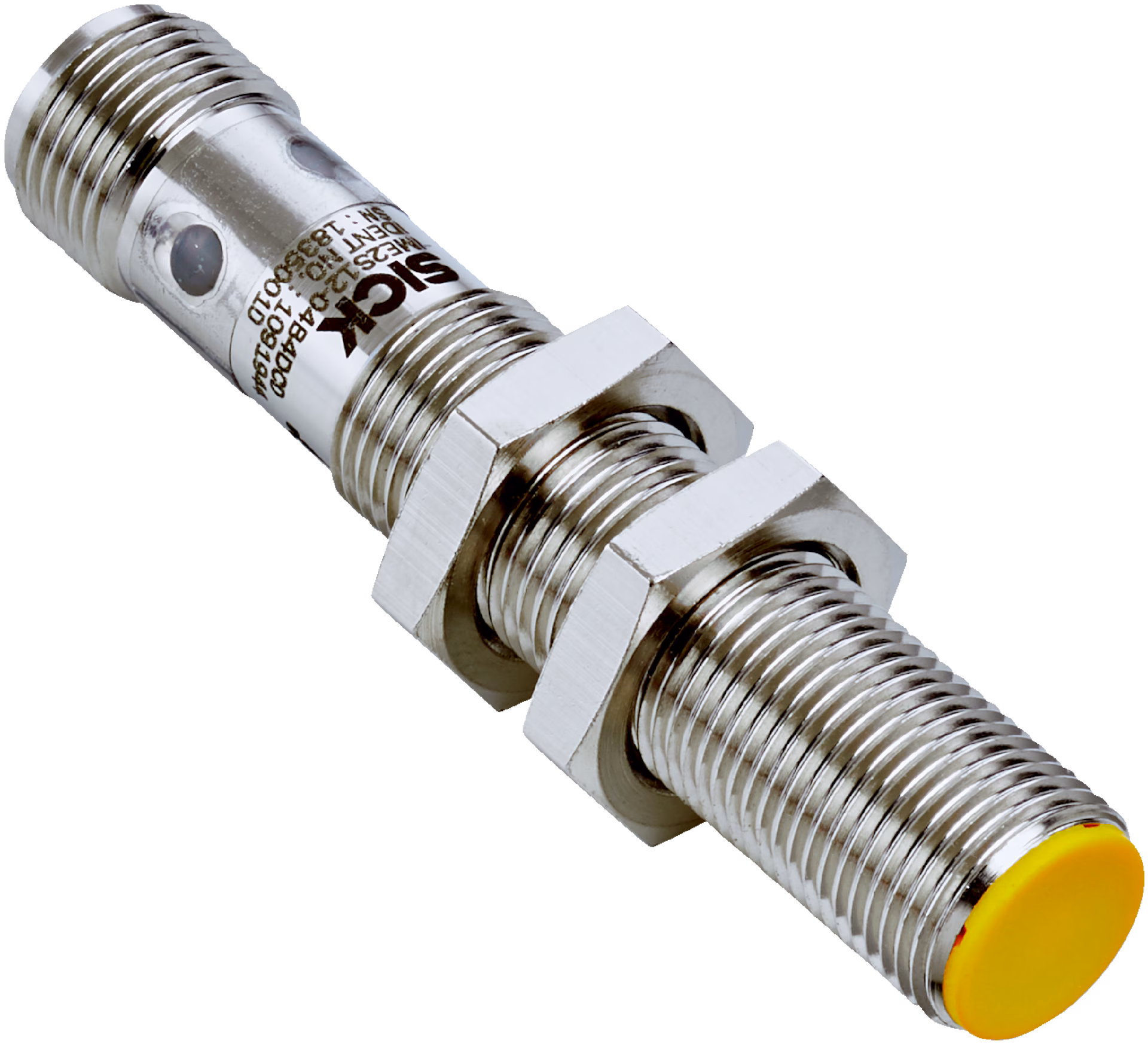

IME2S12-04B4DC0
Selling Points
- 1The IME2S12-04B4DC0 offers a sensing range of 4 mm, ensuring precise detection in various industrial settings.
- 2It features safe switch on and off distances of 3.2 mm and 6 mm respectively, enhancing safety protocols.
- 3Utilizes an inductive sensor principle for reliable operation in diverse environments.
- 4Meets SIL 2 safety integrity level standards (IEC 61508), ensuring high safety performance.
- 5Supports IO-Link communication for seamless integration with modern industrial automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Sensor principle | Inductive | Number of safe outputs | 2 |
Housing diameter | M12 | Sensing range Sn | 4 mm |
Safe switch on distance Sao | 3.2 mm | Safe switch off distance Sar | 6 mm |
Active sensor surfaces | 1 | Actuation frequency | ≤ 100 Hz |
Items supplied | Including mounting nuts, brass, nickel-plated (2x) | Safe series connections | With Flexi Loop (with diagnostics) |
Connection type_Coupling nut material | Nickel-plated brass | IO-Link Safety_WCDT | ≤ 1 ms |
IO-Link Safety_OFDT | ≤ 20 ms | Display elements_Diagnostics indicator | ✔ |
Display elements_Status display | ✔ | Protection class | III (IEC 61140) |
Rated insulation voltage Ui | 28.8 V | Rated impulse withstand voltage Uimp | 1,500 V |
Supply voltage Vs | 24 V DC (19.2 V DC ... 28.8 V DC) | Power consumption | ≤ 20 mA |
Type of output | Self-monitoring semiconductor outputs (OSSDs) | Response time | ≤ 1 ms |
Release time | ≤ 1 ms | Risk time | ≤ 20 ms |
Switch-on time | 1 s | Design | Cylindrical |
Housing diameter | M12 | Housing length | 65 mm |
Thread length | 40.9 mm | Material_Housing | Nickel-plated brass |
Material_Sensor surface | VISTAL® | Installation type | Flush |
Specifications may be subject to change without notice
