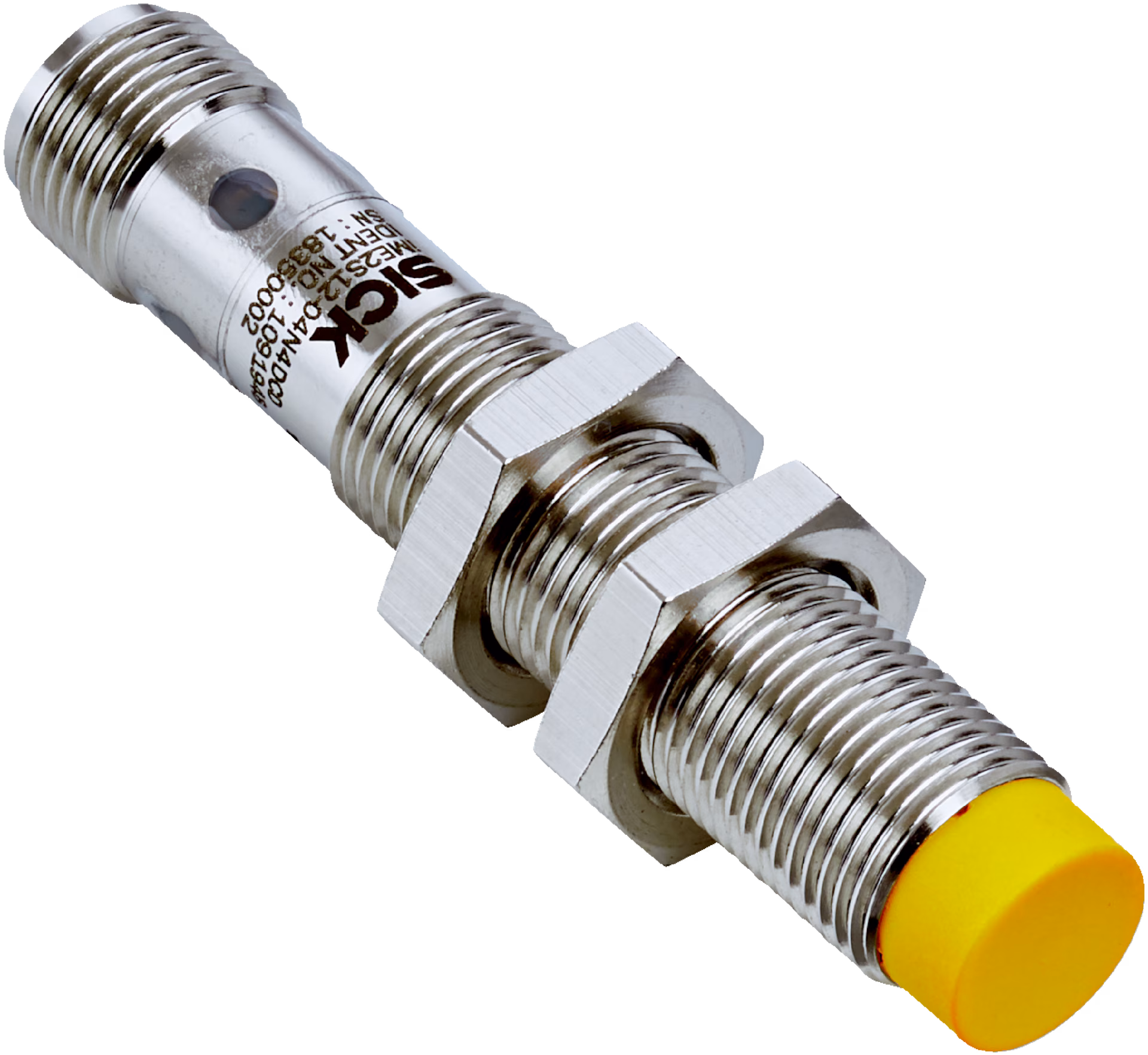

Product Model
IME2S12-08N4DC0
Selling Points
- 1Inductive Sensor Principle: Utilizes inductive technology for precise detection.
- 22 Safe Outputs: Ensures reliable operation with two safe outputs.
- 3M12 Housing Diameter: Compact design with a standard M12 housing diameter.
- 48mm Sensing Range: Detects objects up to 8mm away for accurate positioning.
- 5Nickel-Plated Brass Housing: Durable and resistant to corrosion with nickel-plated brass housing.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Sensor principle | Inductive | Number of safe outputs | 2 |
Housing diameter | M12 | Sensing range Sn | 8 mm |
Safe switch on distance Sao | 6.5 mm | Safe switch off distance Sar | 12 mm |
Active sensor surfaces | 1 | Actuation frequency | ≤ 100 Hz |
Items supplied | Including mounting nuts, brass, nickel-plated (2x) | Safe series connections | With Flexi Loop (with diagnostics) |
Connection type_Coupling nut material | Nickel-plated brass | IO-Link Safety_WCDT | ≤ 1 ms |
IO-Link Safety_OFDT | ≤ 20 ms | Display elements_Diagnostics indicator | ✔ |
Display elements_Status display | ✔ | Protection class | III (IEC 61140) |
Rated insulation voltage Ui | 28.8 V | Rated impulse withstand voltage Uimp | 1,500 V |
Supply voltage Vs | 24 V DC (19.2 V DC ... 28.8 V DC) | Power consumption | ≤ 20 mA |
Type of output | Self-monitoring semiconductor outputs (OSSDs) | Response time | ≤ 1 ms |
Release time | ≤ 1 ms | Risk time | ≤ 20 ms |
Switch-on time | 1 s | Design | Cylindrical |
Housing diameter | M12 | Housing length | 65 mm |
Thread length | 36.9 mm | Material_Housing | Nickel-plated brass |
Material_Sensor surface | VISTAL® | Installation type | Non-flush |
Specifications may be subject to change without notice
