Product Model

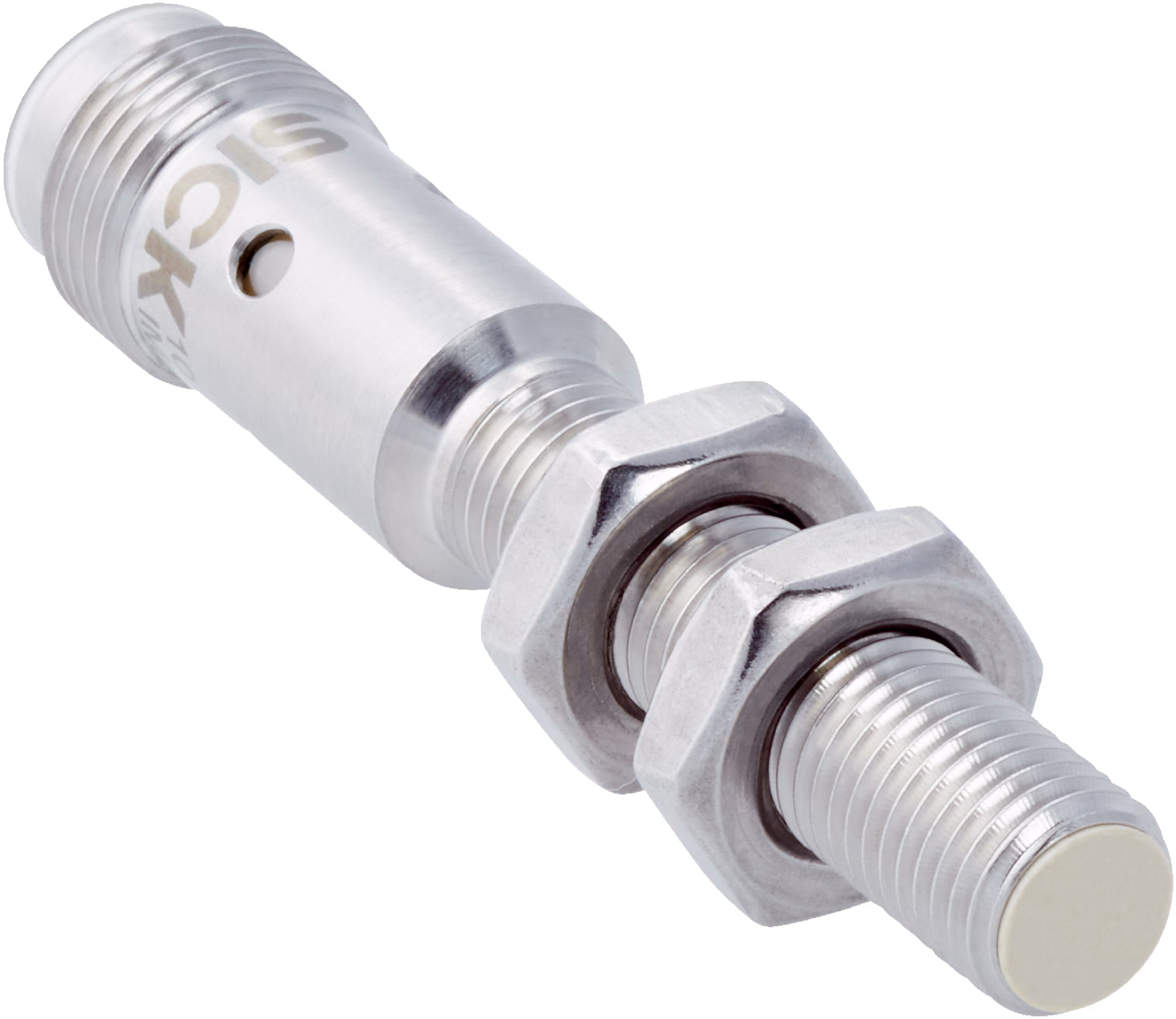

IMF08-02BPSNC0S
Selling Points
- 1Detects objects with utmost precision, ensuring reliable switching behavior.
- 2Utilizes SICK ASIC technology for increased accuracy and robustness.
- 3Supports effective data exchange and diagnostics through IO-Link connectivity.
- 4Built with a standard stainless steel housing, resistant to harsh environments and chemicals.
- 5Features a flush mounting option with visual signalization for quick and simple setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Housing | Metric | Housing | Standard design |
Thread size | M8 x 1 | Diameter | Ø 8 mm |
Sensing range Sn | 2 mm | Safe sensing range Sa | 1.62 mm |
Installation type | Flush | Switching frequency | 4,000 Hz |
Connection type | Male connector M12, 4-pin | Switching output | PNP |
Output function | NO | Electrical wiring | DC 3-wire |
Enclosure rating | IP682)#!#IP69K3) | Special features | Resistant to cleaning agents, Visual adjustment indicator, IO-Link, Temperature resistance |
Special applications | Hygienic and washdown zones, Difficult application conditions | Items supplied | Mounting nut, V4A stainless steel (2x) |
Supply voltage | 10 V DC ... 30 V DC | Ripple | ≤ 10 % |
Voltage drop | ≤ 2 V | Hysteresis | 3 % ... 20 % |
Reproducibility | ≤ 2 % | Temperature drift (of Sr) | ± 10 % |
EMC | According to EN 60947-5-2 | Continuous current Ia | ≤ 200 mA |
No load current | ≤ 10 mA | Short-circuit protection | ✔ |
Power-up pulse protection | ✔ | Shock and vibration resistance | 100 g / 11 ms / 1000 cycles; 150 g / 1 Mio cycles; 10 Hz ... 55 Hz, 1 mm / 55 Hz ... 500 Hz / 15 g |
Ambient operating temperature | –40 °C ... +100 °C | Housing material | Stainless steel V4A, DIN 1.4404 / AISI 316L |
Sensing face material | Plastic, LCP | Housing length | 60 mm |
Thread length | 32 mm | Tightening torque, max. | Typ. 14 Nm |
Protection class | III | UL File No. | E181493 |
Communication interface | IO-Link V1.0 | Communication Interface detail | COM2 (38,4 kBaud) |
Process data length | 1 Byte | Process data structure | Bit 0 = Sr reached#!#Bit 1 = Sa reached |
Note | The values are reference values which may vary | Stainless steel (V2A, 304) | Approx. 0.74 |
Aluminum (Al) | Approx. 0.43 | Copper (Cu) | Approx. 0.33 |
Brass (Br) | Approx. 0.46 | Remark | Associated graphic see "Installation" |
B | 6.5 mm | C | 8 mm |
D | 6 mm | F | 16 mm |
Specifications may be subject to change without notice
