Product Model

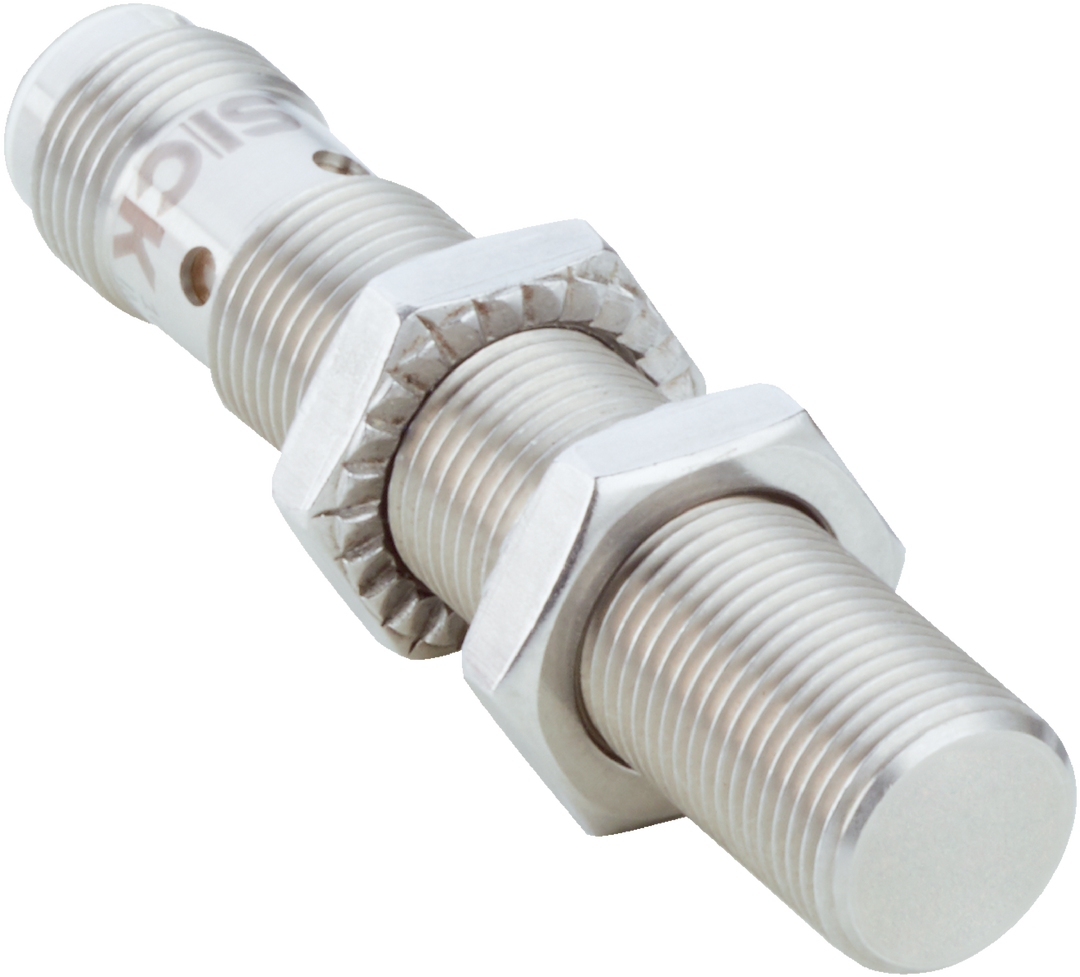

IMI12-04BNSVC0S
Selling Points
- 1The IMI12-04BNSVC0S features advanced ASIC technology for precise sensing ranges, ensuring stable processes in various applications.
- 2With an IP 68 and IP 69K enclosure rating, this sensor is resistant to oils, cooling lubricants, and extreme temperatures, making it suitable for outdoor use.
- 3The visual installation aid and self-locking nuts facilitate quick and easy mounting, reducing machine downtimes.
- 4Compatible with IO-Link 1.0, this sensor offers high flexibility in communication options, enhancing configuration and diagnostics.
- 5Easy to implement customer-specific variants within the standard product portfolio, catering to diverse industrial needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Housing | Metric | Thread size | M12 x 1 |
Diameter | Ø 12 mm | Sensing range Sn | 4 mm |
Safe sensing range Sa | 3.24 mm | Installation type | Flush |
Switching frequency | 75 Hz | Connection type | Male connector M12, 4-pin |
Switching output | NPN | Output function | NO |
Electrical wiring | DC 3-wire | Enclosure rating | IP68, IP69K |
Special features | Sensing face made of stainless steel V2A, Resistant against coolant lubricants | Special applications | Zones with coolants and lubricants, Difficult application conditions |
Items supplied | Mounting nut, V2A stainless steel, with locking teeth (2x) | Supply voltage | 10 V DC ... 30 V DC |
Ripple | ≤ 10 % | Voltage drop | ≤ 2 V |
Time delay before availability | ≤ 300 ms | Hysteresis | 1 % ... 20 % |
Reproducibility | ≤ 2 % | Temperature drift (of Sr) | ≤ 10 % |
EMC | According to EN 60947-5-2 | Continuous current Ia | ≤ 200 mA |
No load current | ≤ 10 mA | Short-circuit protection | ✔ |
Power-up pulse protection | ✔ | Shock and vibration resistance | 100 g / 5 ms / 1000 cycles; 150 g / 1 Mio cycles; 10 Hz ... 55 Hz, 1 mm / 55 Hz ... 500 Hz / 60 g |
Ambient operating temperature | –25 °C ... +75 °C | Housing material | Stainless steel V2A, DIN 1.4305 / AISI 303 |
Sensing face material | Stainless steel V2A, DIN 1.4305 / AISI 303 | Housing length | 63.8 mm |
Thread length | 46.8 mm | Tightening torque, max. | ≤ 32 Nm |
Protection class | III | UL File No. | E181493 |
Note | The values are reference values which may vary | St37 steel (Fe) | Approx. 1 |
Stainless steel (V2A, 304) | Approx. 0.67 | Aluminum (Al) | Approx. 0.71 |
Copper (Cu) | Approx. 0.51 | Brass (Br) | Approx. 0.8 |
Remark | Associated graphic see "Installation" | B | 12 mm |
C | 12 mm | D | 25 mm |
F | 32 mm |
Specifications may be subject to change without notice
