Product Model

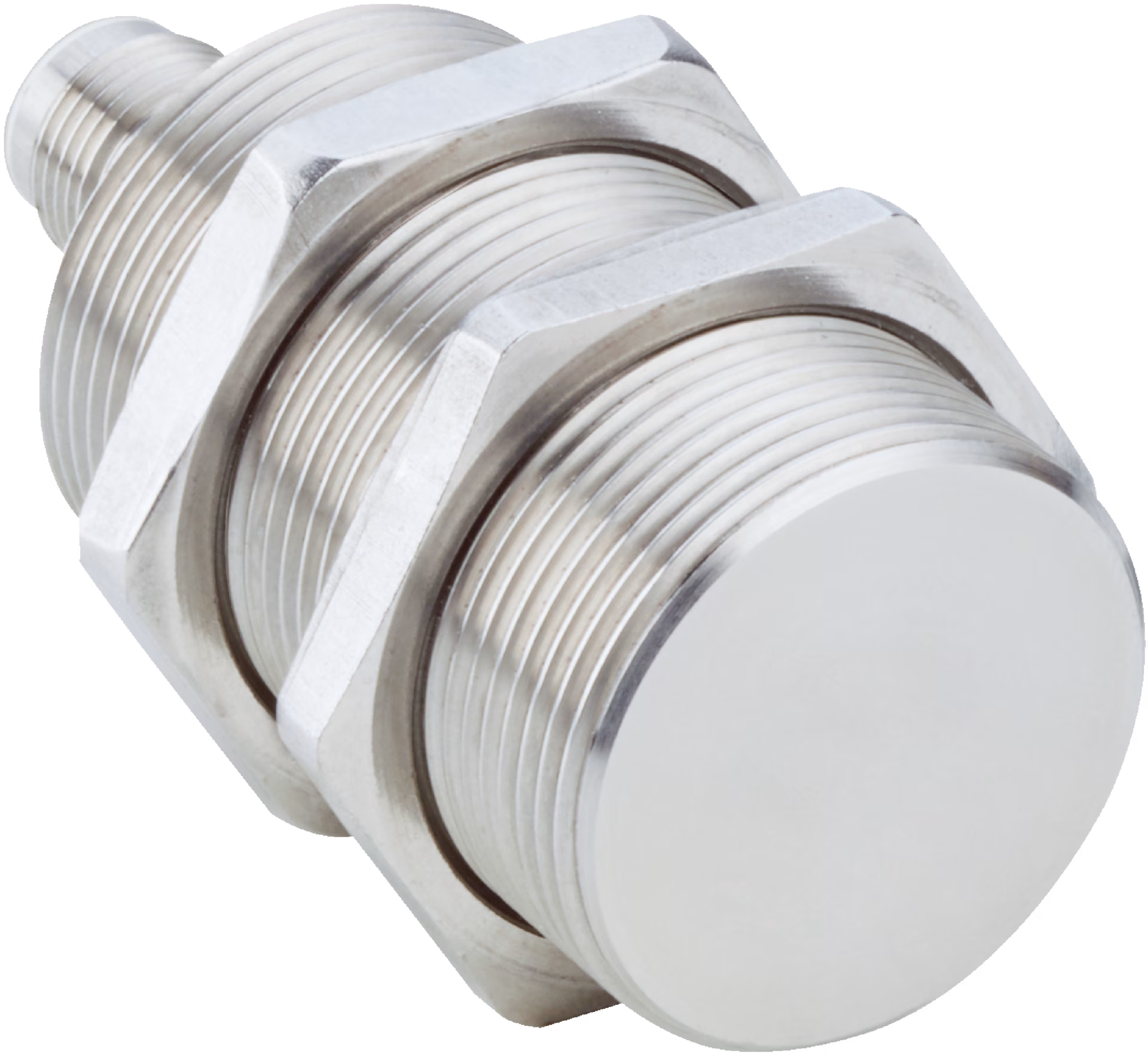

IMI30-10BPONC0S
Selling Points
- 1High-precision inductive detection for accurate object recognition.
- 2Robust design for long-lasting performance in harsh industrial environments.
- 3Easy installation with simple mounting options.
- 4Reliable detection with minimal false triggers.
- 5Compatible with a wide range of industrial automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Housing | Metric | Thread size | M30 x 1.5 |
Diameter | Ø 30 mm | Sensing range Sn | 10 mm |
Safe sensing range Sa | 8.1 mm | Installation type | Flush |
Switching frequency | 50 Hz | Connection type | Male connector M12, 4-pin |
Switching output | PNP | Output function | NC |
Electrical wiring | DC 3-wire | Enclosure rating | IP68, IP69K |
Special features | Sensing face made of stainless steel V4A, Resistant to cleaning agents | Special applications | Hygienic and washdown zones, Difficult application conditions |
Items supplied | Mounting nut, V4A stainless steel (2x) | Supply voltage | 10 V DC ... 30 V DC |
Ripple | ≤ 10 % | Voltage drop | ≤ 2 V |
Time delay before availability | ≤ 300 ms | Hysteresis | 1 % ... 20 % |
Reproducibility | ≤ 2 % | Temperature drift (of Sr) | ≤ 10 % |
EMC | According to EN 60947-5-2 | Continuous current Ia | ≤ 200 mA |
No load current | ≤ 10 mA | Short-circuit protection | ✔ |
Power-up pulse protection | ✔ | Shock and vibration resistance | 100 g / 5 ms / 1000 cycles; 150 g / 1 Mio cycles; 10 Hz ... 55 Hz, 1 mm / 55 Hz ... 500 Hz / 60 g |
Ambient operating temperature | –25 °C ... +75 °C | Housing material | Stainless steel V4A, DIN 1.4404 / AISI 316L |
Sensing face material | Stainless steel V4A, DIN 1.4404 / AISI 316L | Housing length | 65.3 mm |
Thread length | 46.3 mm | Tightening torque, max. | ≤ 100 Nm |
Protection class | III | UL File No. | E181493 |
Note | The values are reference values which may vary | St37 steel (Fe) | Approx. 1 |
Stainless steel (V2A, 304) | Approx. 0.52 | Aluminum (Al) | Approx. 0.16 |
Copper (Cu) | Approx. 0 | Brass (Br) | Approx. 0.22 |
Remark | Associated graphic see "Installation" | B | 25 mm |
C | 24 mm | D | 20 mm |
F | 80 mm |
Specifications may be subject to change without notice
