Product Model

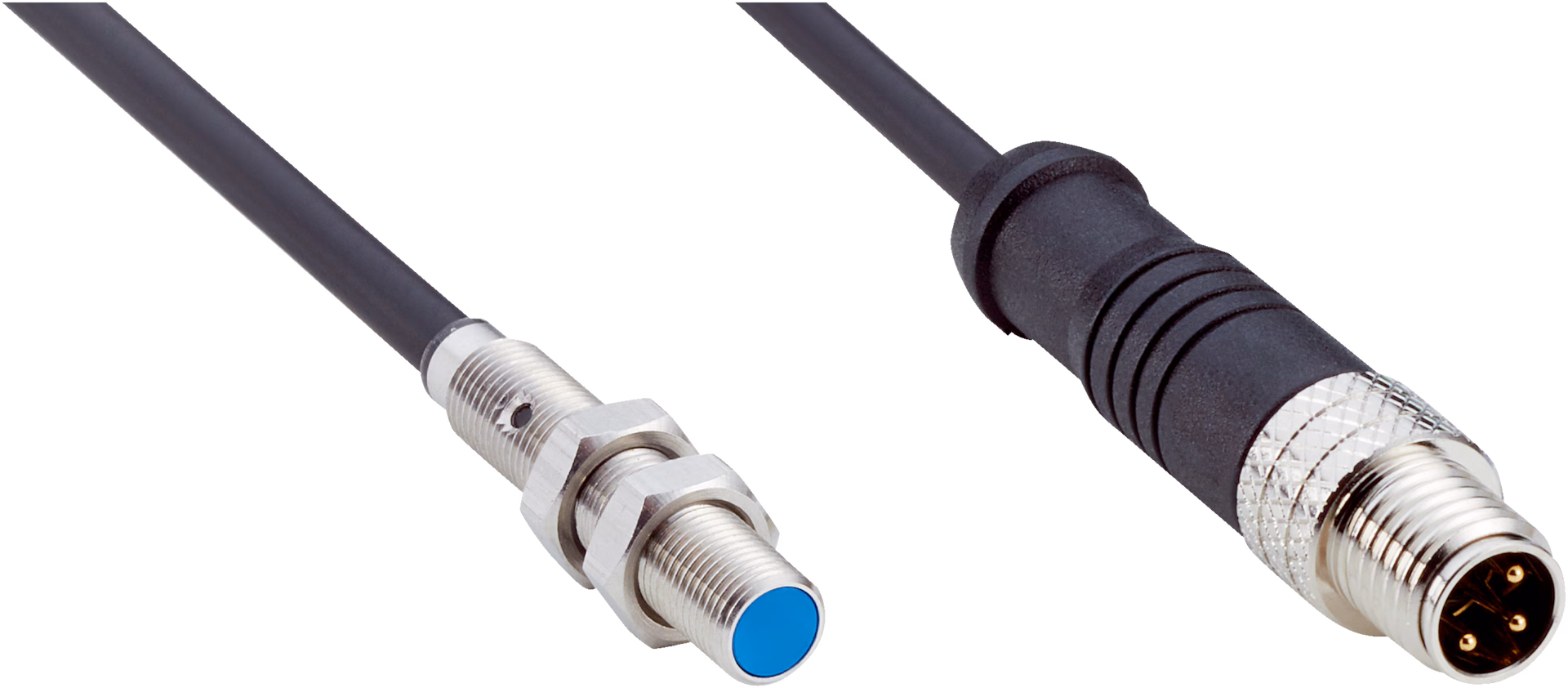

IMM05-2B5PSVR8S
Selling Points
- 1High accuracy and precise switching behavior for reliable detection of small objects.
- 2Compact size with a cylindrical thread design (M5 x 0.5) for space-saving installation.
- 3Extended sensing range of 2.5 mm with a safe sensing range of 2.025 mm.
- 4Visual adjustment indicator for easy setup and reliable sensor function.
- 5IO-Link communication for simple diagnostics and data access, enhancing automation processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Housing | Metric | Housing | Standard design |
Thread size | M5 x 0.5 | Diameter | Ø 5 mm |
Sensing range Sn | 2.5 mm | Safe sensing range Sa | 2.025 mm |
Installation type | Quasi-flush | Switching frequency | 4,000 Hz |
Connection type | Cable with connector M8, 3-pin, 0.2 m | Switching output | PNP |
Output function | NO | Electrical wiring | DC 3-wire |
Enclosure rating | IP67 | Special features | Visual adjustment indicator, IO-Link, triple sensing range |
Items supplied | Mounting nut, V2A stainless steel (2x)#!#Washer, V2A stainless steel, with locking teeth (2x)#!#Cable flag, Polymatic 50 (1 x) | Supply voltage | 10 V DC ... 30 V DC |
Ripple | ≤ 20 % | Voltage drop | ≤ 2 V |
Time delay before availability | ≤ 30 ms | Hysteresis | 1 % ... 20 % |
Reproducibility | ≤ 2.5 % | Temperature drift (of Sr) | ≤ 10 % |
EMC | EN 60947-5-2 | Continuous current Ia | ≤ 100 mA |
Cable material | PUR | Cable diameter | Ø 2.9 mm |
Short-circuit protection | ✔ | Power-up pulse protection | ✔ |
Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm | Ambient operating temperature | –10 °C ... +60 °C |
Housing material | Stainless steel V2A, DIN 1.4305 / AISI 303 | Sensing face material | Plastic, LCP |
Housing length | 25 mm | Thread length | 23 mm |
Tightening torque, max. | ≤ 1.5 Nm | UL File No. | NRKH.E348498 |
Communication interface | IO-Link V1.1 | Communication Interface detail | COM2 (38,4 kBaud) |
Cycle time | 10.4 ms | Process data length | 1 Byte |
Process data structure | Bit 0 = Sr reached#!#Bit 1 = Sa reached | Note | The values are reference values which may vary |
St37 steel (Fe) | 1 | Stainless steel (V2A, 304) | Approx. 0.65 |
Aluminum (Al) | Approx. 0.38 | Copper (Cu) | Approx. 0.33 |
Brass (Br) | Approx. 0.41 | Remark | Associated graphic see "Installation" |
A | 1 mm | B | 6 mm |
C | 5 mm | D | 7.5 mm |
E | 2 mm | F | 9 mm |
Specifications may be subject to change without notice
