Product Model

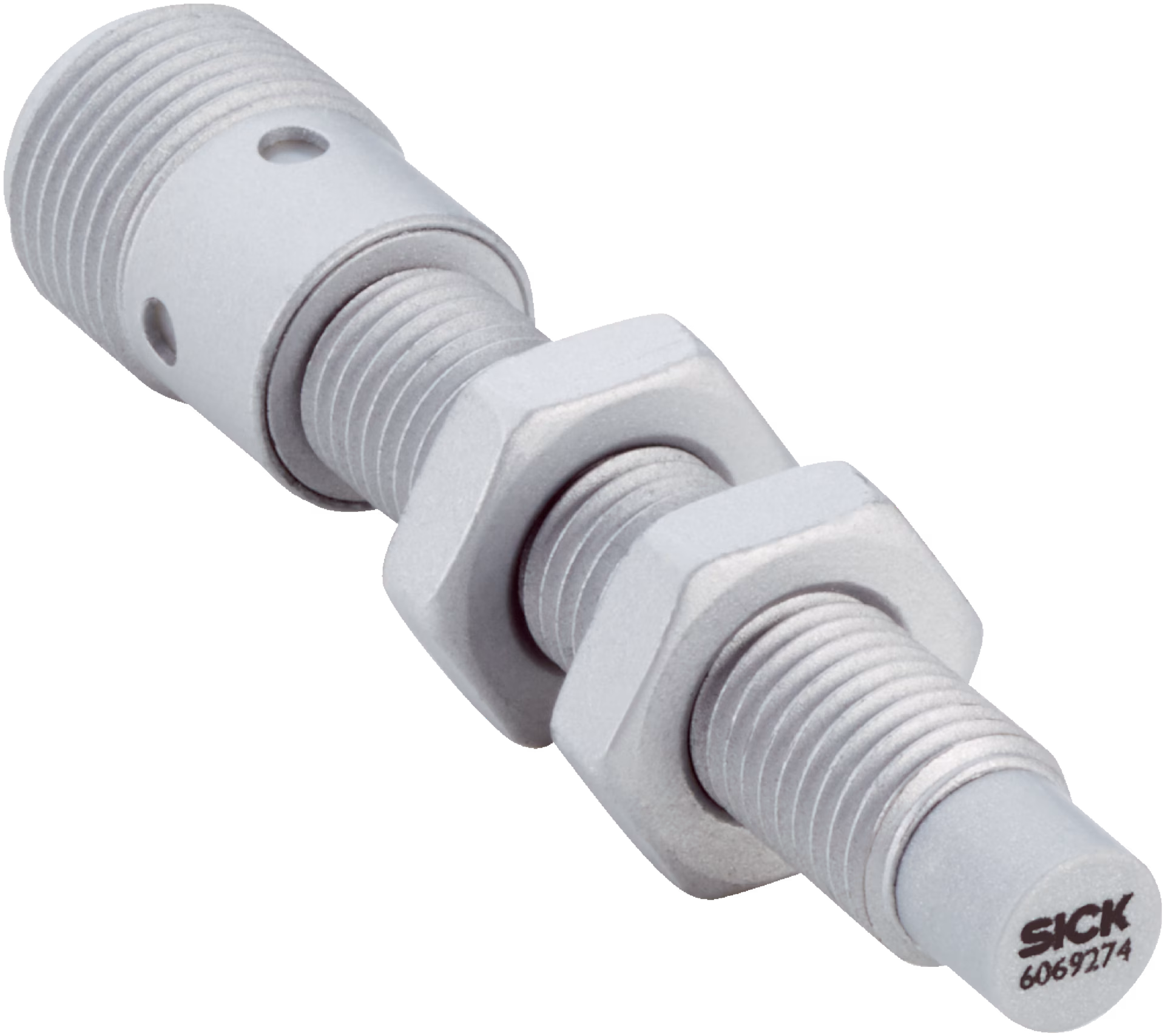

IMR08-06NPSTC0S
Selling Points
- 1High accuracy in detecting metal objects with minimal interference.
- 2Compact design for easy integration into various industrial applications.
- 3Robust construction for long-lasting performance in harsh environments.
- 4Easy installation and setup with minimal technical expertise required.
- 5Compatible with a wide range of industrial automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Housing | Metric | Housing | Standard design |
Thread size | M8 | Diameter | Ø 8 mm |
Sensing range Sn | 6 mm | Safe sensing range Sa | 4.8 mm |
Installation type | Non-flush | Switching frequency | 1,000 Hz |
Connection type | Male connector M12, 4-pin | Switching output | PNP |
Output function | NO | Electrical wiring | DC 3-wire |
Enclosure rating | IP68 | Special features | Reduction factor 1, Weld immune, triple sensing range |
Special applications | Welding range, Difficult application conditions | Items supplied | Mounting nut, brass, PTFE coating (2x)#!#Washer, brass, PTFE coating, with locking teeth (2x) |
Supply voltage | 10 V DC ... 30 V DC | Ripple | ≤ 10 % |
Voltage drop | ≤ 1.8 V | Hysteresis | 3 % ... 15 % |
Reproducibility | ≤ 2 % | Temperature drift (of Sr) | ≤ ± 10 % |
Continuous current Ia | ≤ 150 mA | No load current | ≤ 15 mA |
Off-state current | ≤ 0.1 mA | Short-circuit protection | ✔ |
Magnetic field strength | ≤ 100 mT | Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
Ambient operating temperature | –25 °C ... +70 °C | Housing material | PTFE coating, stainless steel |
Sensing face material | Plastic, PTFE coating | Housing length | 57 mm |
Thread length | 35 mm | Tightening torque, max. | Typ. 5 Nm |
Protection class | II | UL File No. | E191603 |
Note | The values are reference values which may vary | Reduction factor | Reduction factor 1 |
Stainless steel (V2A, 304) | 1 | Aluminum (Al) | 1 |
Copper (Cu) | 1 | Brass (Br) | 1 |
Remark | Associated graphic see "Installation" | A | 8 mm |
B | 16 mm | C | 8 mm |
D | 18 mm | E | 12 mm |
F | 36 mm | G | 24 mm |
Specifications may be subject to change without notice
