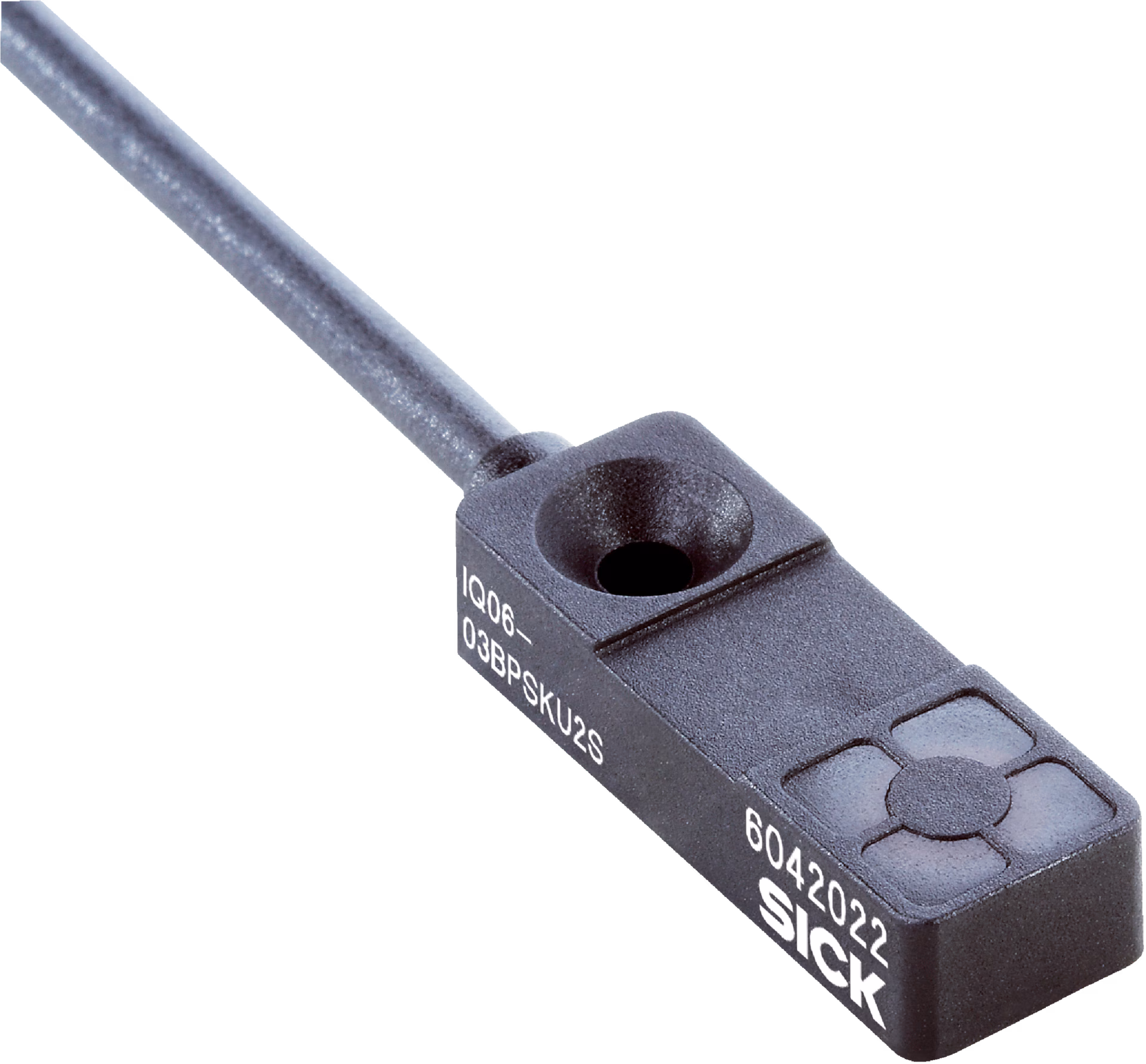

High-Precision Inductive Proximity Sensor IQ06-03BPOKU2S by SICK

Selling Points

1High Precision Detection: Detects objects with utmost precision, unaffected by material type.
2Robust Design: Resistant to oils, cooling lubricants, and extreme temperatures, ensuring long-term reliability.
3Versatile Applications: Suitable for metals, powders, granules, liquids, and solids in various industrial zones.
4Enhanced Safety: Certified by Ecolab and meets FDA standards for use in hygienic and washdown zones.
5IO-Link Compatibility: Facilitates easy configuration and diagnostics through advanced communication options.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Housing	Rectangular	Dimensions (W x H x D)	10 mm x 30 mm x 6 mm
Sensing range Sn	3 mm	Safe sensing range Sa	2.43 mm
Installation type	Flush	Switching frequency	1,000 Hz
Connection type	Cable, 3-wire, 2 m	Switching output	PNP
Output function	NC	Electrical wiring	DC 3-wire
Enclosure rating	IP67	Supply voltage	10 V DC ... 30 V DC
Ripple	≤ 10 %	Voltage drop	< 1.5 V
Time delay before availability	≤ 10 ms	Hysteresis	1 % ... 15 %
Reproducibility	± 1 %	Temperature drift (of Sr)	± 10 %
EMC	According to EN 60947-5-2	Continuous current Ia	≤ 100 mA
Cable material	PUR	Conductor size	0.14 mm²
Cable diameter	Ø 3 mm	Short-circuit protection	✔
Shock and vibration resistance	30 g, 11 ms / 10 ... 55 Hz, 1 mm	Ambient operating temperature	–25 °C ... +70 °C
Housing material	Plastic, PA6	Sensing face material	Plastic, PA6
Tightening torque, max.	0.6 Nm	Note	The values are reference values which may vary
Stainless steel (V2A, 304)	Approx. 0.7	Aluminum (Al)	Approx. 0.4
Copper (Cu)	Approx. 0.3	Brass (Br)	Approx. 0.4
Remark	Associated graphic see "Installation"	A	1.5 mm
B	20 mm	C	10 mm
D	9 mm	E	0 mm
F	30 mm

Specifications may be subject to change without notice
