Product Model

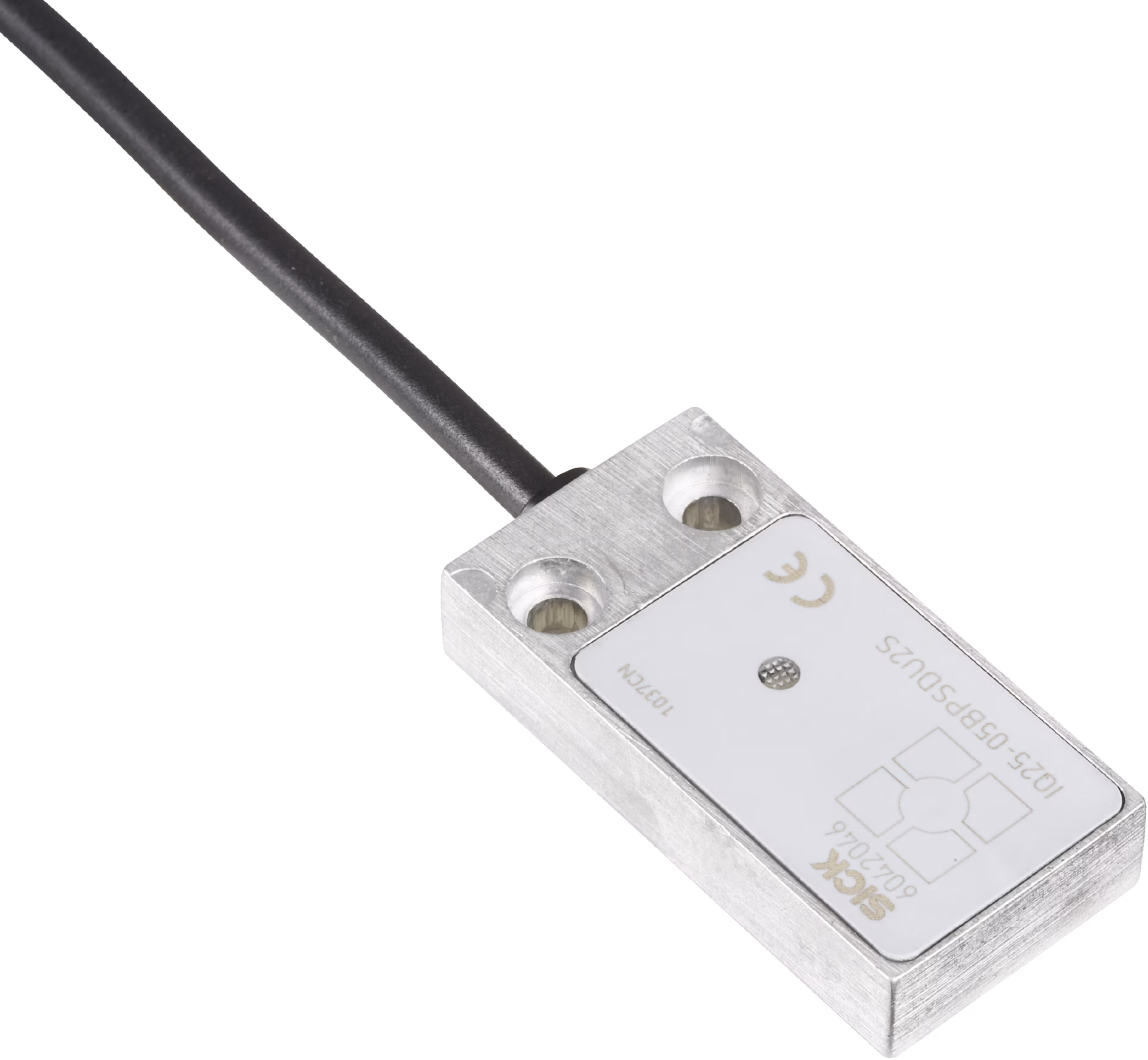

IQ25-05BPSDU2S
Selling Points
- 1High Precision Sensing Range: Detects objects up to 5mm with high accuracy.
- 2IP67 Rating: Ensures robust performance in harsh environments with an IP67 rating.
- 3500Hz Switching Frequency: Supports fast and efficient switching operations.
- 4Flush Installation: Easy to integrate into space-constrained applications.
- 5PNP Output Function: Provides a reliable digital switching output type.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Housing | Rectangular | Dimensions (W x H x D) | 25 mm x 50 mm x 10 mm |
Sensing range Sn | 5 mm | Safe sensing range Sa | 4.05 mm |
Installation type | Flush | Switching frequency | 500 Hz |
Connection type | Cable, 3-wire, 2 m | Switching output | PNP |
Output function | NO | Electrical wiring | DC 3-wire |
Enclosure rating | IP67 | Supply voltage | 10 V DC ... 30 V DC |
Ripple | ≤ 15 % | Voltage drop | ≤ 2.5 V |
Time delay before availability | ≤ 50 ms | Hysteresis | 1 % ... 15 % |
Reproducibility | ± 5 % | Temperature drift (of Sr) | ± 10 % |
EMC | According to EN 60947-5-2 | Continuous current Ia | ≤ 200 mA |
Cable material | PUR | Conductor size | 0.34 mm² |
Cable diameter | Ø 4.6 mm | Short-circuit protection | ✔ |
Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm | Ambient operating temperature | –25 °C ... +70 °C |
Housing material | Aluminum, GD Zn | Sensing face material | Plastic, PBT |
Note | The values are reference values which may vary | Stainless steel (V2A, 304) | Approx. 0.7 |
Aluminum (Al) | Approx. 0.4 | Copper (Cu) | Approx. 0.3 |
Brass (Br) | Approx. 0.4 | Remark | Associated graphic see "Installation" |
A | 0 mm | B | 25 mm |
C | 25 mm | D | 15 mm |
E | 0 mm | F | 75 mm |
Specifications may be subject to change without notice
