Product Model

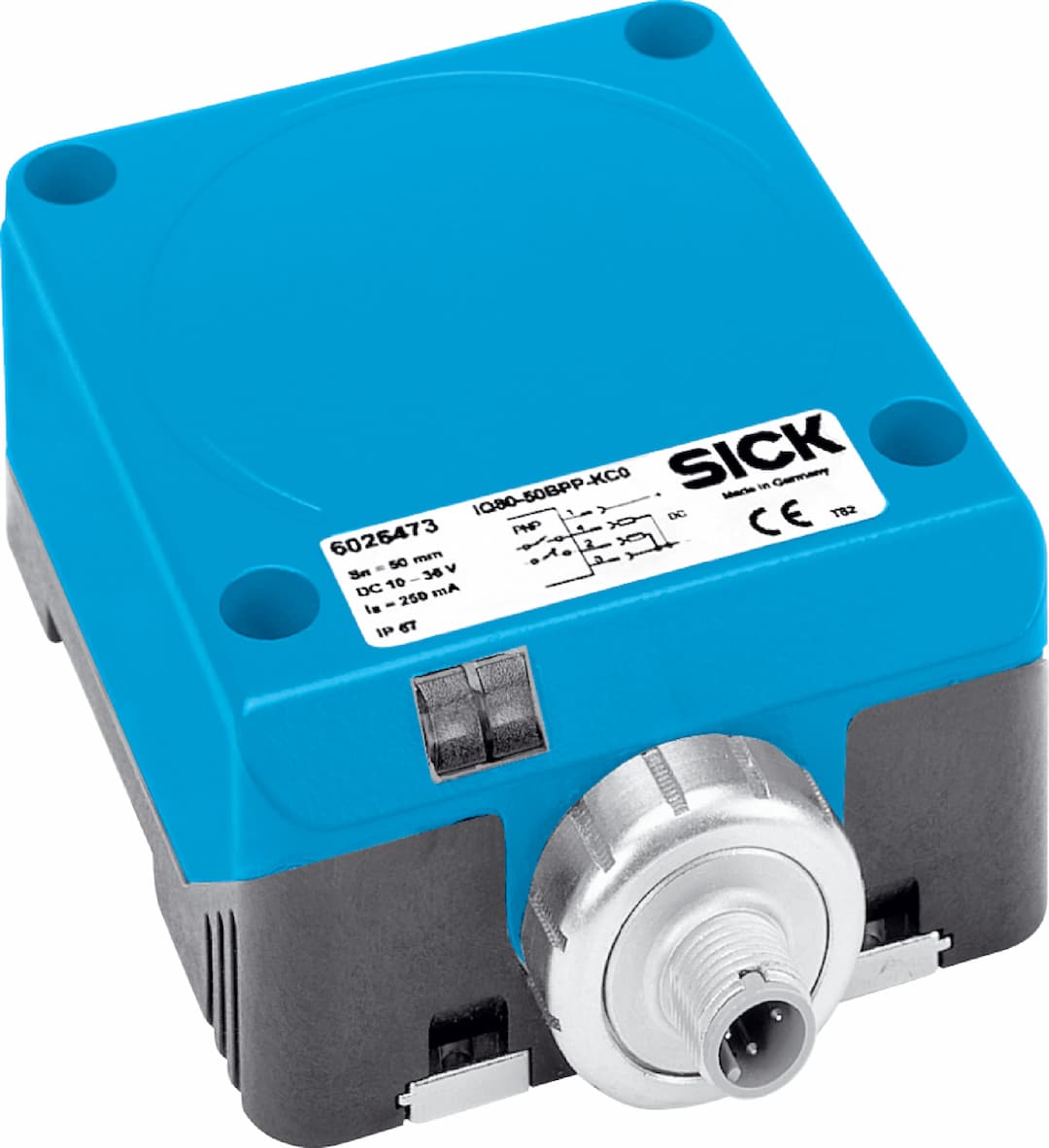

IQ80-50BPP-KC0
Selling Points
- 1High Precision Detection: Detects objects with utmost precision, unaffected by material type.
- 2Robust Design: Rectangular, standard design housing with dimensions 80 mm x 92 mm x 40 mm.
- 3Wide Sensing Range: 50 mm sensing range and 40.5 mm safe sensing range for reliable operation.
- 4Flexible Installation: Supports flush, non-flush, and overflush installations for versatile use.
- 5Durable Connectivity: Equipped with a male connector M12, 4-pin for secure and reliable connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Housing | Rectangular | Housing | Standard design |
Dimensions (W x H x D) | 80 mm x 92 mm x 40 mm | Sensing range Sn | 50 mm |
Safe sensing range Sa | 40.5 mm | Installation type | Flush#!#Non-flush#!#Overflush |
Switching frequency | 70 Hz | Connection type | Male connector M12, 4-pin |
Switching output | PNP | Output function | Complementary |
Electrical wiring | DC 4-wire | Enclosure rating | IP67 |
Supply voltage | 10 V DC ... 36 V DC | Voltage drop | ≤ 2.5 V |
Hysteresis | 3 % ... 20 % | Temperature drift (of Sr) | ± 15 % |
EMC | According to EN 60947-5-2 | Continuous current Ia | ≤ 250 mA |
Short-circuit protection | ✔ | Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
Ambient operating temperature | –25 °C ... +70 °C | Housing material | Zinc diecast, GD Zn |
Sensing face material | Plastic, PPE | Note | The values are reference values which may vary |
Stainless steel (V2A, 304) | Approx. 0.85 | Aluminum (Al) | Approx. 0.46 |
Copper (Cu) | Approx. 0.38 | Brass (Br) | Approx. 0.48 |
Remark | Associated graphic see "Installation" | A | 0 mm |
B | 80 mm | C | 80 mm |
D | 150 mm | E | 0 mm |
F | 400 mm |
Specifications may be subject to change without notice
