Product Model

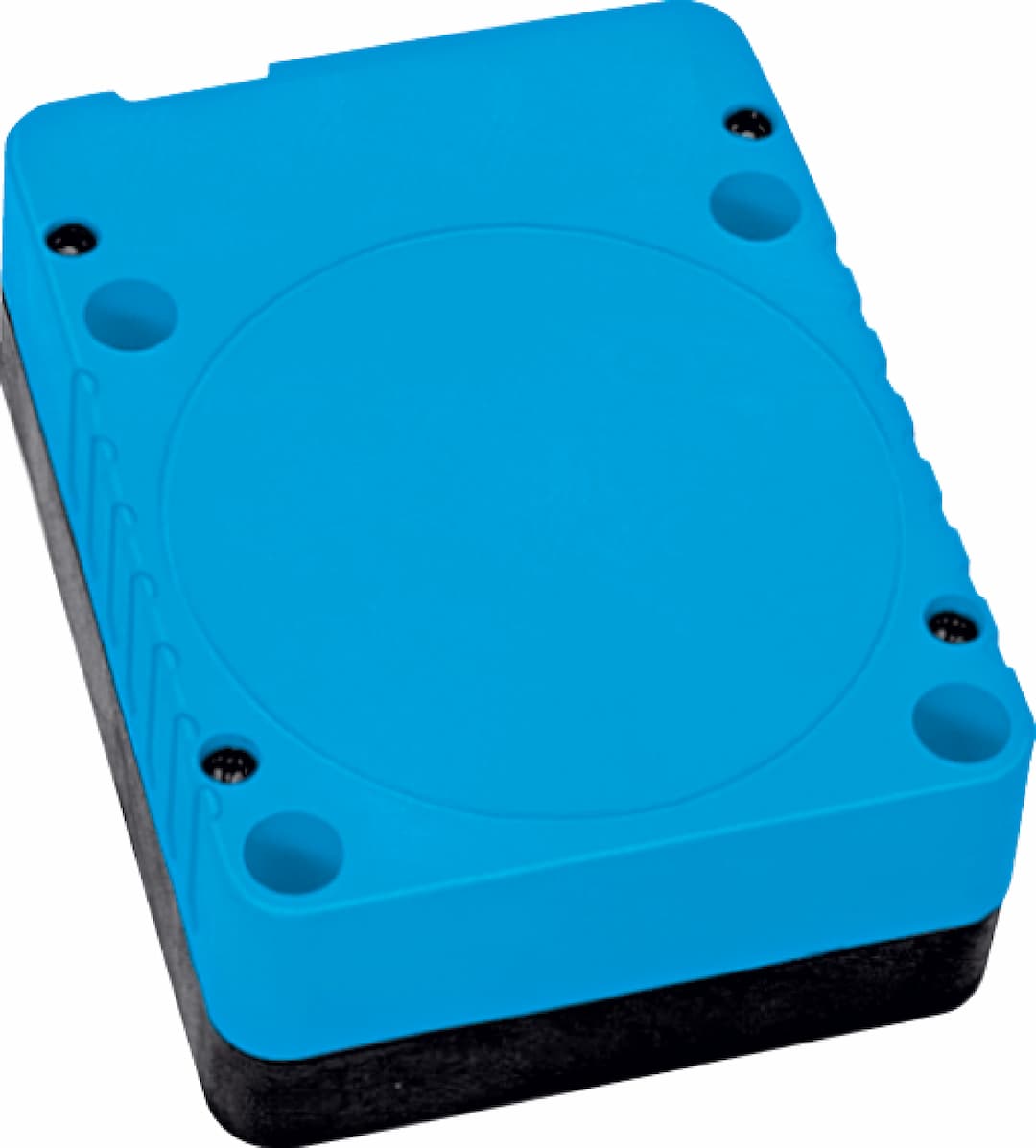

IQ80-60NPP-KK0
Selling Points
- 1Detect objects up to 60 mm with precise accuracy.
- 2Built with a rectangular housing, ensuring durability and resistance to shock and vibration.
- 3Easily switch between NO and NC functions to suit your application needs.
- 4Operate at 100 Hz for fast and reliable detection.
- 5Withstand harsh industrial conditions, including dust and water, for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Housing | Rectangular | Housing | Standard design |
Dimensions (W x H x D) | 80 mm x 105 mm x 40 mm | Sensing range Sn | 60 mm |
Safe sensing range Sa | 48.6 mm | Installation type | Non-flush |
Switching frequency | 100 Hz | Connection type | Terminal connection with M20 gland |
Switching output | PNP | Output function | NC or NO |
Output characteristic | Wire configurable | Electrical wiring | DC 3-wire |
Enclosure rating | IP65 | Supply voltage | 10 V DC ... 36 V DC |
Voltage drop | ≤ 2.5 V | Hysteresis | 1 % ... 15 % |
Temperature drift (of Sr) | ± 10 % | EMC | According to EN 60947-5-2 |
Continuous current Ia | ≤ 250 mA | Off-state current | ≤ 0.5 mA |
Cable gland clamping area | M20 1.5 | Wire size | ≤ 2.5 mm² |
Short-circuit protection | ✔ | Power-up pulse protection | ✔ |
Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm | Ambient operating temperature | –25 °C ... +80 °C |
Housing material | Plastic, PPE | Sensing face material | Plastic, PPE |
Note | The values are reference values which may vary | Stainless steel (V2A, 304) | Approx. 0.7 |
Aluminum (Al) | Approx. 0.3 | Copper (Cu) | Approx. 0.2 |
Brass (Br) | Approx. 0.4 | Remark | Associated graphic see "Installation" |
A | 160 mm | B | 160 mm |
C | 80 mm | D | 150 mm |
E | 40 mm | F | 480 mm |
Specifications may be subject to change without notice
