Product Model

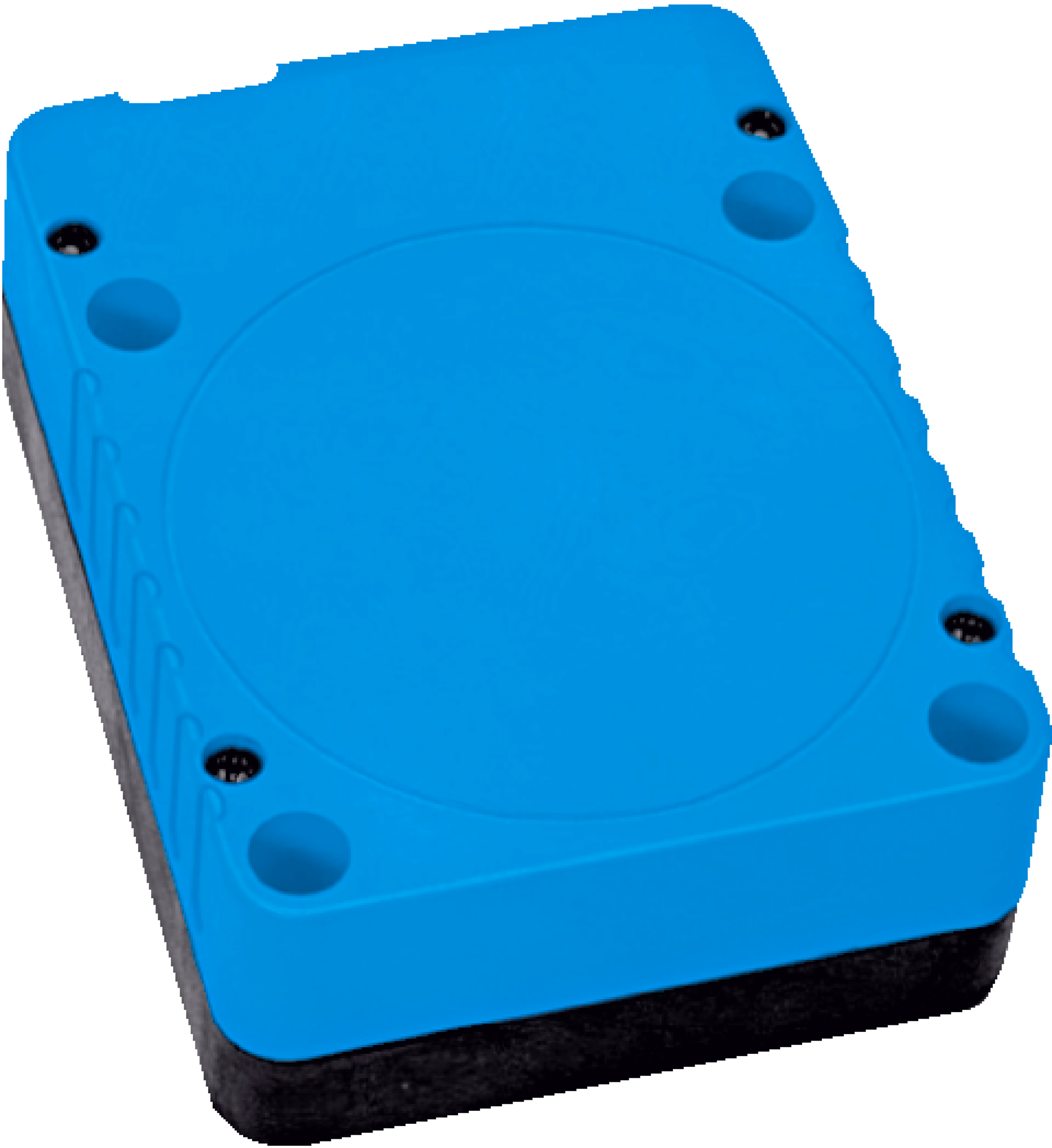

IQ80-60NUP-KK0
Selling Points
- 1Precise Sensing Range: The IQ80-60NUP-KK0 offers a sensing range of 60 mm and a safe sensing range of 48.6 mm, ensuring accurate detection.
- 2Robust Design: Constructed with a rectangular housing made of plastic (PPE), it provides a standard design with dimensions of 80 mm x 105 mm x 40 mm.
- 3Wide Operating Temperature: Operates in ambient temperatures ranging from -25 °C to +80 °C, making it suitable for various industrial environments.
- 4High Switching Frequency: Features a switching frequency of 4 Hz, ensuring reliable operation in demanding applications.
- 5IP65 Enclosure Rating: Compliant with EN 60529, the sensor is protected against dust and water, ensuring durability in harsh conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Housing | Rectangular | Housing | Standard design |
Dimensions (W x H x D) | 80 mm x 105 mm x 40 mm | Sensing range Sn | 60 mm |
Safe sensing range Sa | 48.6 mm | Installation type | Non-flush |
Switching frequency | 4 Hz | Connection type | Terminal connection with M20 gland |
Switching output | PNP / NPN | Output function | NC or NO |
Output characteristic | Wire configurable | Electrical wiring | AC/DC 2-wire |
Enclosure rating | IP65 | Supply voltage | 20 V AC/DC ... 250 V AC/DC |
Voltage drop | ≤ 6.5 V (AC) | Hysteresis | 1 % ... 15 % |
Reproducibility | ≤ 10 % | Temperature drift (of Sr) | ± 10 % |
EMC | As per EN 55011, class B#!#According to EN 60947-5-2 | Continuous current Ia | ≤ 350 mA4)#!#≤ 250 mA5)#!#≤ 100 mA6) |
Off-state current | ≤ 2.5 mA (AC 250 V) | Minimum load current | > 5 mA |
Short-time withstand current | 2.2 A | Cable gland clamping area | M20 1.5 |
Wire size | ≤ 2.5 mm² | Short-circuit protection | — |
Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm | Ambient operating temperature | –25 °C ... +80 °C |
Housing material | Plastic, PPE | Sensing face material | Plastic, PPE |
Protection class | II | Rated insulation voltage Ui | 250 V AC |
Usage category | AC-1409)#!#DC-1310) | Contamination rating | 3 |
Rated impulse withstand voltage | 4 kV | Note | The values are reference values which may vary |
Stainless steel (V2A, 304) | Approx. 0.7 | Aluminum (Al) | Approx. 0.3 |
Copper (Cu) | Approx. 0.2 | Brass (Br) | Approx. 0.4 |
Remark | Associated graphic see "Installation" | A | 160 mm |
B | 160 mm | C | 80 mm |
D | 150 mm | E | 40 mm |
F | 480 mm |
Specifications may be subject to change without notice
