Product Model

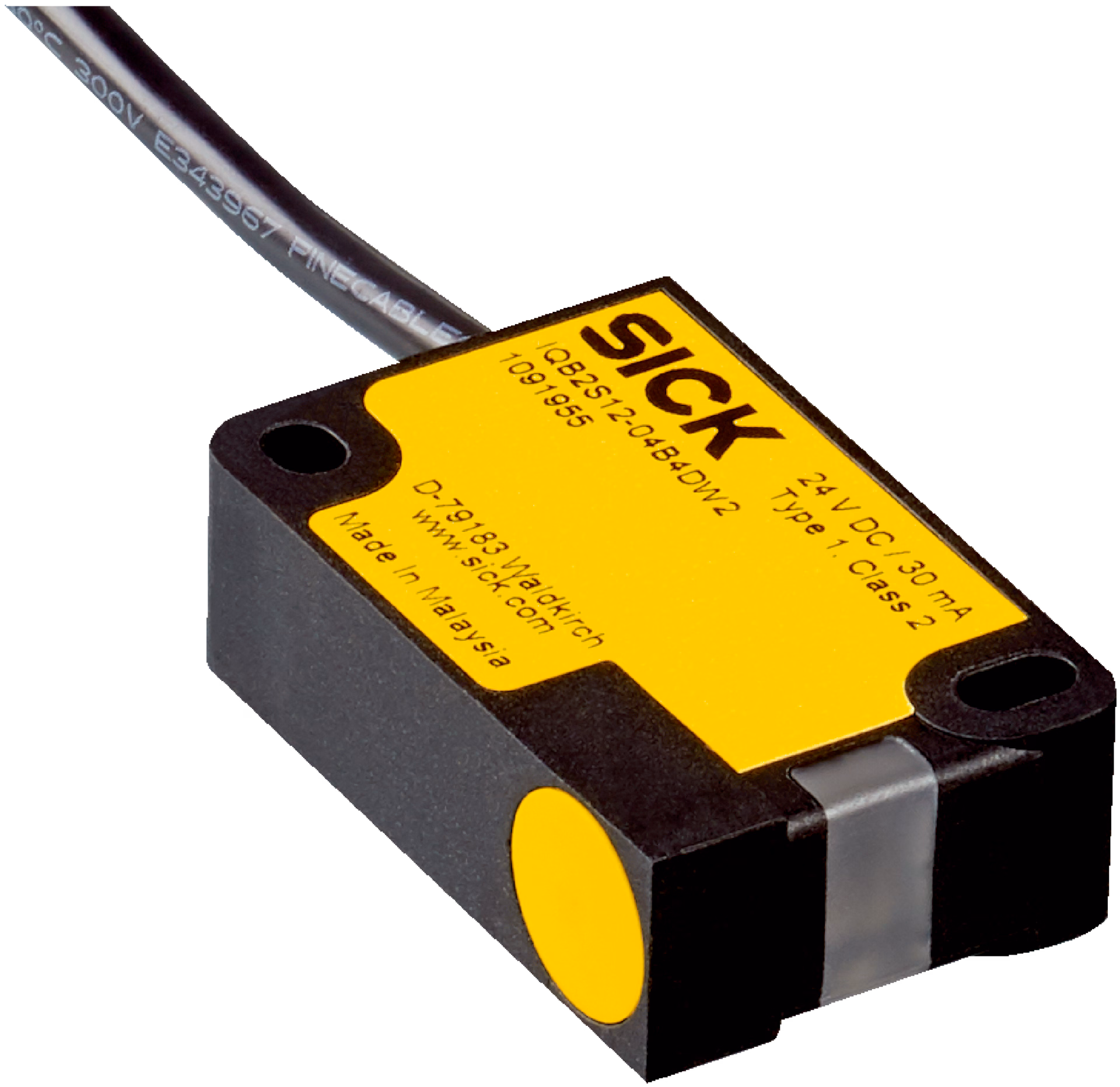

IQB2S12-04B4DW2
Selling Points
- 1Utilizes inductive sensing for reliable detection of metal objects without physical contact.
- 2Meets SIL2 safety integrity level (IEC 61508) and SILCL2 (EN 62061) standards for high safety performance.
- 3Designed for flush mounting, ensuring seamless integration into various industrial applications.
- 4Measures 12 mm x 40 mm x 26 mm, providing a compact footprint without compromising on functionality.
- 5Offers a sensing range of 4 mm, ensuring precise detection of actuating elements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Sensor principle | Inductive | Number of safe outputs | 2 |
Sensing range Sn | 4 mm | Safe switch on distance Sao | 3.2 mm |
Safe switch off distance Sar | 6 mm | Active sensor surfaces | 1 |
Actuation frequency | ≤ 100 Hz | Safe series connections | None, only individual wiring (with diagnostics) |
Connection type_Length of cable | 2 m | Connection type_Cable diameter | 3.9 mm |
Connection type_Conductor cross section | 0.25 mm² | Connection type_Bend radius (with fixed installation) | > 6 x cable diameter |
Connection type_Bend radius (with moving cable) | > 10 x cable diameter | Connection type_Cable material | PVC |
Connection type_Conductor material | Copper | IO-Link Safety_WCDT | ≤ 1 ms |
IO-Link Safety_OFDT | ≤ 20 ms | Display elements_Diagnostics indicator | ✔ |
Display elements_Status display | ✔ | Protection class | III (IEC 61140) |
Rated insulation voltage Ui | 28.8 V | Rated impulse withstand voltage Uimp | 1,500 V |
Supply voltage Vs | 24 V DC (19.2 V DC ... 28.8 V DC) | Power consumption | ≤ 20 mA |
Type of output | Self-monitoring semiconductor outputs (OSSDs) | Response time | ≤ 1 ms |
Release time | ≤ 2 ms | Risk time | ≤ 20 ms |
Switch-on time | 1 s | Design | Rectangular |
Dimensions | 12 mm x 40 mm x 26 mm | Material_Housing | VISTAL® |
Material_Sensor surface | VISTAL® | Material_Cable | PVC |
Installation type | Flush |
