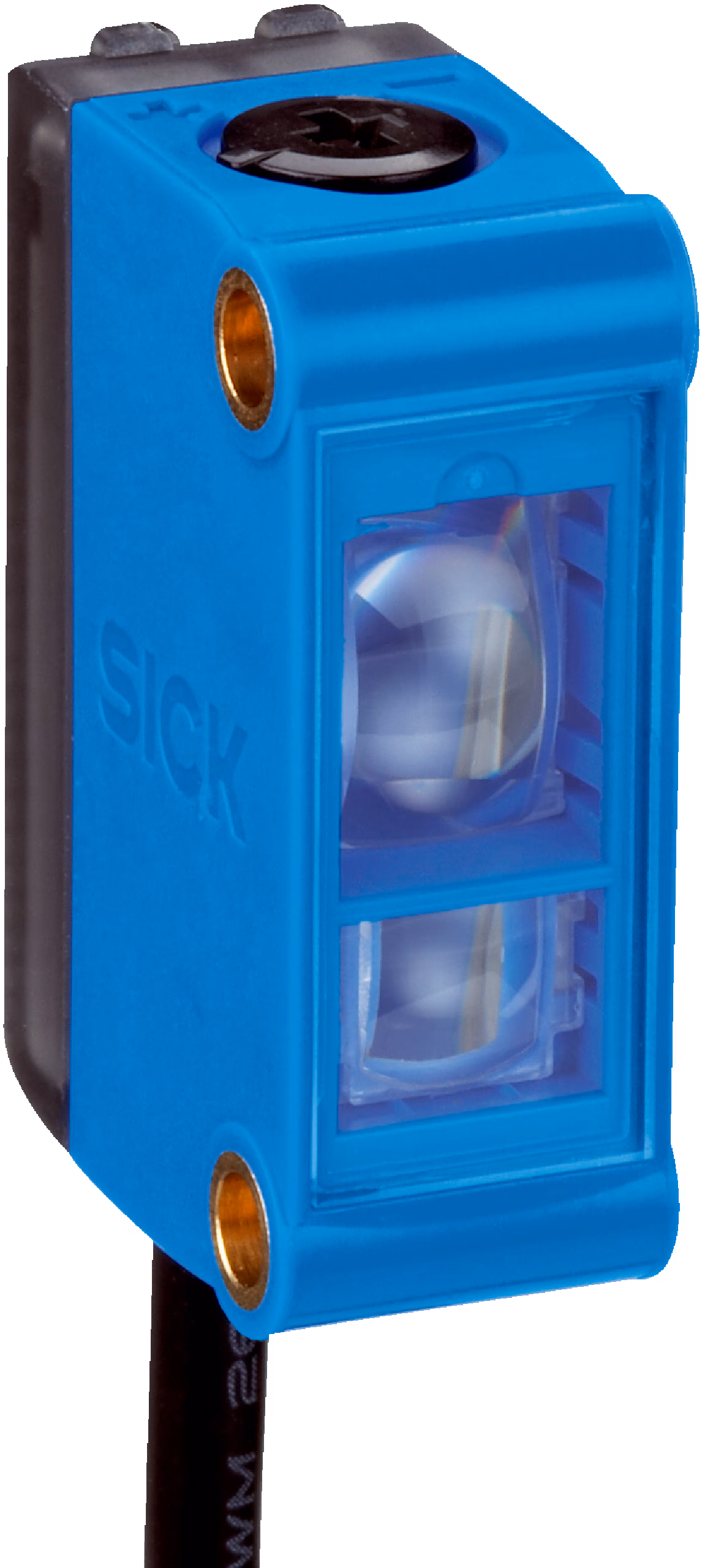

Product Model
KTM-MB31112P
Selling Points
- 1High-precision contrast detection for accurate object recognition.
- 2Automatic gloss adaptation for reliable detection on highly reflective objects.
- 3Sensing distance of 12.5 mm for versatile industrial use.
- 4Teach-in processes for flexible commissioning and stable performance.
- 5Integrated color mode and variable sensor adjustment for enhanced flexibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm | Sensing distance | ≤ 12.5 mm |
Sensing distance tolerance | ± 3 mm | Housing design | Small |
Light source | LED, white | Light emission | Long side of housing |
Light spot size | Ø 2 mm (12.5 mm) | Light spot direction | Round |
Receiving filters | None | Adjustment | Potentiometer, screw driver |
Supply voltage | 12 V DC ... 24 V DC | Ripple | ≤ 5 V |
Current consumption | < 50 mA | Switching frequency | 10 kHz |
Response time | 50 µs | Jitter | 25 µs |
Switching output | PNP, NPN | Switching output (voltage) | PNP: HIGH = U#!#≤ 2 V / LOW approx. 0 V, NPN: HIGH = approx. U#!#/ LOW ≤ 2 V |
Switching mode | Light/dark switching | Output current Imax. | 50 mA |
Time delay | None | Connection type | Cable with M12 male connector, 4-pin, 0.2 m |
Protection class | III | Circuit protection | UVconnections, reverse polarity protected#!#Output Q short-circuit protected#!#Interference pulse suppression |
Enclosure rating | IP67 | Weight | 20 g |
Housing material | ABS | Optics material | PMMA |
Indication | LED indicator green: power on#!#LED indicator, yellow: Status switching output Q | Connection type | Cable with M12 male connector, 4-pin, 0.2 m |
Pinouts_BN 1 | + (L+) | Pinouts_WH 2 | QNPN |
Pinouts_BU 3 | - (M) | Pinouts_BK 4 | QPNP |
Specifications may be subject to change without notice
