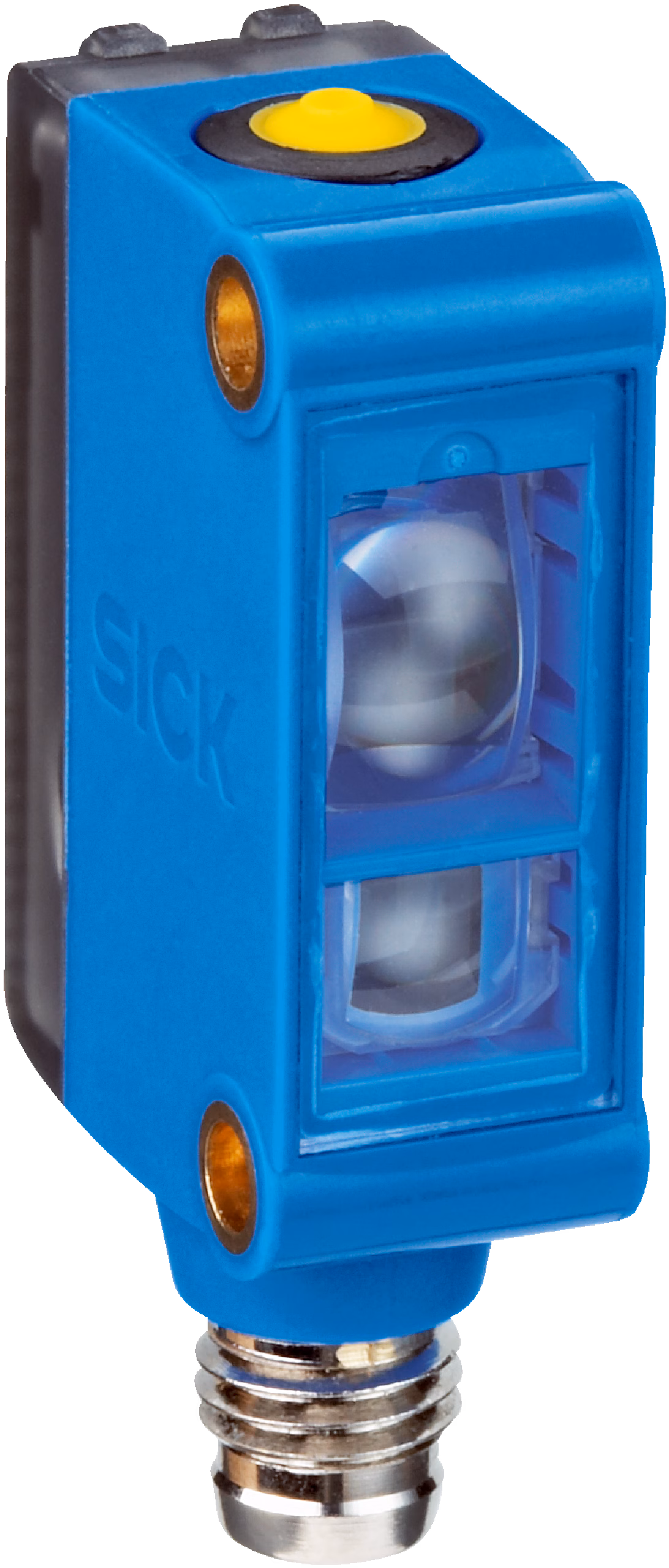

Product Model
KTM-WP11101PS08
Selling Points
- 1High-precision NPN switching output for reliable detection.
- 2LED light source for consistent illumination.
- 3Compact design with a 12.5 mm sensing distance.
- 4Durable construction for long-lasting performance.
- 5Easy integration into various industrial automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm | Sensing distance | ≤ 12.5 mm |
Sensing distance tolerance | ± 3 mm | Housing design | Small |
Light source | LED, RGB | Wave length | 470 nm, 525 nm, 625 nm |
Light emission | Long side of housing | Light spot size | 1.6 mm x 9.5 mm |
Light spot direction | Vertical | Receiving filters | None |
Adjustment | Teach-in button | Teach-in mode | 2-point teach-in static/dynamic + proximity to mark#!#ET: Teach-in dynamic: Q-signal switches during teach-in (up to 10 ms time delay for 1st mark) |
Supply voltage | 12 V DC ... 24 V DC | Ripple | ≤ 5 V |
Current consumption | < 50 mA | Switching frequency | 15 kHz |
Response time | 32 µs | Jitter | 15 µs |
Switching output | PNP | Switching output (voltage) | PNP: HIGH = U#!#≤ 2 V / LOW approx. 0 V |
Switching mode | Dark switching | Output current Imax. | 50 mA |
Retention time (ET) | 28 ms, non-volatile memory | Time delay | None |
Connection type | Male connector M8, 4-pin | Protection class | III |
Circuit protection | UVconnections, reverse polarity protected#!#Output Q short-circuit protected#!#Interference pulse suppression | Enclosure rating | IP67 |
Weight | 20 g | Housing material | ABS |
Optics material | PMMA | Indication | LED indicator green: power on#!#LED indicator, yellow: Status switching output Q |
Connection type | Male connector M8, 4-pin | Pinouts_BN 1 | + (L+) |
Pinouts_WH 2 | ET | Pinouts_BU 3 | - (M) |
Pinouts_BK 4 | Q |
Specifications may be subject to change without notice
