Product Model

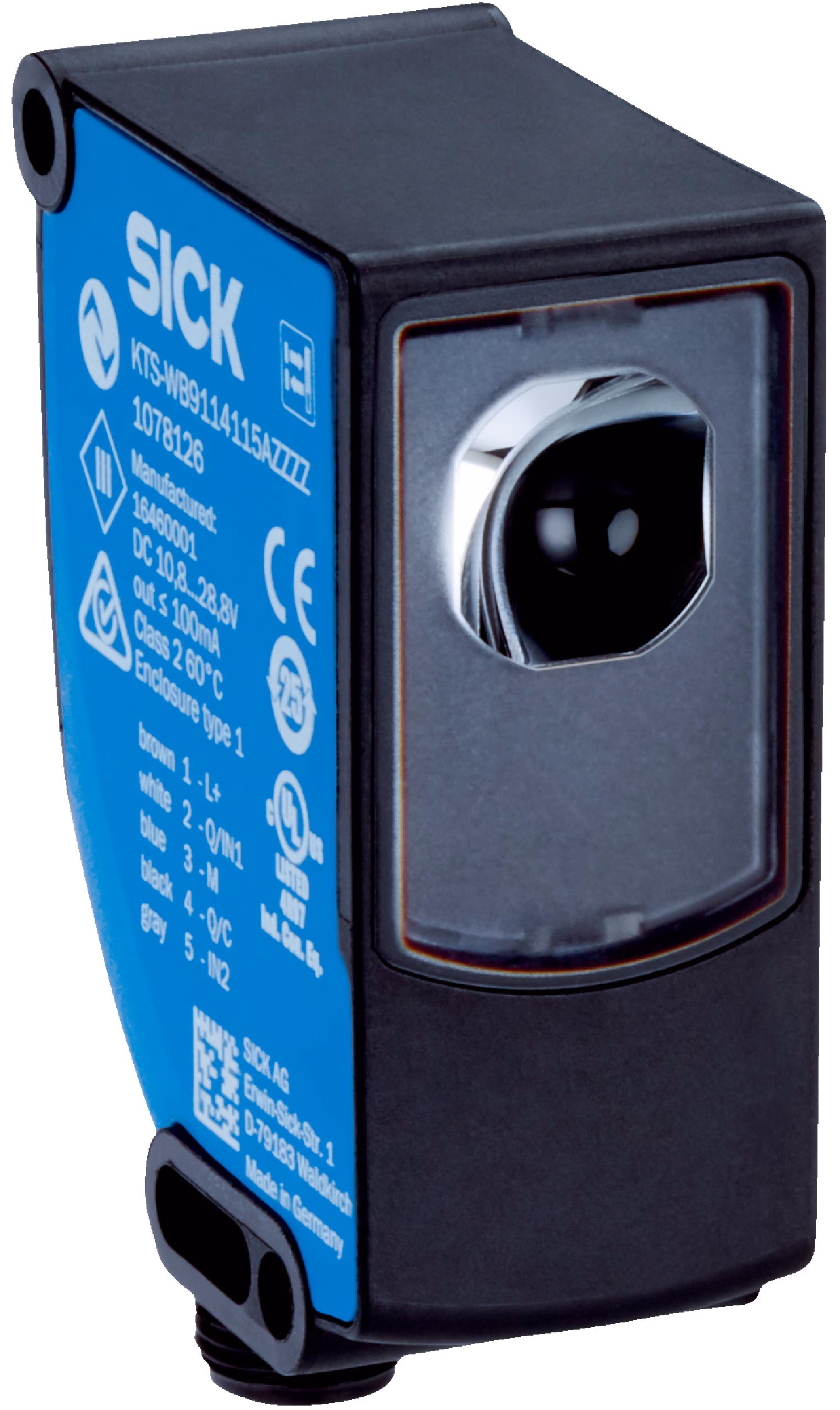

KTS-WB9214115UZZZZ
Selling Points
- 1High Precision Detection: Accurately detects objects with a sensing distance of ≤13 mm and ±5 mm tolerance.
- 2Adjustable Delay Time: Allows for customizable delay times to suit different application requirements.
- 32-Point Teach-In: Simplifies setup with a 2-point teach-in mode for easy calibration.
- 4Compact Design: Measures 26 mm x 62 mm x 47.5 mm, ideal for space-constrained installations.
- 5Light/Dark Switching Output: Provides clear output signals based on light and dark conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Special applications | Standard | Device type | Standard |
Dimensions (W x H x D) | 26 mm x 62 mm x 47.5 mm | Sensing distance | ≤ 13 mm |
Sensing distance tolerance | ± 5 mm | Housing design | Middle |
Light source | LED, RGB | Wave length | 470 nm, 525 nm, 625 nm |
Light emission | Long side of housing | Light spot size | 3.8 mm x 0.9 mm |
Light spot direction | Horizontal | Receiving filters | None |
Teach-in mode | 1-point teach-in, 2-point teach-in, teach-in dynamic, auto mode | Output function | Light/dark switching |
Delay time | Adjustable | Special features | - |
Delivery status | 2-point teach-in | Parameter presettings | None |
Setting the key lock | Standard | Supply voltage | 10.8 V DC ... 28.8 V DC |
Ripple | ≤ 5 V | Current consumption | < 100 mA |
Switching frequency | 50 kHz | Response time | 10 µs |
Jitter | 5 µs | Switching output | Push-pull: PNP/NPN |
Switching output (voltage) | Push-pull: PNP/NPN HIGH = U#!#- 3 V/LOW ≤ 3 V | Output current Imax. | 100 mA |
Input, teach-in (ET) | Teach: U = 10 V ... < V | Input, blanking input (AT) | Blanked: U = 10 V ... < Uv |
Input, fine/coarse (F/C) | Coarse: U = 10 V ... < Uv | Input, light/dark (L/D) | Light: U = 10 V ... < Uv |
Retention time (ET) | 25 ms, non-volatile memory | Connection type | Male connector M12, 5-pin |
Protection class | III | Circuit protection | UVconnections, reverse polarity protected#!#Output Q short-circuit protected#!#Interference pulse suppression |
Enclosure rating | IP67 | Weight | 68 g |
Housing material | VISTAL® | Optics material | COP |
Analog output_Number | 1 | Analog output_Type | Voltage output |
Analog output_Voltage | 0 V ... 10 V | Digital output_Number | 1 |
Digital input_Number | 1 |
