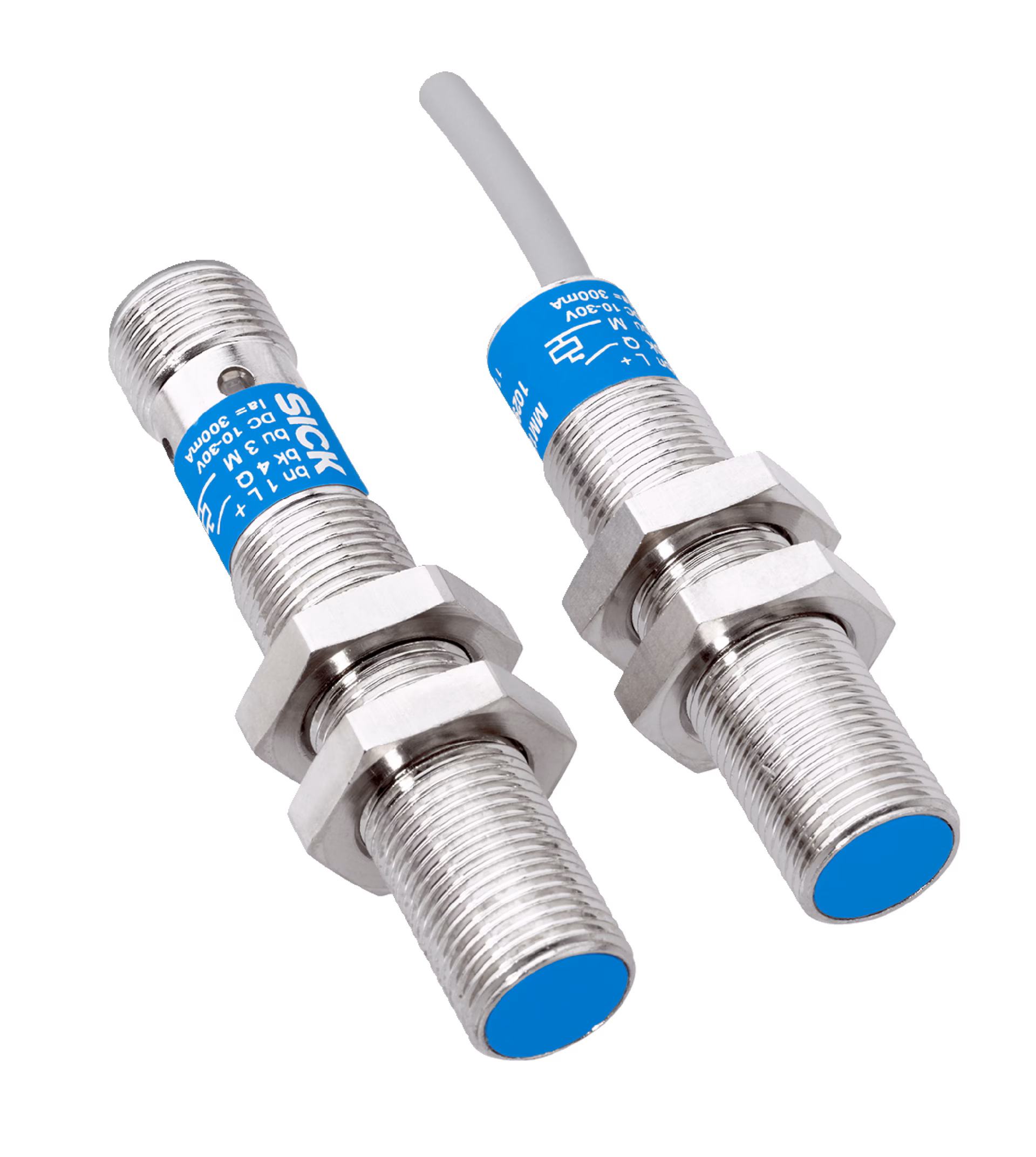

Product Model
MM12-90APS-ZU0
Selling Points
- 1High Precision Detection: Accurately detects objects within a 90 mm sensing range.
- 2Robust Design: IP67-rated, ensuring durability in harsh environments.
- 3Easy Installation: Compact cylindrical housing with M12x1 thread for seamless integration.
- 4Versatile Connectivity: 3-wire DC cable, 2 meters long, for flexible setup options.
- 5Reliable Performance: Operates at 10 V DC to 30 V DC, with a switching frequency of 1,000 Hz.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Housing | Metric | Housing | Advanced |
Thread size | M12 x 1 | Diameter | Ø 12 mm |
Sensing range Sn | 5 mm ... 90 mm | Safe sensing range Sa | 72.9 mm |
Magnetic sensitivity | 0.6 mT | Switching frequency | 1,000 Hz |
Connection type | Cable, 3-wire, 2 m | Switching output | PNP |
Output function | NO | Electrical wiring | DC 3-wire |
Magnetic alignment | Axial | Enclosure rating | IP67 |
Items supplied | Mounting nut, brass, nickel-plated (2x) | Supply voltage | 10 V DC ... 30 V DC |
Ripple | ≤ 10 % | Voltage drop | ≤ 2.2 V |
Current consumption | 10 mA | Time delay before availability | ≤ 30 ms |
Hysteresis | ≤ 25 % | Reproducibility | ≤ 1 % |
Temperature drift (of Sr) | ± 10 % | EMC | According to EN 60947-5-2 |
Continuous current Ia | ≤ 200 mA | Cable material | PUR |
Reverse polarity protection | Yes | Short-circuit protection | Yes |
Power-up pulse protection | ✔ | Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
Ambient operating temperature | –25 °C ... +75 °C | Housing material | Metal, Nickel-plated brass |
Housing length | 50 mm | Thread length | 40 mm |
Tightening torque, max. | 7 Nm |
Specifications may be subject to change without notice
