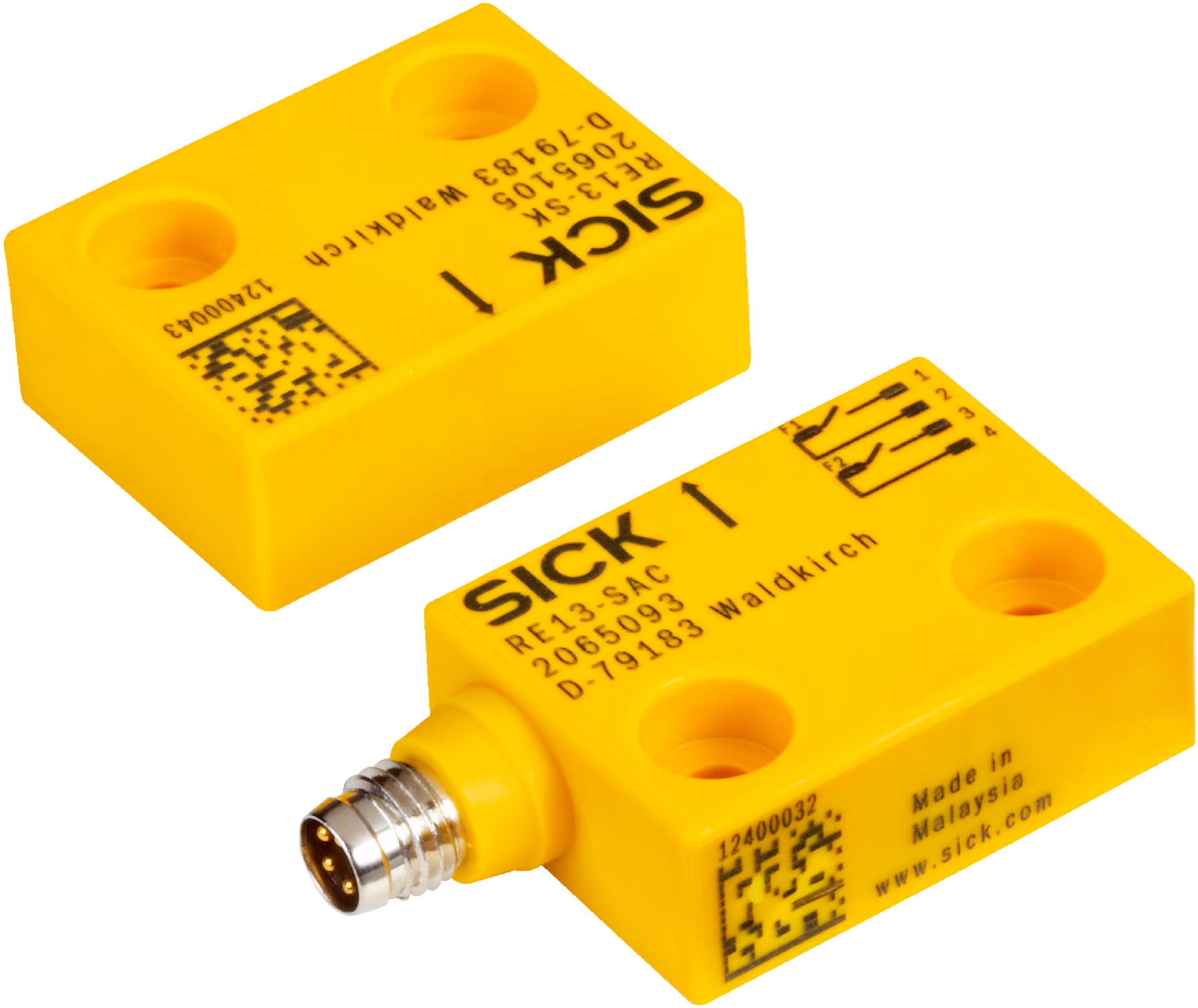

Product Model
RE13-SAC
Selling Points
- 1Reliable Non-Contact Door Monitoring: The SICK RE13-SAC ensures safe and accurate door monitoring without physical contact.
- 2High Hygiene Standards: Designed for applications requiring high hygiene standards, making it perfect for cleanroom environments.
- 3Robust Environmental Conditions: Operates reliably under severe pollution and adverse environmental conditions.
- 4Durable Design: Constructed with VISTAL® housing material, ensuring long service life and low maintenance.
- 5Easy Installation: Space-saving installation method with plug connector, M8, 4-pin connection type.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
System part | Sensor with actuator | Sensor principle | Magnetic |
Number of N/O contacts | 2 | Number of N/C contacts | 0 |
Number of signaling contacts | 0 | Safe switch on distance Sao | 7 mm |
Safe switch off distance Sar | 20 mm | Active sensor surfaces | 1 |
Actuation directions | 3 | Safe series connections | None, only individual wiring (with diagnostics) |
Connection type_Coupling nut material | Nickel-plated brass | Type of output | Reed contacts |
Switching voltage | ≤ 30 V DC | Switching current | ≤ 100 mA |
Design | Rectangular | Dimensions (W x H x D) | 26 mm x 36 mm x 13 mm |
Weight | 0.1 kg | Housing material | VISTAL® |
Specifications may be subject to change without notice
