Product Model

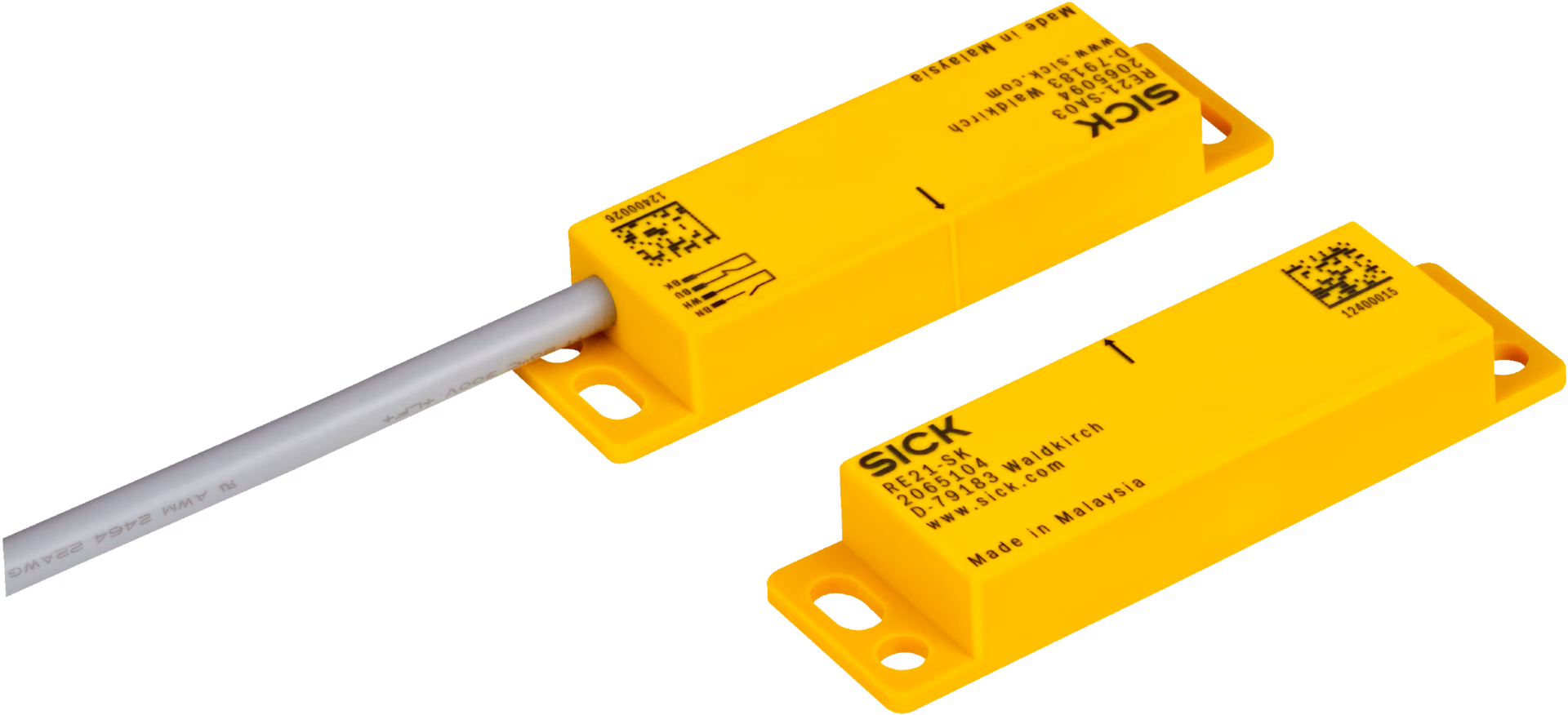

RE21-SA05
Selling Points
- 1Magnetic Sensor Principle: Utilizes magnetic sensor technology for reliable and precise operation.
- 2IP67 Rating: Ensures robust protection against dust and water, making it suitable for harsh environments.
- 3Wide Operating Temperature Range: Operates effectively between -30°C and +60°C, accommodating various industrial conditions.
- 4Low-Level Coding: Supports low-level coding (EN ISO 14119) for easy integration with safety-related logic units.
- 5High Switching Reliability: With a B10d parameter of 2 x 10^7 switching cycles, it ensures long-lasting performance under small loads.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
System part | Sensor with actuator | Sensor principle | Magnetic |
Number of N/O contacts | 1 | Number of N/C contacts | 1 |
Number of signaling contacts | 0 | Safe switch on distance Sao | 6 mm |
Safe switch off distance Sar | 31 mm | Active sensor surfaces | 1 |
Actuation directions | 5 | Safe series connections | None, only individual wiring (with diagnostics) |
Connection type_Length of cable | 5 m | Connection type_Cable diameter | 5.8 mm |
Connection type_Conductor cross section | 0.25 mm² | Connection type_Bend radius (with fixed installation) | > 12 x cable diameter |
Connection type_Bend radius (with moving cable) | > 15 x cable diameter | Connection type_Cable material | PVC |
Connection type_Conductor material | Copper | Type of output | Reed contacts |
Switching voltage | ≤ 30 V DC | Switching current | ≤ 400 mA |
Design | Rectangular | Dimensions (W x H x D) | 25 mm x 88 mm x 13 mm |
Weight | 0.3 kg | Housing material | VISTAL® |
Specifications may be subject to change without notice
