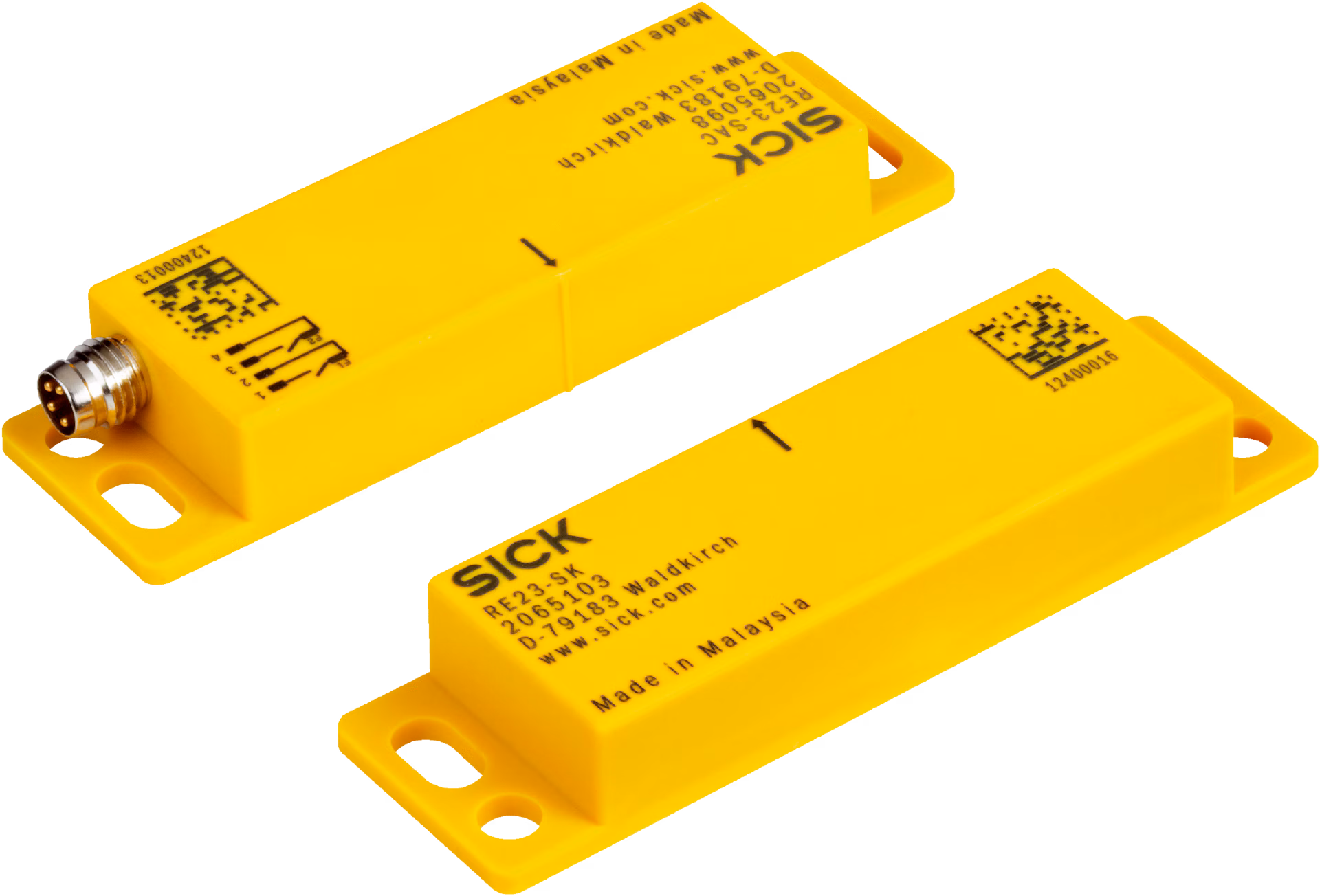

Product Model
RE23-SAC
Selling Points
- 1Designed for areas requiring high hygiene standards, making it perfect for contaminated or sensitive environments.
- 2Utilizes a magnetic sensor principle for reliable and precise detection.
- 3Ensures robust protection against dust and water, with an IP67 rating for reliable operation in harsh conditions.
- 4Features a compact, rectangular housing made of glass-fibre reinforced PPS for durability and ease of installation.
- 5Includes built-in LED response indicators for easy diagnostics and troubleshooting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
System part | Sensor with actuator | Sensor principle | Magnetic |
Number of N/O contacts | 2 | Number of N/C contacts | 0 |
Number of signaling contacts | 0 | Safe switch on distance Sao | 9 mm |
Safe switch off distance Sar | 22 mm | Active sensor surfaces | 1 |
Actuation directions | 3 | Safe series connections | With Flexi Loop (with diagnostics) |
Connection type_Coupling nut material | Nickel-plated brass | Type of output | Reed contacts |
Switching voltage | ≤ 30 V DC | Switching current | ≤ 100 mA |
Design | Rectangular | Dimensions (W x H x D) | 25 mm x 88 mm x 13 mm |
Weight | 0.1 kg | Housing material | VISTAL® |
Specifications may be subject to change without notice
