Product Model

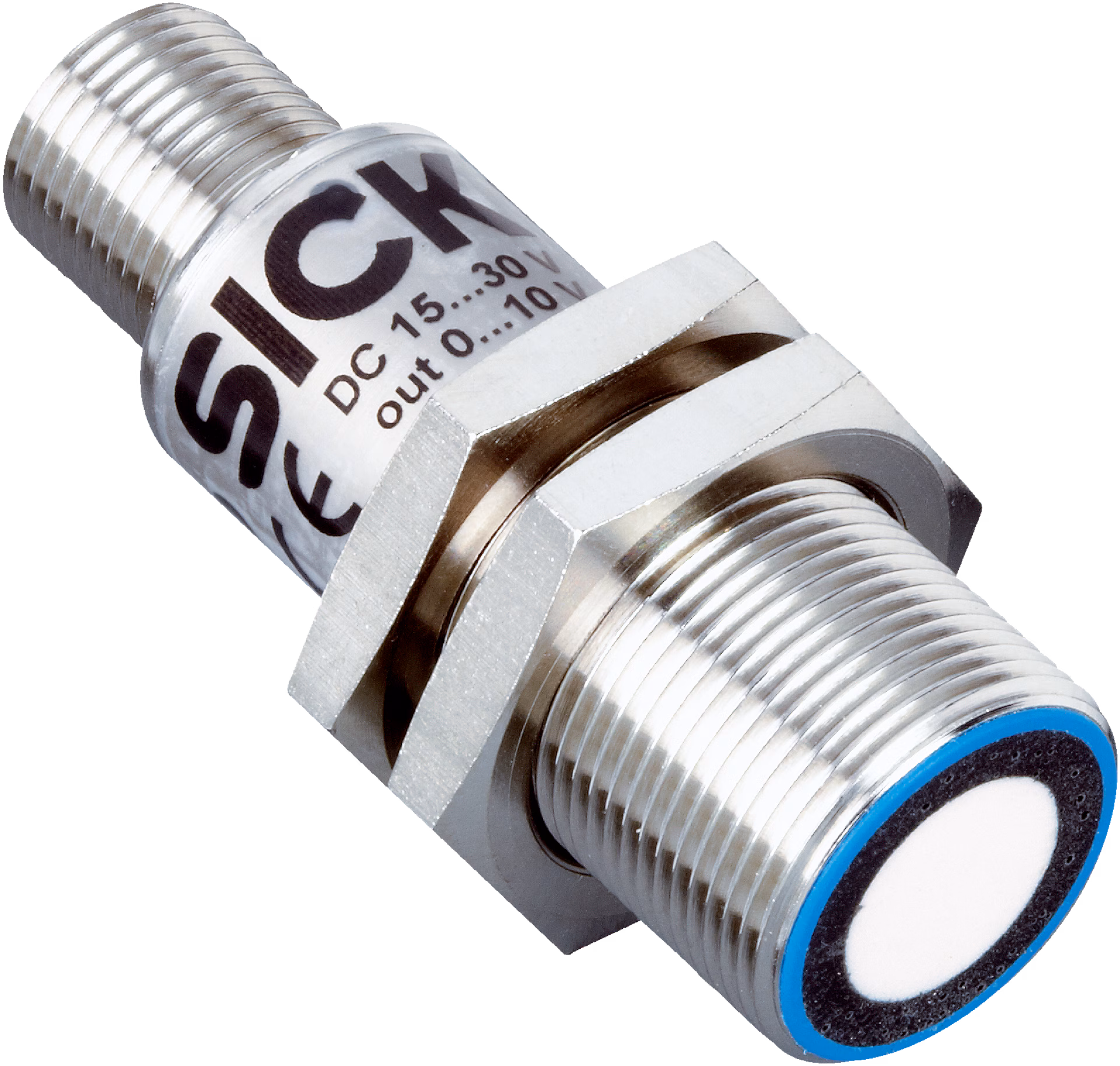

UM18-21112E211
Selling Points
- 1High accuracy with ±0.15% repeatability and ±1% accuracy.
- 2Versatile digital outputs including 2 x push-pull: PNP/NPN (100 mA) and IO-Link V1.1.
- 3Operating range of 30 mm to 350 mm with a limiting range of 350 mm.
- 4Fast response time of 32 ms and switching frequency of 25 Hz.
- 5Compact design with a male connector, M12, 5-pin, and IP65/67 protection class.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Operating range, limiting range | 30 mm ... 250 mm, 350 mm | Target | Natural objects |
Resolution | ≥ 0.069 mm | Repeatability | ± 0.15 % |
Measurement accuracy | ± 1 % | Temperature compensation | ✔ |
Response time | 32 ms | Switching frequency | 25 Hz |
Output time | 8 ms | Ultrasonic frequency (typical) | 320 kHz |
Additional function | Adjustable operating modes: Switching point (DtO) / Switching window/Background (ObSB), teach-in of digital output, invertible digital output, multifunctional input: external teach / synchronization / multiplexing, synchronization of up to 20 sensors, multiplexing: no cross talk of up to 20 sensors, reset to factory default | Safety-related parameters_MTTFD | 101 years |
Safety-related parameters_DCavg | 0% | IO-Link_Function | Process data, parameterization, diagnosis, data storage |
Digital output_Number | 21) | Digital output_Type | Push-pull: PNP/NPN |
Digital output_Maximum output current IA | ≤ 100 mA | Multifunctional input (MF) | 1 x MF |
Hysteresis | 3 mm | Supply voltage UB | DC 10 V ... 30 V |
Power consumption | ≤ 1.2 W | Initialization time | < 300 ms |
Indication | 2 x LED | Enclosure rating | IP65 / IP67 |
Protection class | III | Dimensions (W x H x D) | 18 mm x 18 mm x 52.7 mm |
Design | Cylindrical | Sending axis | Straight |
Housing material | Metal (nickel-plated brass, ultrasonic transducer: polyurethane foam, glass epoxy resin) | Weight | 25 g |
Thread size | M18 x 1 | Connection type | Male connector, M12, 5-pin |
