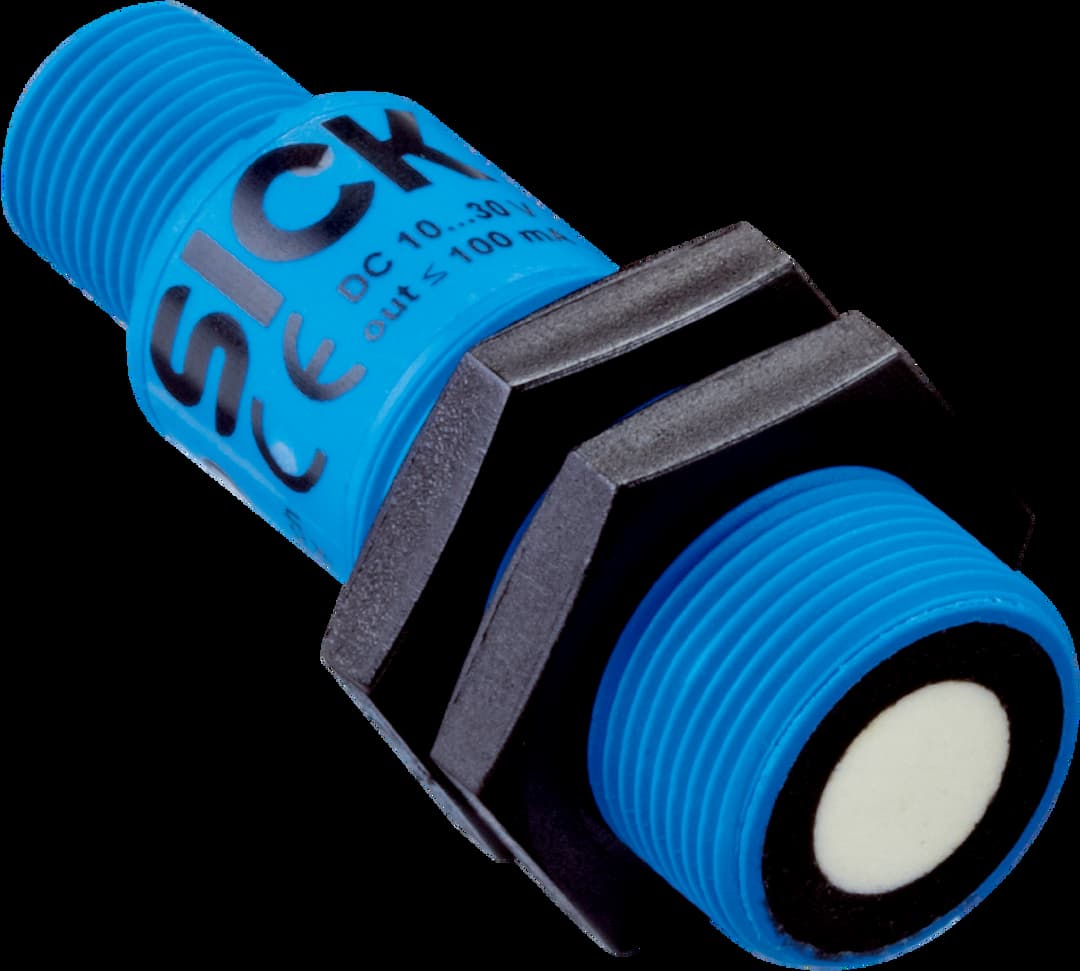

Product Model
UM18-211167101
Selling Points
- 1High accuracy with ±0.17% / K accuracy and ±0.15% repeatability.
- 2Versatile interfaces including digital and analog outputs for flexible integration.
- 3Robust design with IP67 protection class, ensuring durability in harsh environments.
- 4Easy maintenance with no need for regular calibration or adjustments.
- 5Wide operating temperature range from –25°C to +70°C for reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Operating range, limiting range | 30 mm ... 250 mm, 350 mm | Target | Natural objects |
Resolution | ≥ 0.2 mm | Repeatability | ± 0.15 % |
Measurement accuracy | ± 1 % | Response time | 32 ms |
Output time | 8 ms | Ultrasonic frequency (typical) | 320 kHz |
Detection area (typical) | See diagrams | Additional function | Teach-in of analog output#!#Invertable analog output#!#Reset to factory default |
Safety-related parameters_MTTFD | 101 years | Safety-related parameters_DCavg | 0% |
Analog output_Number | 1 | Analog output_Type | Voltage output |
Analog output_Voltage | 0 V ... 10 V, ≥ 100,000 Ω | Analog output_Resolution | 12 bit |
Supply voltage UB | DC 15 V ... 30 V | Power consumption | ≤ 1.2 W |
Initialization time | < 300 ms | Indication | 2 x LED |
Enclosure rating | IP65 / IP67 | Protection class | III |
Dimensions (W x H x D) | 18 mm x 18 mm x 52.7 mm | Design | Cylindrical |
Sending axis | Straight | Housing material | Plastic (PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin) |
Weight | 15 g | Thread size | M18 x 1 |
Connection type | Male connector, M12, 4-pin |
Specifications may be subject to change without notice
