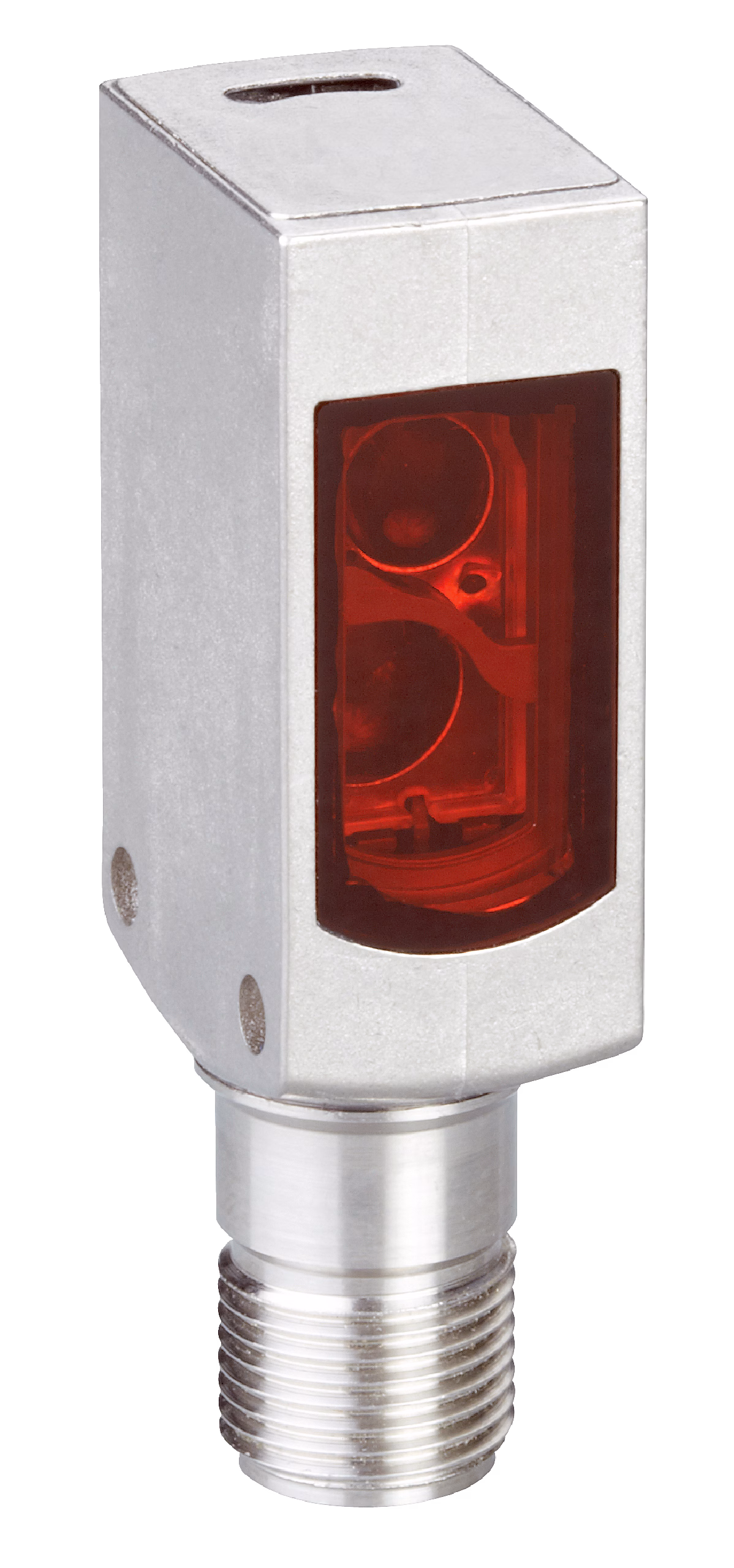

Product Model
WL4S-3P2430V
Selling Points
- 1Precise Detection: The WL4S-3P2430V features advanced photoelectric technology for accurate object detection.
- 2Robust Design: Built with a durable M8, 4-pin male connector and IP66/67/69K enclosure ratings for harsh environments.
- 3Flexible Settings: Tailor sensor settings to your application with adjustable parameters and advanced diagnostics.
- 4High User-Friendliness: Quick and easy commissioning and operation thanks to a large, user-friendly potentiometer.
- 5Future-Proof Solution: Enhance machine productivity with condition monitoring and adjustments, reducing unplanned downtimes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Functional principle | Photoelectric retro-reflective sensor | Functional principle detail | Without reflector minimum distance (autocollimation/coaxial optics) |
Sensing range max. | 0 m ... 4 m | Sensing range | 0 m ... 2.5 m |
Polarisation filters | Yes | Emitted beam_Light source | PinPoint LED2) |
Emitted beam_Type of light | Visible red light | Emitted beam_Light spot size (distance) | Ø 45 mm (1.5 m) |
Key LED figures_Wave length | 650 nm | Adjustment | None |
Special applications | Hygienic and washdown zones | Housing design | Washdown |
Supply voltage UB | 10 V DC ... 30 V DC | Ripple | < 5 V |
Current consumption | 30 mA | Protection class | III |
Digital output_Type | PNP | Digital output_Switching mode | Light/dark switching |
Digital output_Output current Imax. | ≤ 100 mA | Digital output_Response time | < 0.5 ms4) |
Digital output_Switching frequency | 1,000 Hz5) | Output function | Complementary |
Circuit protection | A, B, C | Housing | Rectangular |
Design detail | Slim | Dimensions (W x H x D) | 15.25 mm x 48.6 mm x 22.2 mm |
Connection | Male connector M12, 4-pin | Material_Housing | Stainless steel, Stainless steel V4A (1.4404, 316L) |
Material_Front screen | Plastic, PMMA | Weight | 60 g |
Specifications may be subject to change without notice
