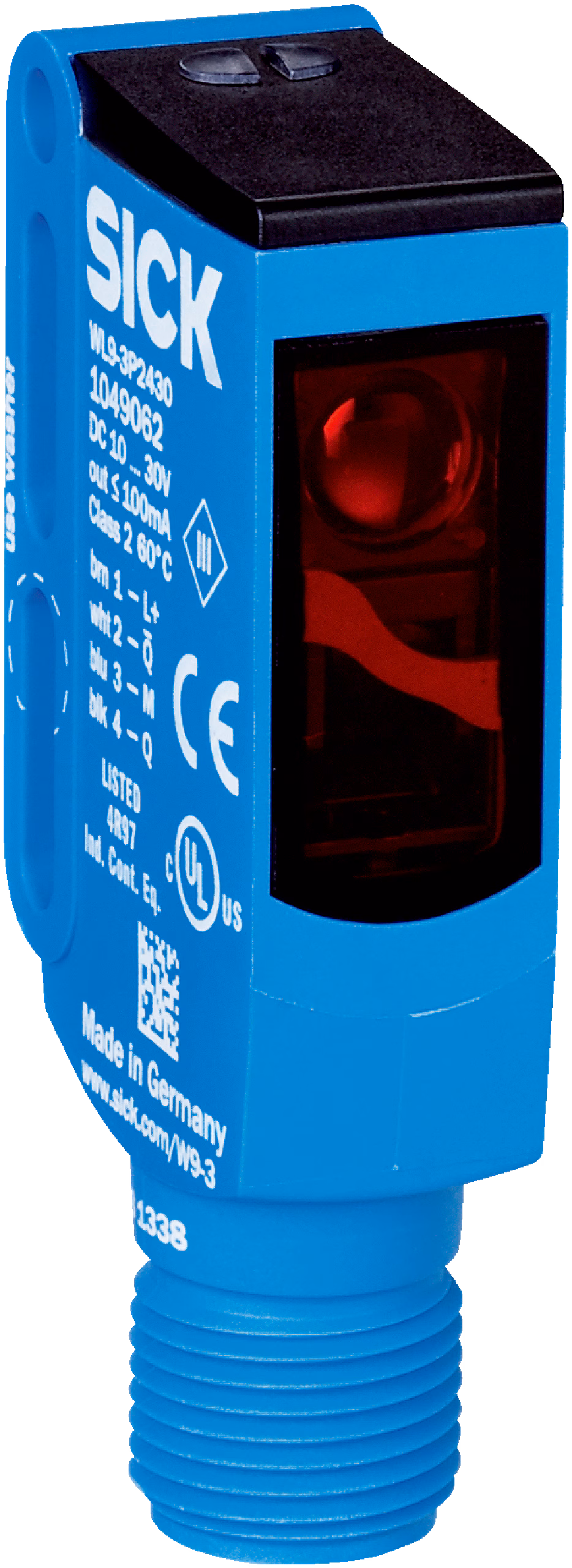

Product Model
WL9-3N2430
Selling Points
- 1Best-in-class performance: The WL9-3N2430 offers superior detection capabilities with its PinPoint LED and autocollimation optics.
- 2Durable housing: Made from VISTAL™ material, as tough as steel, ensuring high strength and leak-proof protection.
- 3Versatile mounting: Variable mounting with slotted holes for M3 or M4 screws, providing flexibility in installation.
- 4Wide optical options: Supports a variety of optical configurations to suit different application needs.
- 5High operational reliability: Detects objects with a high degree of reflection, including shiny and jet-black objects, ensuring reliable detection in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Functional principle | Photoelectric retro-reflective sensor | Functional principle detail | Without reflector minimum distance (autocollimation/coaxial optics) |
Dimensions (W x H x D) | 12.2 mm x 52.2 mm x 23.6 mm | Housing design (light emission) | Rectangular |
Mounting hole | M3 | Sensing range max. | 0 m ... 4 m |
Sensing range | 0 m ... 2.5 m | Type of light | Visible red light |
Light source | PinPoint LED | Light spot size (distance) | Ø 45 mm (1.5 m) |
Wave length | 650 nm | Adjustment | None |
Supply voltage UB | 10 V DC ... 30 V DC | Ripple | < 5 V |
Current consumption | 30 mA | Switching output | NPN |
Output function | Complementary | Switching mode | Light/dark switching |
Output current Imax. | ≤ 100 mA | Response time | < 0.5 ms |
Switching frequency | 1,000 Hz | Connection type | Male connector M12, 4-pin |
Circuit protection | A8)#!#B9)#!#C10) | Protection class | III |
Weight | 13 g | Polarisation filter | ✔ |
Housing material | Plastic, VISTAL® | Optics material | Plastic, PMMA |
Enclosure rating | IP66#!#IP67#!#IP69K | Ambient operating temperature | –40 °C ... +60 °C |
Ambient temperature, storage | –40 °C ... +75 °C | UL File No. | NRKH.E181493 |
Specifications may be subject to change without notice
