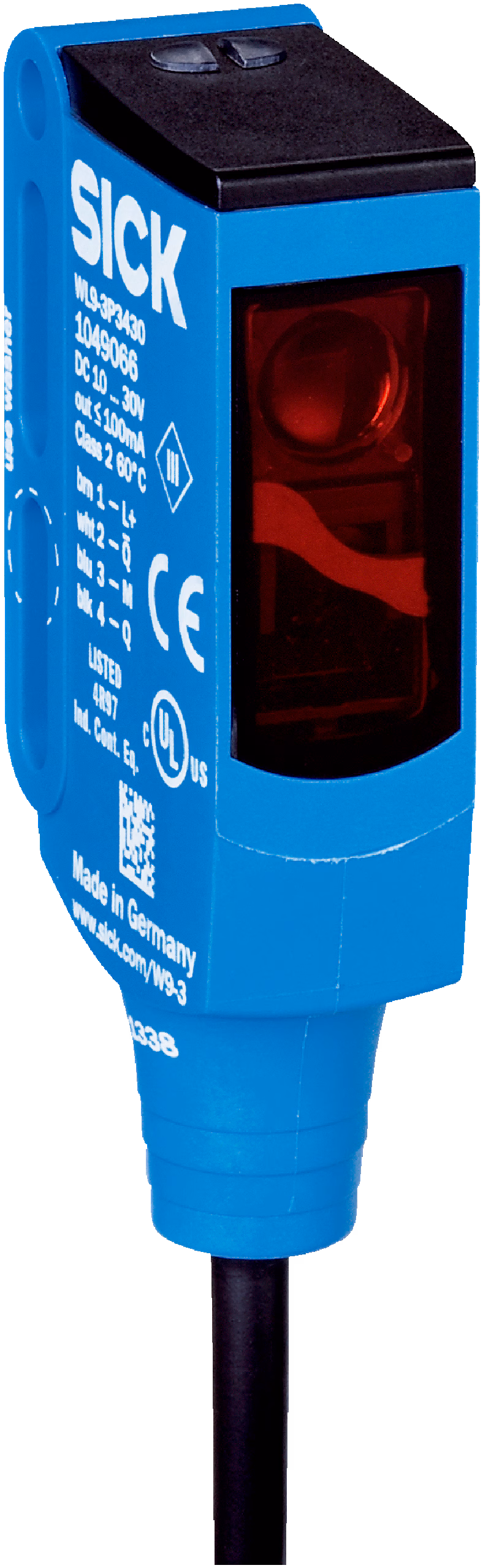

Product Model
WL9-3P3430S12
Selling Points
- 1High Precision Detection: Accurately detects objects with precise reflexive technology.
- 2Industrial Grade Reliability: Designed for heavy-duty industrial use with robust construction.
- 3Versatile Applications: Suitable for various industrial settings, including automation and robotics.
- 4Easy Integration: Simple installation and integration into existing systems.
- 5Enhanced Safety Features: Ensures safe operation with advanced safety protocols.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Functional principle | Photoelectric retro-reflective sensor | Functional principle detail | Without reflector minimum distance (autocollimation/coaxial optics) |
Dimensions (W x H x D) | 12.2 mm x 50 mm x 23.6 mm | Housing design (light emission) | Rectangular |
Mounting hole | M3 | Sensing range max. | 0 m ... 4 m |
Sensing range | 0 m ... 2.5 m | Type of light | Visible red light |
Light source | PinPoint LED | Light spot size (distance) | Ø 45 mm (1.5 m) |
Wave length | 650 nm | Adjustment | None |
Supply voltage UB | 10 V DC ... 30 V DC | Ripple | < 5 V |
Current consumption | 30 mA | Switching output | PNP |
Switching mode | Light switching | Output current Imax. | ≤ 100 mA |
Response time | < 0.5 ms | Switching frequency | 1,000 Hz |
Connection type | Cable with M12 male connector, 4-pin, 120 mm | Cable material | Plastic, PVC |
Conductor cross section | 0.14 mm² | Circuit protection | A9)#!#B10)#!#C11) |
Protection class | III | Weight | 80 g |
Polarisation filter | ✔ | Special device | ✔ |
Housing material | Plastic, VISTAL® | Optics material | Plastic, PMMA |
Enclosure rating | IP66#!#IP67#!#IP69K | Ambient operating temperature | –40 °C ... +60 °C |
Ambient temperature, storage | –40 °C ... +75 °C | UL File No. | NRKH.E181493 |
Specifications may be subject to change without notice
