Product Model

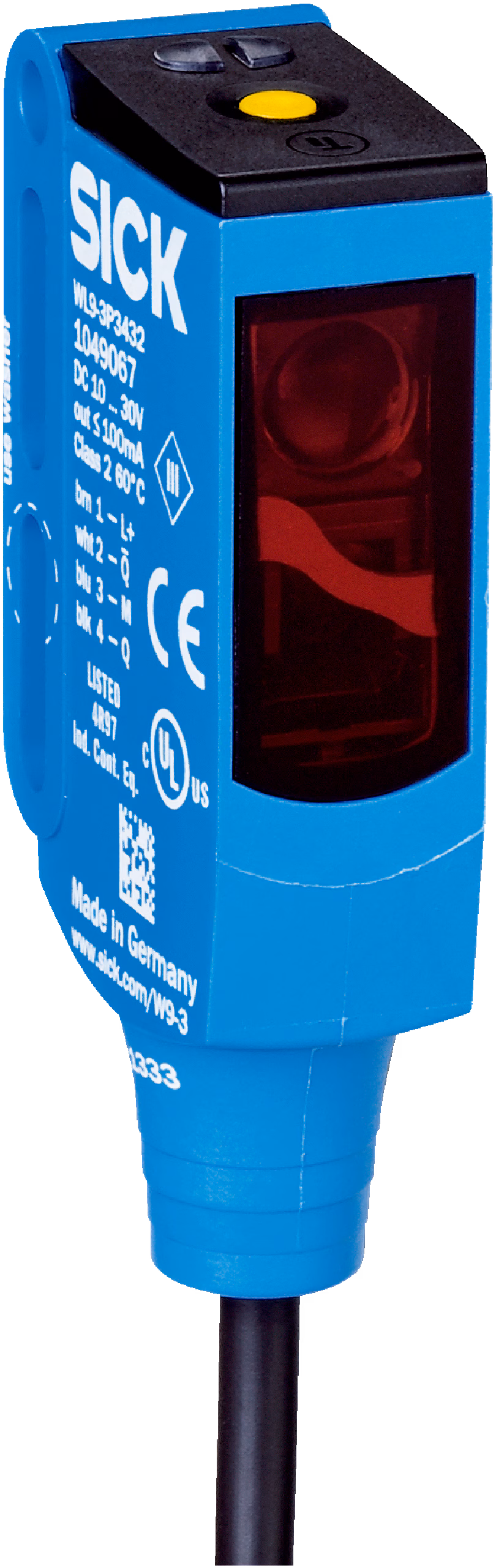

WL9G-3P3232
Selling Points
- 1Precise Detection: The WL9G-3P3232 offers high optical ambient light immunity, ensuring accurate switching behavior even in challenging light conditions.
- 2Robust Design: Built with a rugged housing, this sensor is designed to withstand harsh industrial environments and minimize machine downtime.
- 3Versatile Applications: Suitable for a wide range of applications including presence detection, overhang checks, and height checks of small objects.
- 4Easy Installation: Features a simple teach-in button and cable adjustment options for quick and convenient commissioning.
- 5High-Quality Manufacturing: Ensures reliable performance with high-quality sensor manufacturing and testing for mechanical ruggedness.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Functional principle | Photoelectric retro-reflective sensor | Functional principle detail | Without reflector minimum distance (autocollimation/coaxial optics) |
Dimensions (W x H x D) | 12.2 mm x 52.2 mm x 23.6 mm | Housing design (light emission) | Rectangular |
Mounting hole | M3 | Sensing range max. | 0 m ... 5 m |
Sensing range | 0 m ... 3 m | Type of light | Visible red light |
Light source | PinPoint LED | Light spot size (distance) | Ø 45 mm (1.5 m) |
Wave length | 650 nm | Adjustment | Single teach-in button |
AutoAdapt | ✔ | Special feature | Detecting transparent objects |
Special applications | Detecting transparent objects | Supply voltage UB | 10 V DC ... 30 V DC |
Ripple | < 5 V | Current consumption | 20 mA |
Switching output | PNP | Output function | Complementary |
Switching mode | Light/dark switching | Output current Imax. | ≤ 100 mA |
Response time | < 0.5 ms | Switching frequency | 1,000 Hz |
Connection type | Cable with M8 male connector, 4-pin, 200 mm | Cable material | Plastic, PVC |
Conductor cross section | 0.14 mm² | Circuit protection | A9)#!#B10)#!#C11) |
Protection class | III | Weight | 80 g |
Polarisation filter | ✔ | Housing material | Plastic, VISTAL® |
Optics material | Plastic, PMMA | Enclosure rating | IP66#!#IP67#!#IP69K |
Special feature | Detecting transparent objects | Ambient operating temperature | –40 °C ... +60 °C |
Ambient temperature, storage | –40 °C ... +75 °C | UL File No. | NRKH.E181493 |
Specifications may be subject to change without notice
