Product Model

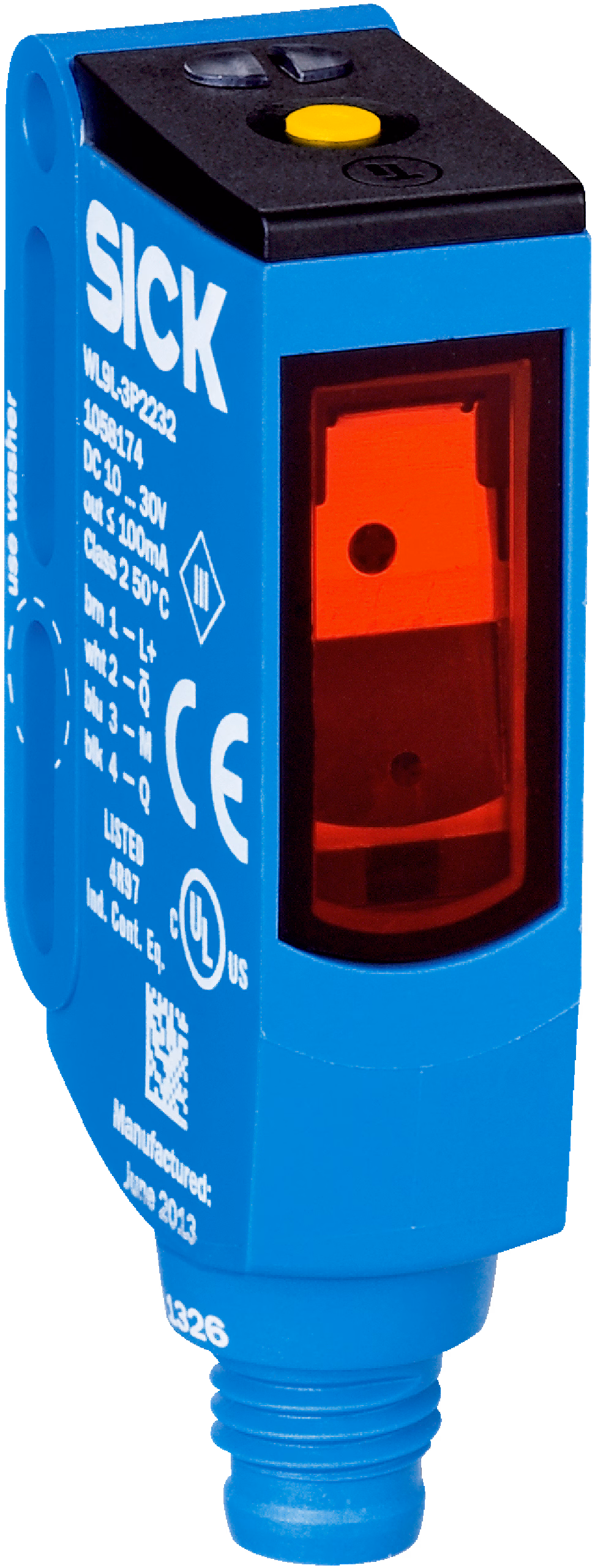

WL9L-3P2232
Selling Points
- 1Detects small objects and fine details with laser precision.
- 2Withstands mechanical stress and ambient light interference.
- 3Offers the longest sensing ranges in its class, up to 4.5 meters.
- 4Features autocollimation optics for reliable detection of transparent objects.
- 5Provides a wide range of connection options and multiple mounting configurations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Functional principle | Photoelectric retro-reflective sensor | Functional principle detail | Without reflector minimum distance (autocollimation/coaxial optics) |
Dimensions (W x H x D) | 12.2 mm x 49.8 mm x 23.6 mm | Housing design (light emission) | Rectangular |
Mounting hole | M3 | Sensing range max. | 0 m ... 12 m |
Sensing range | 0 m ... 8 m | Type of light | Visible red light |
Light source | Laser | Light spot size (distance) | Ø 1 mm (500 mm) |
Wave length | 650 nm | Laser class | 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11) |
Adjustment | Single teach-in button | Special applications | Detecting small objects |
Supply voltage UB | 10 V DC ... 30 V DC | Ripple | < 5 V |
Current consumption | 30 mA | Switching output | PNP |
Output function | Complementary | Switching mode | Light/dark switching |
Output current Imax. | ≤ 100 mA | Response time | ≤ 0.5 ms |
Switching frequency | 1,000 Hz | Connection type | Male connector M8, 4-pin |
Circuit protection | A7)#!#B8)#!#C9) | Protection class | III |
Weight | 13 g | Polarisation filter | ✔ |
Housing material | Plastic, VISTAL® | Optics material | Plastic, PMMA |
Enclosure rating | IP66#!#IP67#!#IP69K | Ambient operating temperature | –10 °C ... +50 °C |
Ambient operating temperature extended | –30 °C ... +55 °C | Ambient temperature, storage | –30 °C ... +70 °C |
UL File No. | NRKH.E181493 |
Specifications may be subject to change without notice
