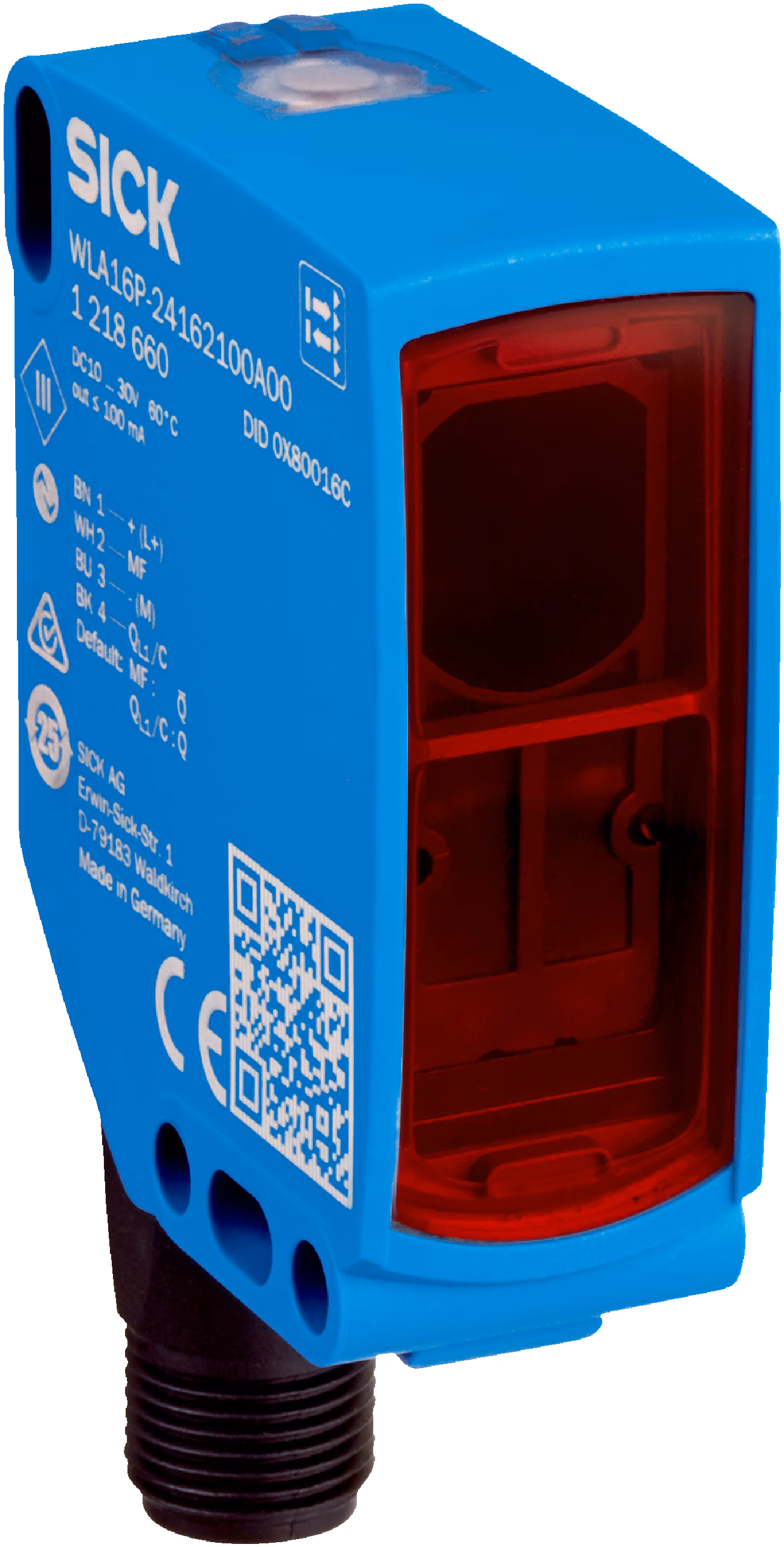

Product Model
WLG16P-2416H120A71
Selling Points
- 1Advanced Sensing Technology: Equipped with autocollimation and ClearSens for precise object detection.
- 2Smart Task Functionality: Configurable via IO-Link for customized sensor parameters and tasks.
- 3High Reliability: IP66, IP67, and IP69-rated for robust performance in harsh environments.
- 4Fast Response Time: ≤ 500 µs response time and ≤ 150 µs repeatability for quick and accurate detection.
- 5Versatile Connectivity: Male connector M12, 4-pin with reverse polarity and overcurrent protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Functional principle | Photoelectric retro-reflective sensor | Functional principle detail | Without reflector minimum distance (autocollimation/coaxial optics), ClearSens |
Sensing range_Sensing range min. | 0 m | Sensing range_Sensing range max. | 5 m |
Sensing range_Maximum distance range from reflector to sensor (operating reserve 1) | 0 m ... 5 m | Sensing range_Reference reflector | Reflector P250F |
Sensing range_Recommended sensing range for the best performance | 0 m ... 5 m | Polarisation filters | Yes |
Emitted beam_Light source | PinPoint LED | Emitted beam_Type of light | Visible red light |
Emitted beam_Shape of light spot | Point-shaped | Emitted beam_Light spot size (distance) | Ø 80 mm (5 m) |
Emitted beam_Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle) | < +/- 1.0° (at Ta = +23 °C) | Key LED figures_Normative reference | EN 62471:2008-09 | IEC 62471:2006, modified |
Key LED figures_LED risk group marking | Free group | Key LED figures_Wave length | 635 nm |
Key LED figures_Average service life | 100,000 h at Ta= +25 °C | Adjustment_Teach-Turn adjustment | BluePilot: Teach-in plus user mode selector |
Adjustment_IO-Link | For configuring the sensor parameters and Smart Task functions | Indication_LED blue | BluePilot: Mode display |
Indication_LED green | Operating indicatorStatic on: power onFlashing: IO-Link mode | Indication_LED yellow | Status of received light beamStatic on: object not presentStatic off: object present |
Special applications | Detecting transparent objects | IO-Link_Data transmission rate | COM2 (38,4 kBaud) |
IO-Link_Cycle time | 2.3 ms | IO-Link_Process data length | 16 Bit |
IO-Link_Process data structure | Bit 0 = switching signal QL1 | IO-Link | Bit 1 = switching signal QL2 |
IO-Link | Bit 2 ... 15 = empty | IO-Link_VendorID | 26 |
IO-Link_DeviceID HEX | 0x800172 | IO-Link_DeviceID DEC | 8388978 |
IO-Link_Compatible master port type | A | IO-Link_SIO mode support | Yes |
Supply voltage UB | 10 V DC ... 30 V DC | Ripple | ≤ 5 V |
Usage category | DC-12 (According to EN 60947-5-2)#!#DC-13 (According to EN 60947-5-2) | Current consumption | ≤ 30 mA, without load. At U#!#= 24 V |
Protection class | III | Digital output_Type | Push-pull: PNP/NPN |
Digital output_Signal voltage PNP HIGH/LOW | Approx. UB-2.5 V / 0 V | Digital output_Signal voltage NPN HIGH/LOW | Approx. UB/ < 2.5 V |
Digital output_Output current Imax. | ≤ 100 mA | Digital output_Circuit protection outputs | Reverse polarity protected |
Digital output | Overcurrent and short-circuit protected | Digital output_Response time | ≤ 500 µs2) |
Digital output_Repeatability (response time) | 150 µs | Digital output_Switching frequency | 1,000 Hz3) |
Pin/Wire assignment_Function of pin 4/black (BK) | Digital output, counter value < 10 → output QL1HIGH; IO-Link communication C | Pin/Wire assignment_Function of pin 4/black (BK) – detail | The pin 4 function of the sensor can be configured, Additional possible settings via IO-Link |
Pin/Wire assignment_Function of pin 2/white (WH) | Digital input, reset counter value (see document no. 8022709, 8021940) | Pin/Wire assignment_Function of pin 2/white (WH) – detail | The pin 2 function of the sensor can be configured, Additional possible settings via IO-Link |
Housing | Rectangular | Dimensions (W x H x D) | 20 mm x 55.7 mm x 42 mm |
Connection | Male connector M12, 4-pin | Material_Housing | Plastic, VISTAL® |
Material_Front screen | Plastic, PMMA | Material_Male connector | Plastic, VISTAL® |
Weight | Approx. 50 g | Maximum tightening torque of the fixing screws | 1.3 Nm |
Smart Task name | Counter + debouncing | Logic function | Direct#!#WINDOW#!#Hysteresis |
Timer function | Deactivated#!#Switch-on delay#!#Off delay#!#ON and OFF delay#!#Impulse (one shot) | Inverter | Yes |
Response time | — | Repeatability | — |
Maximum counting frequency | SIO Logic: 1000 µs2)#!#IOL: 650 Hz3) | Counter reset | SIO Logic: 1,5 ms#!#IOL: 1,5 ms |
Min. Time between two process events (switches) | SIO Logic: 500 µs#!#IOL: 800 µs | Debounce time max. | SIO Logic: 30.000 ms#!#IOL: 30.000 ms |
Switching signal_Switching signal QL1 | Output type (dependant on the adjusted threshold) | Measuring value | Counting value |
Device status | Yes | Quality of teach | Yes |
Quality of run | Yes, Contamination display |
Specifications may be subject to change without notice
