Product Model

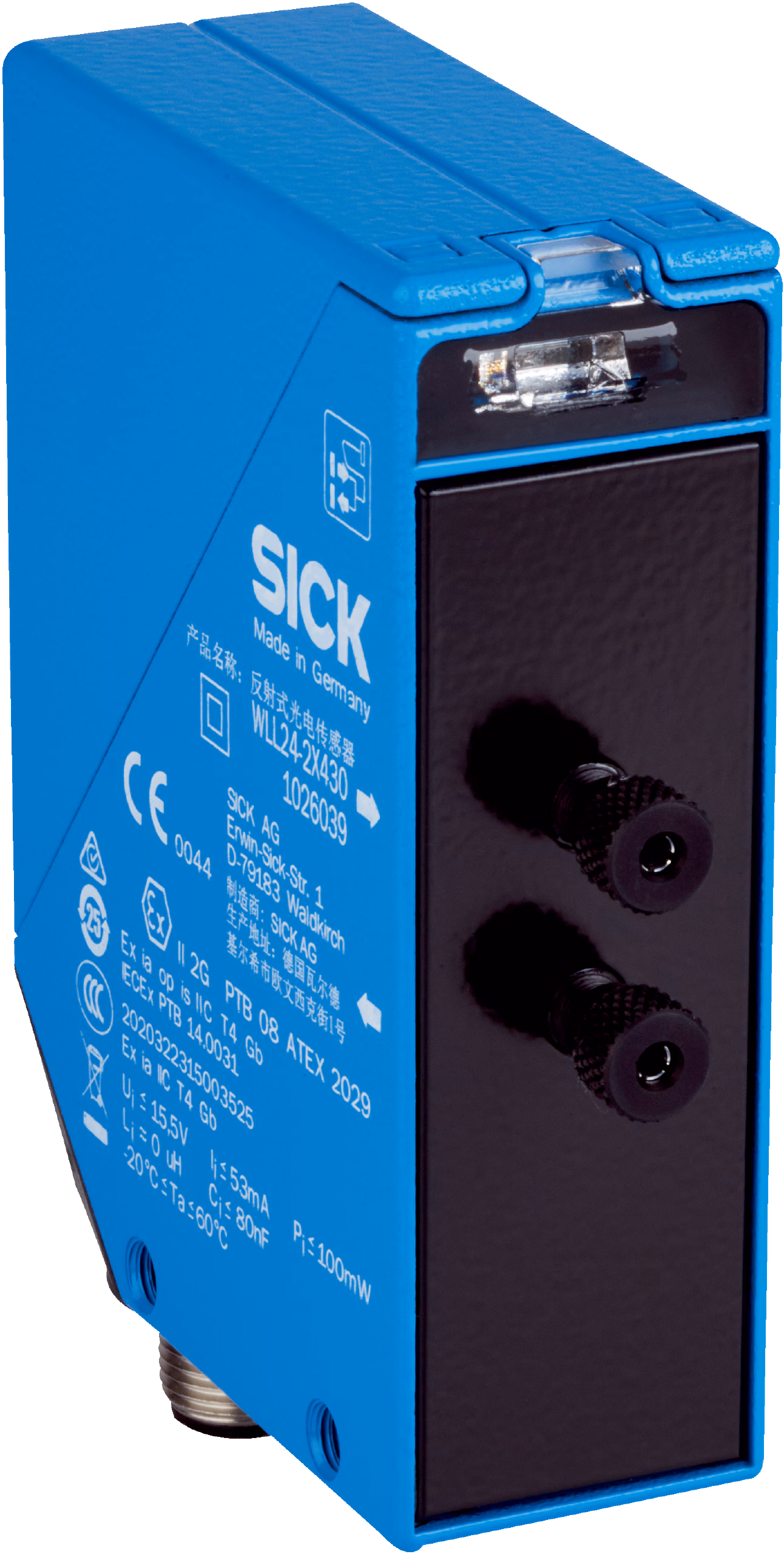

WLL24-2X430
Selling Points
- 1High accuracy detection in restricted spaces.
- 2Advanced fiber optic technology for reliable performance.
- 3Compact design for easy integration into various systems.
- 4Suitable for detecting small objects with precision.
- 5Durable construction for long-term reliability in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Device type | Fiber-optic sensors | Device type detail | Stand-alone |
Dimensions (W x H x D) | 27 mm x 87.5 mm x 74.7 mm | Housing design (light emission) | Rectangular |
Sensing range max. | 0 mm ... 40 mm1)#!#0 ″ ... 25 mm2)#!#0 ″ ... 10 mm3) | Sensing range | 0 mm ... 40 mm, Proximity system4)#!#0 ″ ... 1,000 mm, Through-beam system5)#!#0 ″ ... 100 mm, Through-beam system6) |
Type of light | Visible red light | Light source | LED |
Adjustment | Potentiometer | Indication | LED |
Supply voltage UB | 5 V DC ... 15.5 V DC | Ripple | ≤ 0.4 V |
Switching output | NAMUR | Switching mode | Light switching |
Response time | ≤ 10 ms | Switching frequency | 50 Hz |
Connection type | Male connector M12, 4-pin | Circuit protection | A6)#!#C7) |
Protection class | II | Weight | 330 g |
Housing material | Metal, zinc diecast | Enclosure rating | IP65 |
Type approval certificate | PTB 08 ATEX 2029 | ATEX marking | ATEX II 2G Ex ia op is IIC T4 Gb according to directive 2014/34/EU |
Ex area category | 2G | Input voltage Uimax. | ≤ 15.5 V |
Input power Pimax. | ≤ 100 mW | Input current Iimax. | ≤ 53 mA |
Internal capacitance Cimax. | 80 nF | Internal inductance Limax. | 0 µH |
Ambient operating temperature | –20 °C ... +60 °C | Ambient temperature, storage | –25 °C ... +70 °C |
Specifications may be subject to change without notice
