Product Model

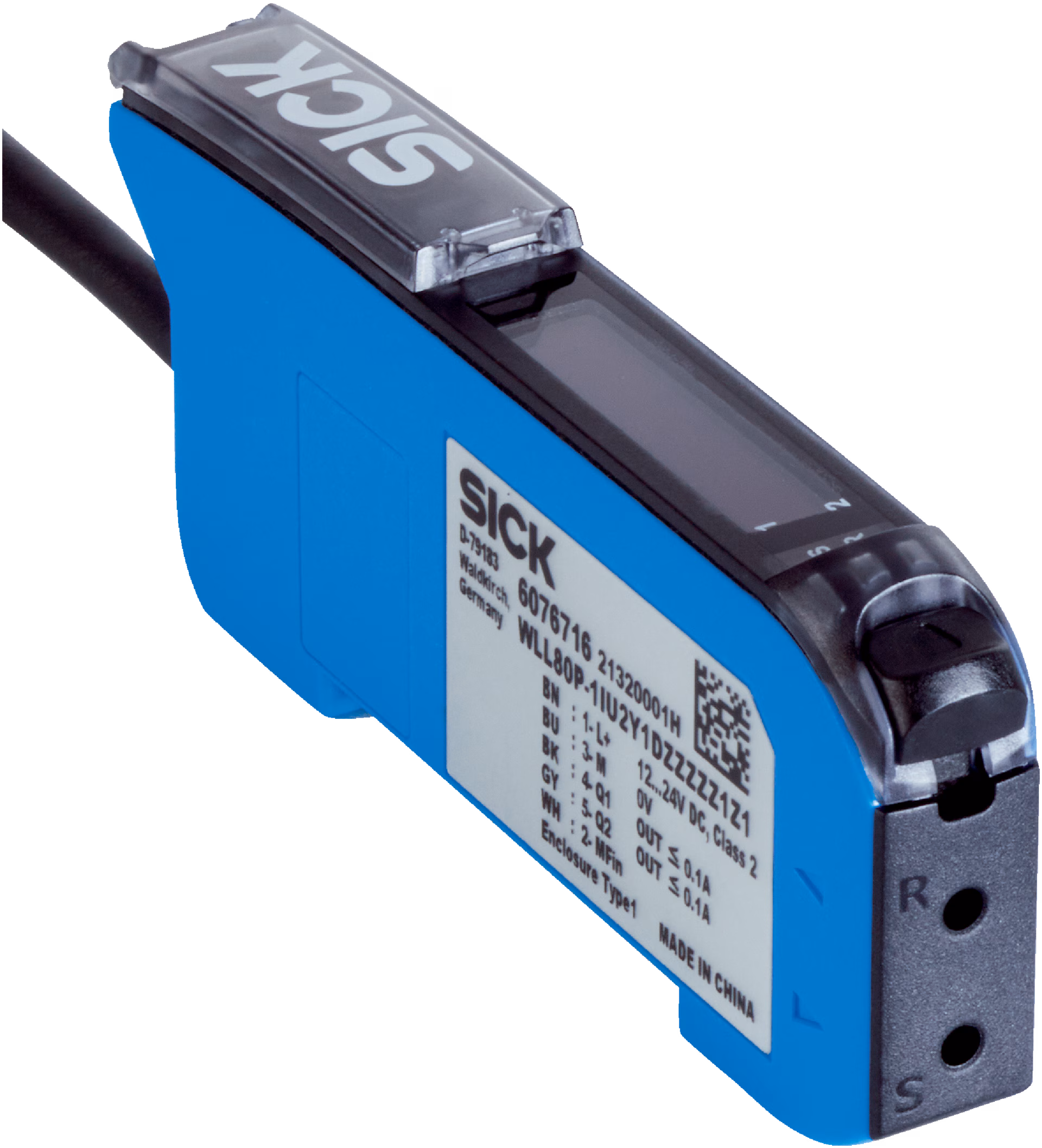

WLL80P-1IU2Y1DZZZZZ1Z1
Selling Points
- 1Detect objects with precision and accuracy.
- 2Easily configure sensor parameters via OLED display or IO-Link.
- 3Withstand harsh industrial environments.
- 4Average service life of 100,000 hours at +25°C.
- 5Suitable for a wide range of industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Device type | Fiber-optic sensors | Device type detail | Stand-alone |
Functional principle detail | Depends on the fiber used | Sensing range max. | Depends on the fiber used |
Emitted beam_Light source | LED | Emitted beam_Type of light | Visible red light |
Key LED figures_Normative reference | EN 62471:2008-09 | IEC 62471:2006, modified | Key LED figures_LED risk group marking | Free group |
Key LED figures_Wave length | 660 nm | Key LED figures_Average service life | 100,000 h at Ta= +25 °C |
Adjustment_Display + operating buttons | For configuring the sensor parameters | Indication_LED green | Operating indicatorStatic on: power on |
Indication_LED yellow 1 | Status of switching output 1Permanently on: Switching output 1 activePermanently off: Switching output 1 not activeFlashing: Executing teach-in/teach-in error | Indication_LED yellow 2 | Status of switching output 2Permanently on: Switching output 2 activePermanently off: Switching output 2 not activeFlashing: Executing teach-in/teach-in error |
Indication_Display | Display of sensor functions | Indication | OLED display |
Items supplied | BEF-WLL180 mounting bracket | IO-Link_Data transmission rate | COM3 (230.4 kbit/s) |
IO-Link_Cycle time | 0.5 ms | IO-Link_Process data length | 32 Bit |
IO-Link_Process data structure | Bit 0 = switching signal QL1 | IO-Link | Bit 1 = switching signal QL2 |
IO-Link | Bit 2 = detection signal Qint.1 | IO-Link | Bit 3 = detection signal Qint.2 |
IO-Link | Bit 16 ... 31 = Current receiver level (live) | IO-Link_Compatible master port type | A |
IO-Link_SIO mode support | Yes | Supply voltage UB | 12 V DC ... 30 V DC |
Ripple | ± 10 % | Current consumption | ≤ 50 mA |
Protection class | III | Digital output_Number | 2 (individually adjustable) |
Digital output_Type | Push-pull: PNP/NPN, PNP, NPN: open collector2) | Digital output_Signal voltage PNP HIGH/LOW | Approx. UB-2.5 V / 0 V |
Digital output_Signal voltage NPN HIGH/LOW | Approx. UB/ < 2.5 V | Digital output_Output current Imax. | ≤ 100 mA |
Digital output_Circuit protection outputs | Reverse polarity protected | Digital output | Overcurrent protected |
Digital output | Short-circuit protected | Digital output_Response time | ≤ 16 µs, ≤ 70 µs, ≤ 250 µs, ≤ 500 µs, ≤ 1,000 µs, ≤ 2,000 µs, ≤ 8,000 µs |
Digital output_Switching frequency | 31.2 kHz, 7.1 kHz, 2 kHz, 1 kHz, 500 Hz, 250 Hz, 62.5 Hz3) | Digital output_Time functions | Switch-on delay, off delay, ON and OFF delay, Impulse (one shot), Switch-on delay and pulse, deactivated |
Digital output_Delay time | Adjustment via operating buttons, 0 ms ... 30,000 ms | Digital input_Number | 1 |
Pin/Wire assignment_Function of pin 4/black (BK) | Switching output, object present → Q1 output HIGH | Pin/Wire assignment_Function of pin 2/white (WH) | Teach-in input |
Pin/Wire assignment_Function of pin 2/white (WH) – detail | The pin 2 function of the sensor can be configured | Pin/Wire assignment_Pin 5 function/gray (GY) | Switching output, object present → QL2output HIGH |
Pin/Wire assignment_Pin 5 function/gray (GY) – detail | The pin 5 function of the sensor can be configured | Housing | Rectangular |
Dimensions (W x H x D) | 10.5 mm x 33.2 mm x 79.9 mm | Connection | Cable, 5-wire, 2 m |
Connection detail_Deep-freeze property | Do not bend below 0 °C | Connection detail_Conductor size | 0.18 mm² |
Connection detail_Cable diameter | Ø 4 mm | Connection detail_Length of cable (L) | 2 m |
Material_Housing | Plastic, PC | Material_Cable | Plastic, PVC |
Weight | Approx. 76 g | Smart Task name | Counter + debouncing |
Logic function | Direct#!#WINDOW#!#Hysteresis | Timer function | Deactivated#!#Switch-on delay#!#Off delay#!#ON and OFF delay#!#Impulse (one shot)#!#Switch-on delay and pulse |
Inverter | Yes | Switching signal_Switching signal QL1 | Switching output |
Switching signal_Switching signal ǬL1 | Switching output | Quality of run | Yes |
Specifications may be subject to change without notice
