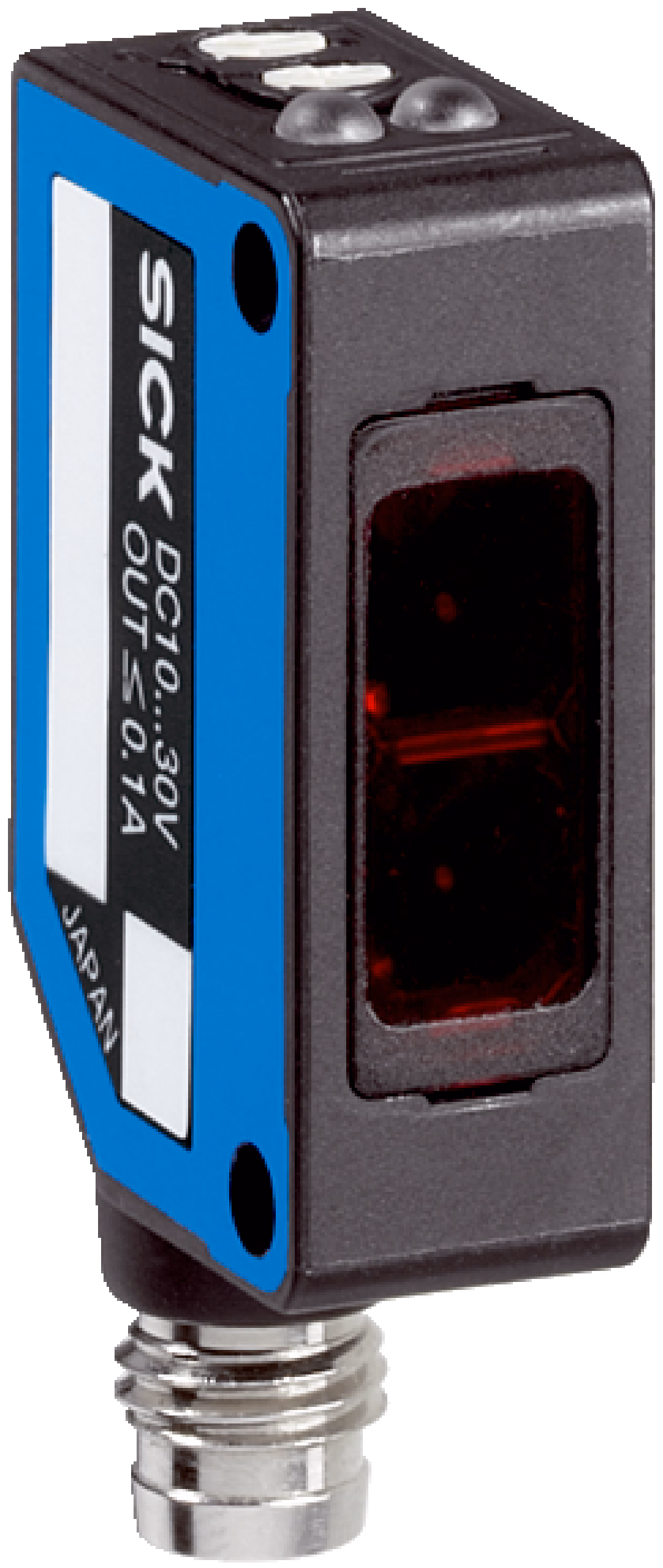

WT100L-F2241: Advanced Photoelectric Proximity Sensor by SICK

Selling Points

1High Sensitivity and Accuracy: Detects objects with 90% remission factor, ensuring precise detection.
2Adjustable Sensitivity: Potentiometer allows for 270° adjustment, ensuring optimal performance in various environments.
3Long Service Life: Average service life of 50,000 hours at +25°C, minimizing maintenance needs.
4Compact Design: Measures 11 mm x 31 mm x 20 mm, perfect for space-constrained applications.
5Versatile Applications: Suitable for detecting small objects and objects moving at high speeds, enhancing process efficiency.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Functional principle	Photoelectric proximity sensor	Functional principle detail	Energetic
Dimensions (W x H x D)	11 mm x 31 mm x 20 mm	Housing design (light emission)	Rectangular
Sensing range max.	0 mm ... 450 mm	Sensing range	0 mm ... 400 mm
Type of light	Visible red light	Light source	Laser
Light spot size (distance)	Ø 2 mm (400 mm)	Wave length	650 nm
Laser class	1	Adjustment	Potentiometer, 270°
Special applications	Detecting small objects, Detection of objects moving at high speeds	Supply voltage UB	10 V DC ... 30 V DC
Ripple	± 10 %	Current consumption	30 mA
Switching output	PNP	Switching mode	Light/dark switching
Switching mode selector	Selectable via light/dark rotary switch	Signal voltage PNP HIGH/LOW	U#!#- 1,8 V / ca. 0 V
Output current Imax.	≤ 100 mA	Response time	< 0.25 ms
Switching frequency	2,000 Hz	Connection type	Male connector M8, 4-pin
Circuit protection	A6)#!#B7)#!#D8)	Weight	10 g
Housing material	Plastic, ABS/PC	Optics material	Plastic, PMMA
Enclosure rating	IP65	Items supplied	Stainless steel mounting bracket (1.4301/304) BEF-W100-A
Ambient operating temperature	–10 °C ... +50 °C	Ambient temperature, storage	–40 °C ... +70 °C

Specifications may be subject to change without notice
