Product Model

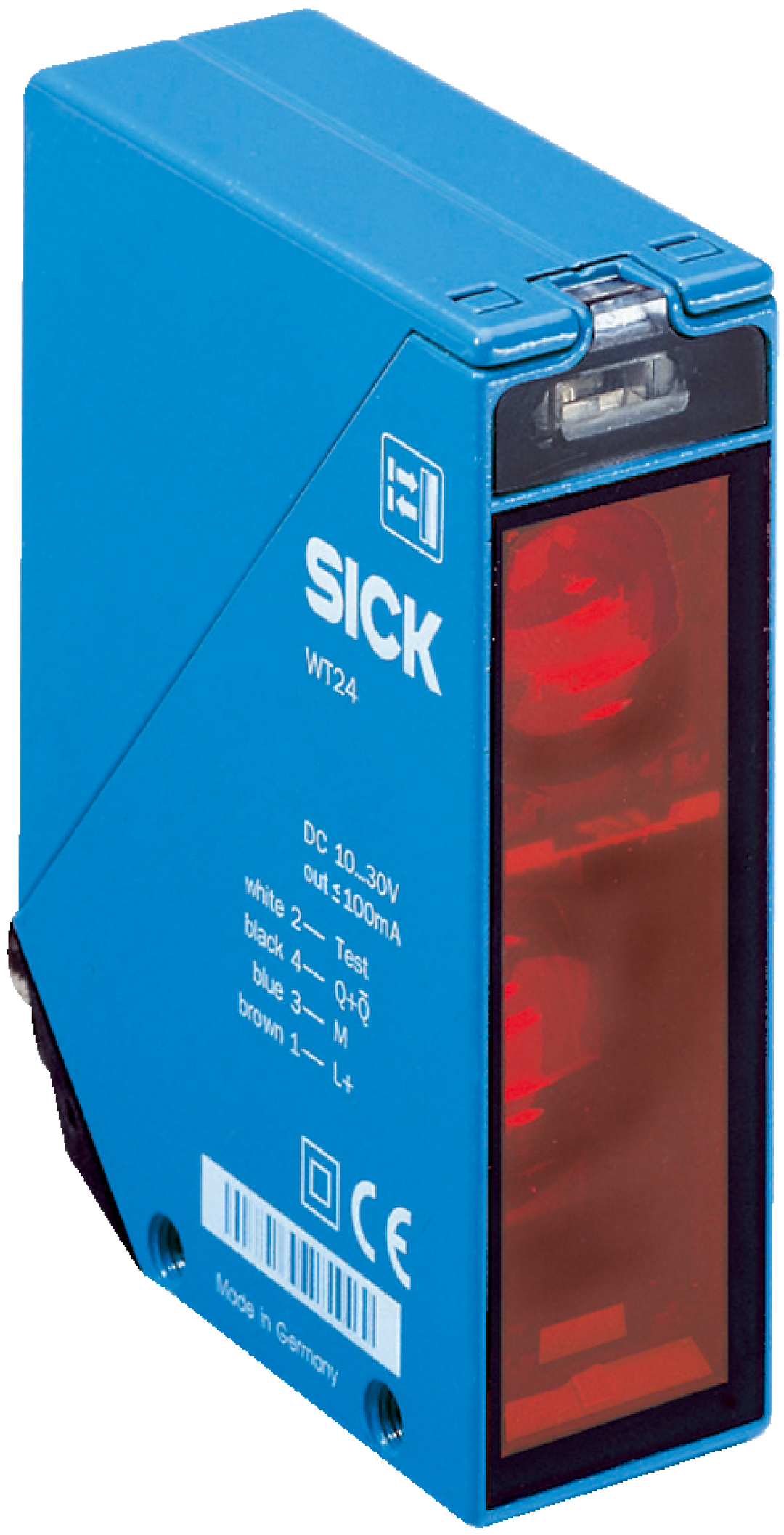

WT24-2R210
Selling Points
- 1Long-range detection up to 2500mm.
- 2Rugged metal housing with IP 69K protection.
- 3High ambient light immunity and switchable PNP/NPN and light/dark switching.
- 4DC or AC/DC type with UL approval and multiple connectivity options.
- 5Optional features include test input, time delays, contamination signaling, and front-screen heating.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Functional principle | Photoelectric proximity sensor | Functional principle detail | Background suppression |
Dimensions (W x H x D) | 27 mm x 87.5 mm x 65 mm | Housing design (light emission) | Rectangular |
Sensing range max. | 100 mm ... 2,500 mm | Sensing range | 100 mm ... 2,500 mm |
Type of light | Infrared light | Light source | LED |
Light spot size (distance) | Ø 80 mm (2,500 mm) | Adjustment | Potentiometer |
Supply voltage UB | 20 V AC/DC ... 250 V AC/DC | Power consumption | < 2 VA |
Switching output | Relay, electrically isolated | Output function | Change-over contacts |
Switching mode | Light/dark switching | Switching mode selector | Selectable via light/dark selector |
Switching current (switching voltage) | 4 A @ 250 V AC, 4 A @ 24 V DC, 0.125 A @ 250 V DC#!#UL: 4 A @ 250 V AC, general use / 4 A @ 250 V AC, resistive (NO) / 3 A @ 250 V AC, resistive (NC) / 4 A @ 24 V DC, NO, general use / 3 A @ 24 V DC, NC, general use / R300 / B300 (NO contacts only) | Response time | ≤ 10 ms |
Switching frequency | 10 Hz | Connection type | Terminal connection with M16 gland |
Circuit protection | A3)#!#C4) | Protection class | II |
Weight | 330 g | Housing material | Metal, zinc diecast |
Optics material | Plastic, PMMA | Enclosure rating | IP67 |
Ambient operating temperature | –40 °C ... +60 °C | Ambient temperature, storage | –40 °C ... +75 °C |
Specifications may be subject to change without notice
