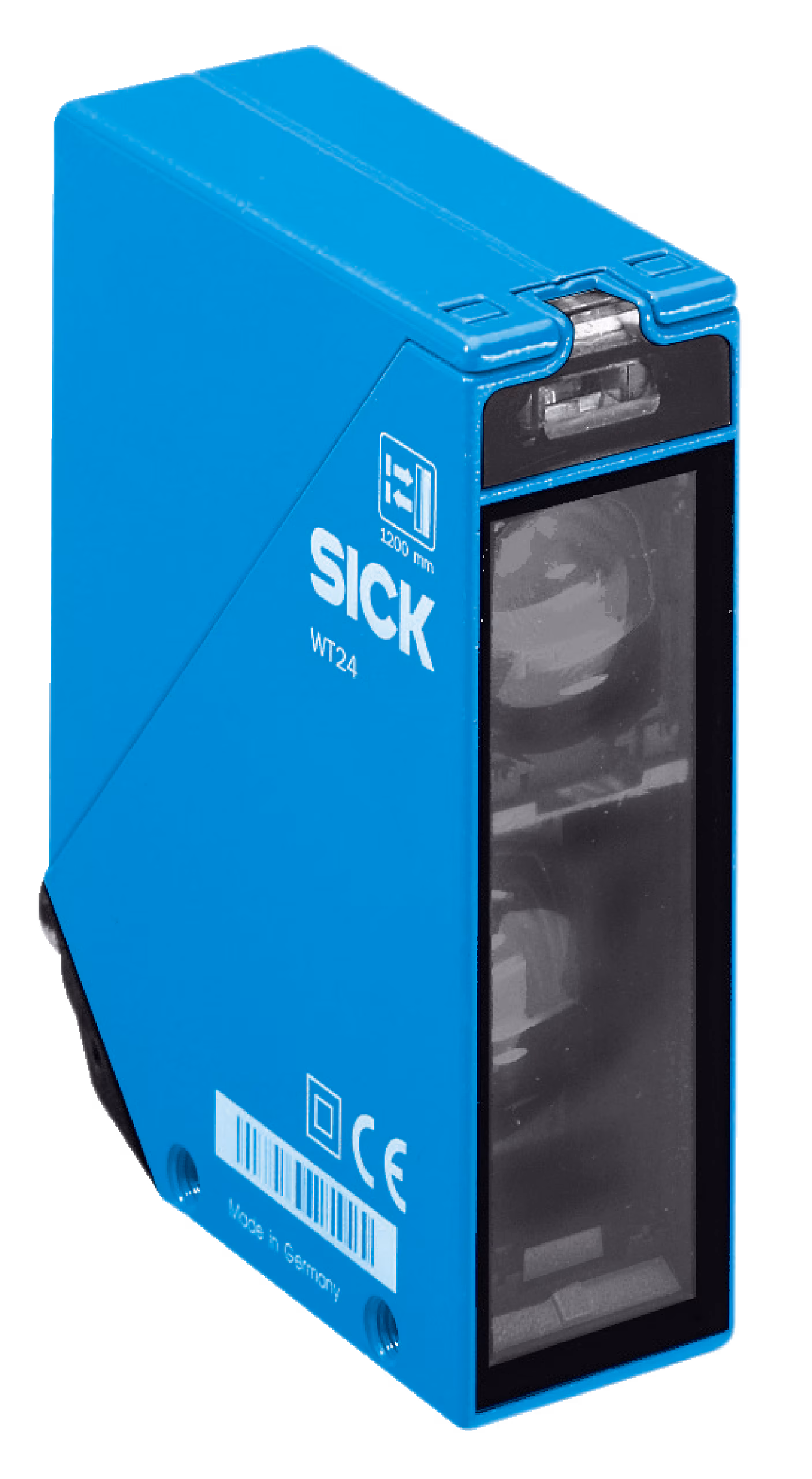

Product Model
WT24-2R548
Selling Points
- 1Detect objects accurately even in complex backgrounds.
- 2Operate effectively in environments with varying light conditions.
- 3Customize detection distances from 100 mm to 1,200 mm.
- 4Choose between PNP or NPN output for versatile integration.
- 5Durable metal housing with IP 69K rating ensures long service life.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Functional principle | Photoelectric proximity sensor | Functional principle detail | Background suppression |
Dimensions (W x H x D) | 27 mm x 87.5 mm x 65 mm | Housing design (light emission) | Rectangular |
Sensing range max. | 100 mm ... 1,200 mm | Sensing range | 100 mm ... 1,200 mm |
Type of light | Visible red light | Light source | LED |
Light spot size (distance) | Ø 40 mm (1,200 mm) | Adjustment | Potentiometer |
Supply voltage UB | 20 V AC/DC ... 250 V AC/DC | Power consumption | < 2 VA |
Switching output | Relay, electrically isolated | Output function | Change-over contacts |
Switching mode | Light/dark switching | Switching mode selector | Selectable via light/dark selector |
Switching current (switching voltage) | 2,5 A @ 250 V AC, 2,5 A @ 24 V DC, 0,125 A @ 250 V DC | Response time | ≤ 10 ms |
Switching frequency | 10 Hz | Connection type | Mini connector 7/8", 5-pin |
Circuit protection | A3)#!#C4) | Protection class | II |
Weight | 330 g | Housing material | Metal, zinc diecast |
Optics material | Plastic, PMMA | Enclosure rating | IP67 |
Ambient operating temperature | –40 °C ... +60 °C | Ambient temperature, storage | –40 °C ... +75 °C |
Specifications may be subject to change without notice
