Product Model

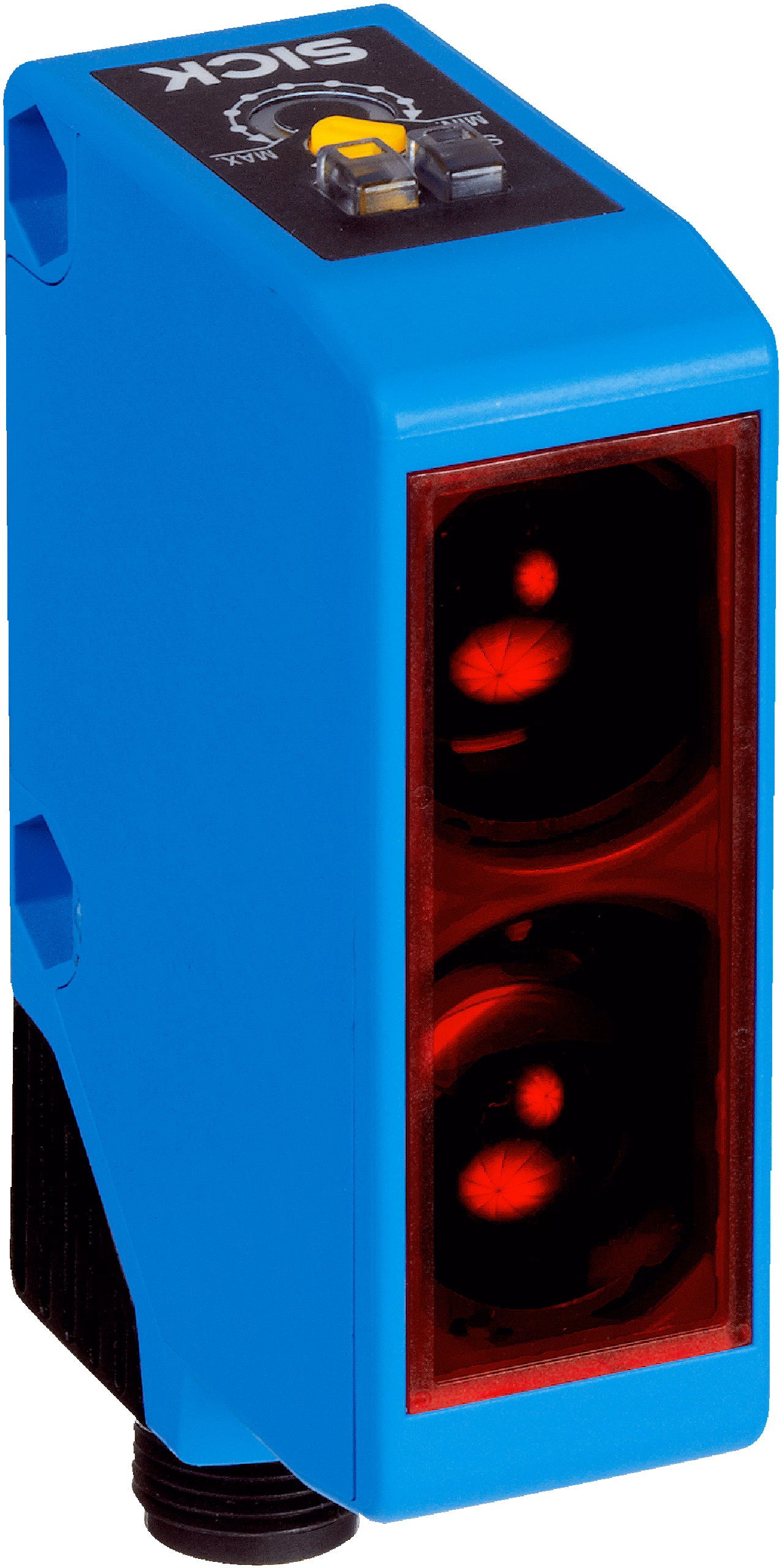

WTB250-2P2431
Selling Points
- 1Compact design with a sensing range of 100 mm to 300 mm.
- 2Background suppression detection principle for accurate sensing.
- 3PNP output with light/dark switching mode for versatile applications.
- 4LED light source with adjustable sensitivity via potentiometer.
- 5IP67 rating for robust and reliable performance in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Functional principle | Photoelectric proximity sensor | Functional principle detail | Background suppression |
Dimensions (W x H x D) | 20 mm x 65 mm x 43.9 mm | Housing design (light emission) | Rectangular |
Sensing range max. | 100 mm ... 300 mm | Sensing range | 100 mm ... 300 mm |
Focus | Approx. 3° | Type of light | Visible red light |
Light source | LED | Light spot size (distance) | Ø 30 mm (300 mm) |
Angle of dispersion | Approx. 3° | Adjustment | Potentiometer, 2 turns#!#Potentiometer, 2 rotations |
Supply voltage UB | 10 V DC ... 30 V DC | Ripple | < 5 V |
Current consumption | 35 mA | Switching output | PNP |
Switching mode | Light/dark switching | Switching mode selector | Selectable via L/D control cable |
Output current Imax. | ≤ 100 mA | Response time | ≤ 3 ms |
Switching frequency | 160 Hz | Connection type | Male connector M12, 4-pin |
Circuit protection | A7)#!#B8)#!#C9)#!#D10) | Protection class | III |
Weight | 40 g | Housing material | Plastic, ABS |
Optics material | Plastic, PMMA | Enclosure rating | IP67 |
Items supplied | BEF-W250 mounting bracket | Electromagnetic compatibility (EMC) | EN 60947-5-2 |
Ambient operating temperature | –25 °C ... +55 °C | Ambient temperature, storage | –40 °C ... +70 °C |
UL File No. | NRKH2.E300503 & NRKH8.E300503 |
Specifications may be subject to change without notice
