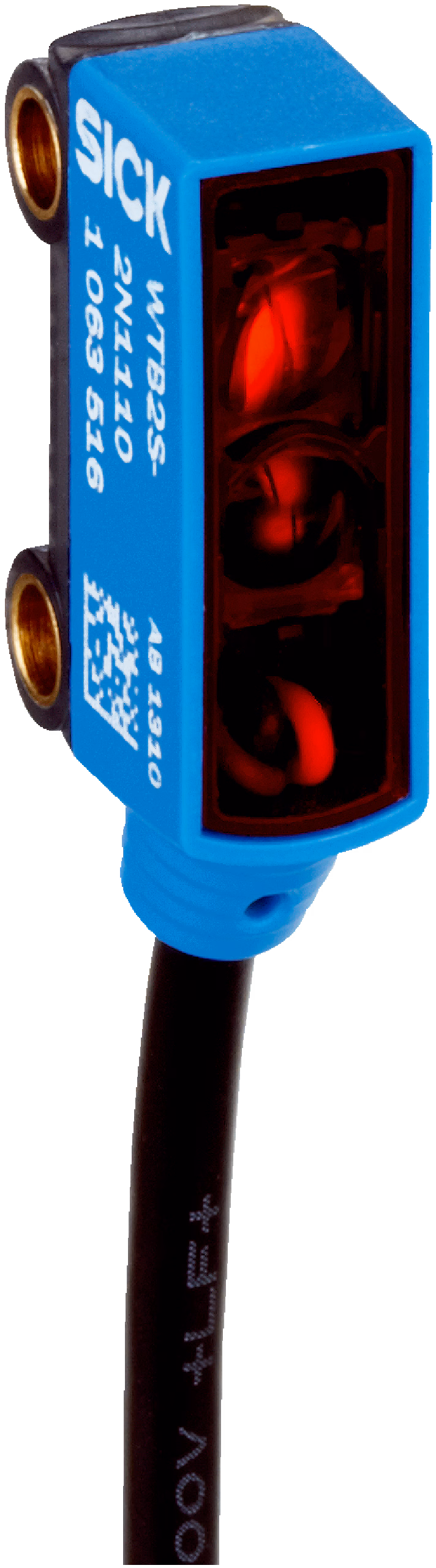

Product Model
WTB2S-2P1360
Selling Points
- 1High accuracy in detecting objects with precise sensing ranges.
- 2Durable design with robust housing materials for long-lasting performance.
- 3Versatile applications in various industries including manufacturing and logistics.
- 4Easy adjustment with a 270-degree potentiometer for optimal settings.
- 5Reliable operation with a high Mean Time To Failure (MTTFD) of 1,431 years.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Functional principle | Photoelectric proximity sensor | Functional principle detail | Background suppression |
Dimensions (W x H x D) | 7.7 mm x 21.8 mm x 13.5 mm | Housing design (light emission) | Rectangular |
Sensing range max. | 1 mm ... 66 mm | Sensing range | 5 mm ... 60 mm |
Background suppression typ. from | 70 mm | Type of light | Visible red light |
Light source | PinPoint LED | Light spot size (distance) | Ø 4.5 mm (40 mm) |
Wave length | 640 nm | Adjustment | None |
Special applications | Detecting small objects | Supply voltage UB | 10 V DC ... 30 V DC |
Ripple | < 5 V | Current consumption | 20 mA |
Switching output | PNP | Switching mode | Light switching |
Output current Imax. | ≤ 50 mA | Response time | < 0.5 ms |
Switching frequency | 1,000 Hz | Connection type | Cable, 3-wire, 2 m |
Cable material | Plastic, PVC | Conductor cross section | 0.09 mm² |
Cable diameter | Ø 3 mm | Circuit protection | A7)#!#B8)#!#D9) |
Housing material | Plastic, ABS/PC | Optics material | Plastic, PMMA |
Enclosure rating | IP67 | Ambient operating temperature | –25 °C ... +50 °C |
Ambient temperature, storage | –40 °C ... +75 °C | UL File No. | NRKH.E181493 |
Specifications may be subject to change without notice
