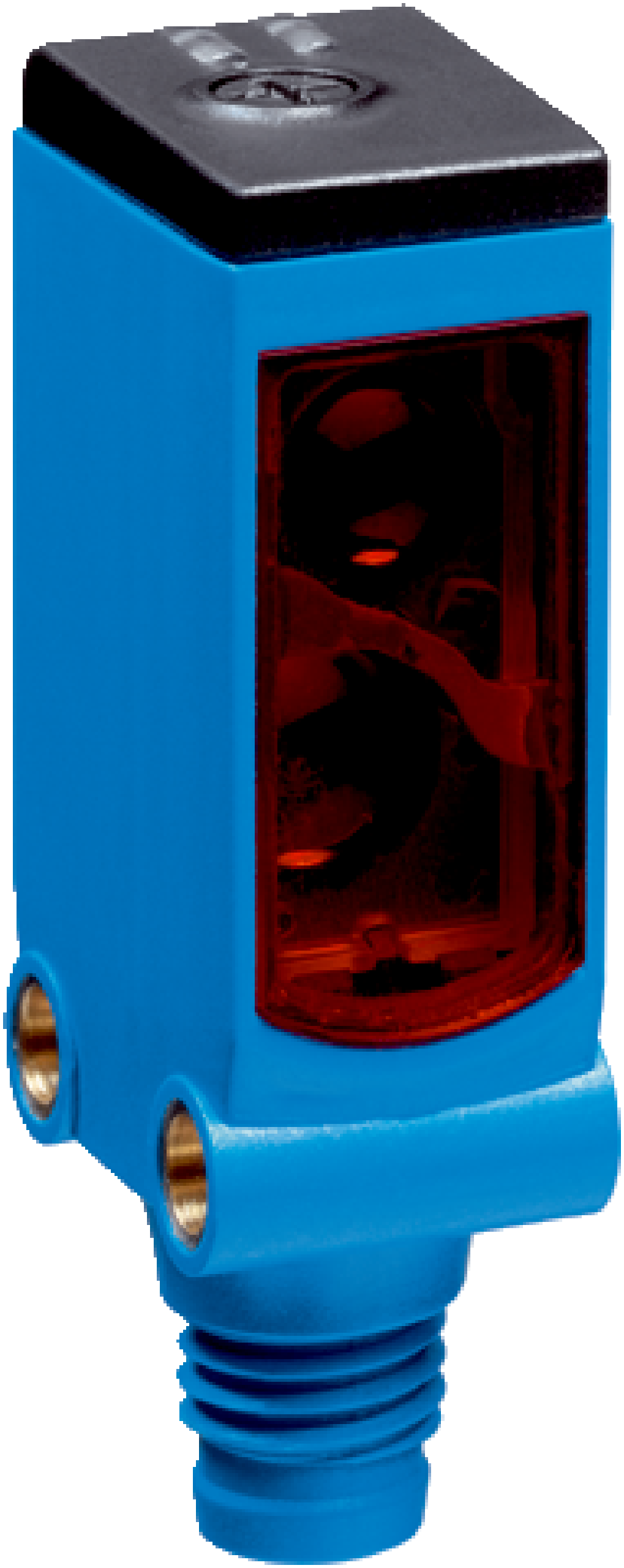

Product Model
WTB4S-3P3462
Selling Points
- 1High Accuracy Detection: Detects glossy, flat, uneven, perforated, and transparent objects with precision.
- 2Durable Design: Built with rugged materials for reliable operation in harsh industrial environments.
- 3Versatile Applications: Suitable for a wide range of applications due to various housing materials and light sources.
- 4Intuitive Operation: Easy commissioning and operation with smart sensors and innovative diagnostic functions.
- 5IP66 to IP69K Rating: Ensures protection against dust and water, making it suitable for demanding industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Functional principle | Photoelectric proximity sensor | Functional principle detail | Background suppression |
Sensing range max. | 4 mm ... 180 mm | Sensing range | 10 mm ... 180 mm |
Emitted beam_Light source | PinPoint LED2) | Emitted beam_Type of light | Visible red light |
Emitted beam_Light spot size (distance) | Ø 6.5 mm (150 mm) | Key LED figures_Wave length | 650 nm |
Adjustment | Single teach-in button | Supply voltage UB | 10 V DC ... 30 V DC |
Ripple | < 5 V | Current consumption | 20 mA |
Protection class | III | Digital output_Type | PNP |
Digital output_Switching mode | Light/dark switching | Digital output_Output current Imax. | ≤ 100 mA |
Digital output_Response time | < 0.5 ms4) | Digital output_Switching frequency | 1,000 Hz5) |
Circuit protection | A6)#!#C7)#!#D8) | Housing | Rectangular |
Design detail | Slim | Dimensions (W x H x D) | 12.2 mm x 41.8 mm x 17.3 mm |
Connection | Cable with M12 male connector, 4-pin | Connection detail_Conductor size | 0.14 mm² |
Connection detail_Cable diameter | Ø 3.4 mm | Connection detail_Length of cable (L) | 150 mm1) |
Material_Housing | Plastic, ABS | Material_Front screen | Plastic, PMMA |
Material_Cable | Plastic, PVC | Weight | 30 g |
Specifications may be subject to change without notice
