Product Model

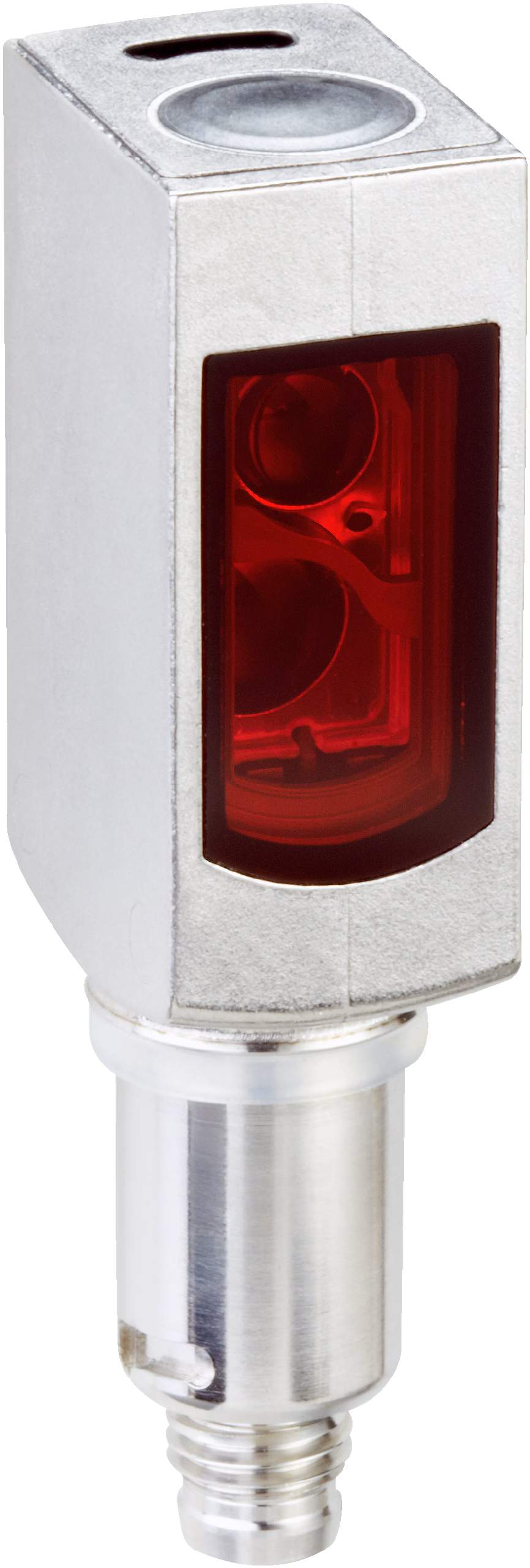

WTB4S-3P5262H
Selling Points
- 1High Accuracy: Precise detection with a response time of less than 0.5 ms.
- 2Background Suppression: Effective in hygienic and washdown zones with 90% reflectance on standard white surfaces.
- 3Durable Construction: Built with stainless steel housing and plastic optics for long service life.
- 4Wide Sensing Range: Detects objects from 4 mm to 500 mm with adjustable teach-in button.
- 5IP66 to IP69K Rating: Ensures reliable operation in harsh environments with an IP66 to IP69K rating.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Functional principle | Photoelectric proximity sensor | Functional principle detail | Background suppression |
Sensing range max. | 4 mm ... 500 mm | Sensing range | 10 mm ... 350 mm |
Emitted beam_Light source | PinPoint LED2) | Emitted beam_Type of light | Visible red light |
Emitted beam_Light spot size (distance) | Ø 6.5 mm (150 mm) | Key LED figures_Wave length | 650 nm |
Adjustment | Single teach-in button | Special applications | Hygienic and washdown zones |
Housing design | Hygiene | Supply voltage UB | 10 V DC ... 30 V DC |
Ripple | < 5 V | Current consumption | 30 mA |
Protection class | III | Digital output_Type | PNP |
Digital output_Switching mode | Light/dark switching | Digital output_Output current Imax. | ≤ 100 mA |
Digital output_Response time | < 0.5 ms4) | Digital output_Switching frequency | 1,000 Hz5) |
Output function | Complementary | Circuit protection | A, B, C |
Special feature | D12 adapter shaft | Housing | Rectangular |
Design detail | Slim | Dimensions (W x H x D) | 15.25 mm x 63.2 mm x 22.15 mm |
Connection | Male connector M8, 4-pin | Material_Housing | Stainless steel, Stainless steel V4A (1.4404, 316L) |
Material_Front screen | Plastic, PMMA | Weight | 140 g |
Specifications may be subject to change without notice
